2 EasyCoder PX4i and PX6i Service Manual
Chapter 1 — Models and Options
1.1 Identification
Main Models
The EasyCoder PX4i and PX6i constitute a series of direct thermal/thermal
transfer printers, which can run either Intermec Fingerprint Programming
Language (FP) v8.30 (or later) or Intermec Programming Language (IPL)
v2.30 or later. Externally, the difference is visible on the keyboard overlay.
Fingerprint printers have 23 keys or a full alphanumeric keyboard and IPL
printers have 8 keys (see Chapter 2).
EasyCoder PX4i has a maximum print width of 112 mm (4.4 in).
EasyCoder PX6i has a maximum print width of 167.4 mm (6.59 in).
Printers running Fingerprint are available with an 8 dots/mm (203.2 dpi)
or 11.81 dots/mm (300 dpi) printhead density, whereas printers running
IPL only are available with an 8 dots/mm (203.2 dpi) printhead.
A number of options and accessories, such as cutter, internal liner takeup,
label taken sensor, and various types of interface boards, allow the printers
to be tailor-made or adapted for specifi c applications.

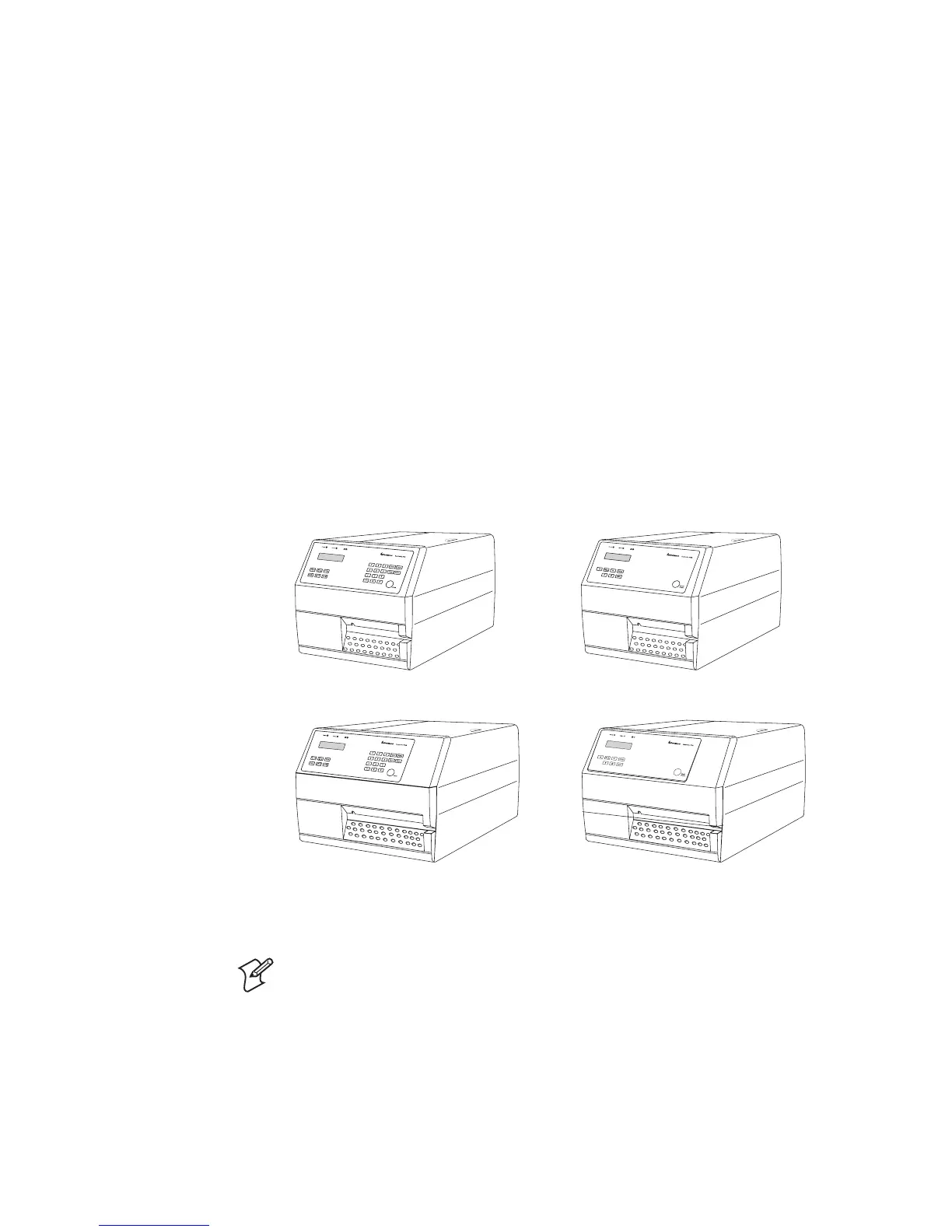

EasyCoder PX4i
Fingerprint model
EasyCoder PX4i
IPL model
EasyCoder PX6i
Fingerprint model
EasyCoder PX6i
IPL model
Note: Unless otherwise stated, illustrations in this manual show an Easy-
Coder PX4i running Intermec Fingerprint.

Intermec EasyCoder PX6i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	170 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	335 mm
Weight	14800 g
