126 EasyCoder PX4i and PX6i Service Manual
Chapter 12 — Electronics Compartment
12.1 Introduction
The Electronics Compartment is off limits to the normal user, but for the
authorized service technician, it contains a number of parts of great inter-
est:
The stepper motor and timing belts of the platen roller and ribbon
rewind unit.
The stepper motor and belts of the optional liner/batch takeup unit.
The headlift mechanism and sensor.
• The CPU board.
• The driver board.
The power supply unit.
Optionally one or two extra interface boards and/or one EasyLAN
board.

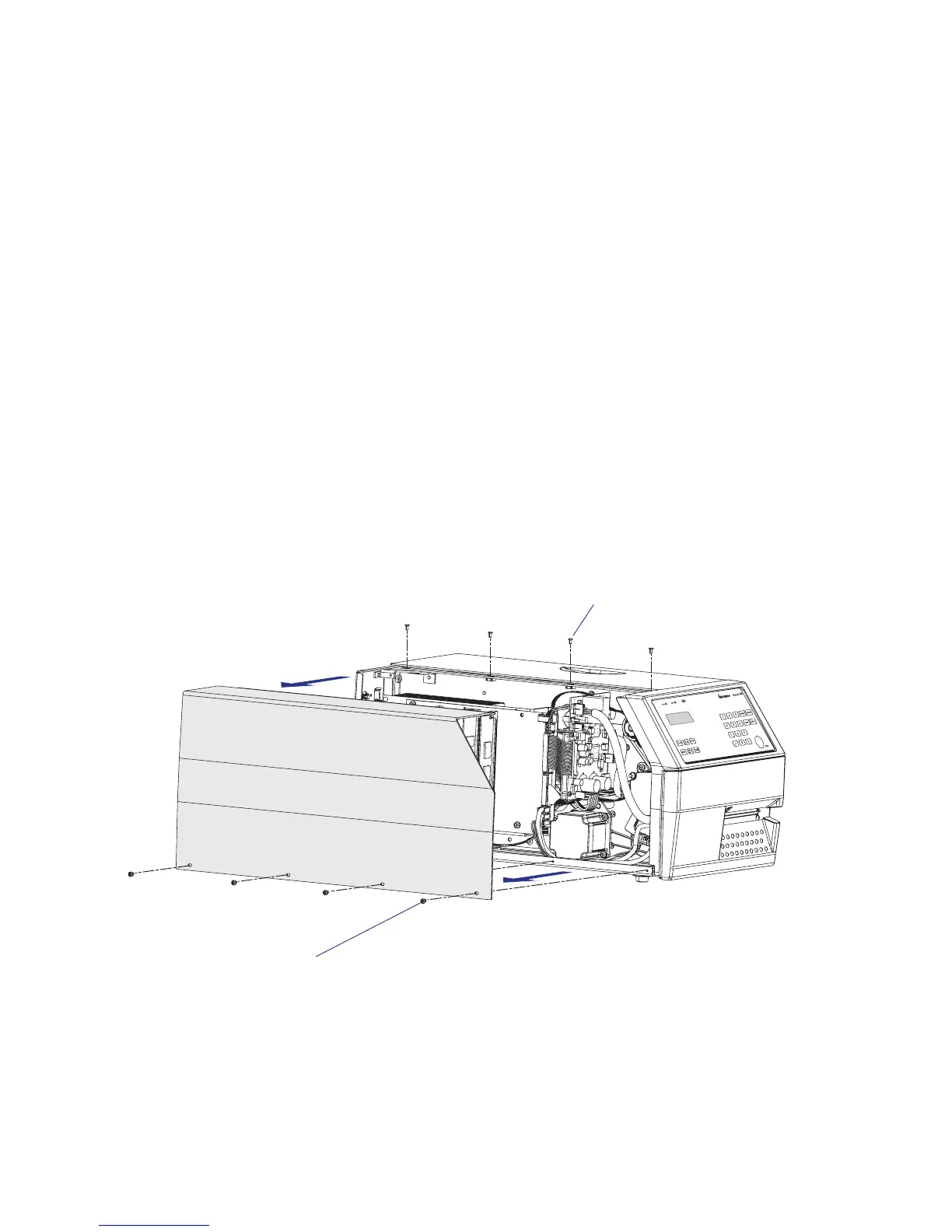

12.2 Accessing the Electronics Compartment
To gain access to the electronics compartment, remove the left-hand cover
as described in Chapter 3.3.
#T10 Torx screws (x4)
#T10 Torx screws (x4)
