Intermec EasyCoder PX6i Service Manual

26 EasyCoder PX4i and PX6i Service Manual
Chapter 3 — Covers and Doors
3.1 Right-Hand Door
Description
The right-hand door gives access to:
• The media supply
• The ribbon supply
• The print mechanism
The right-hand door is fi tted to the bottom plate using two hinges that
allow the door to be swung 180˚ downwards to a vertical attitude. The
door is kept shut using a magnetic lock. The door can easily be removed
from the hinges by pushing it forward until the snap-lock at the rear hinge
becomes disengaged.
At the inside of the door, there is a label showing how to load the media
and transfer ribbon.

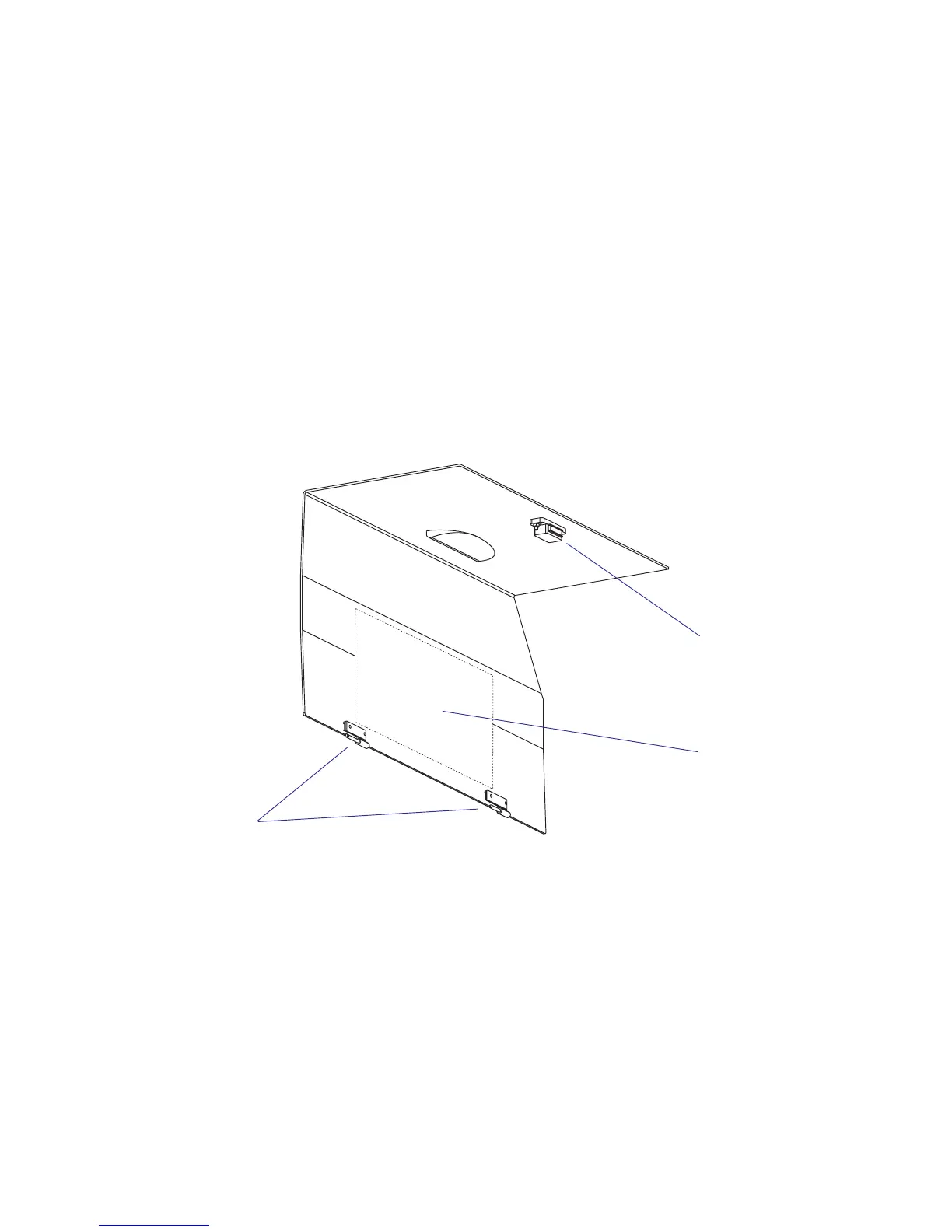

Illustration shows the right-hand door of an EasyCoder PX4i. The door of the EasyCoder PX6i has a wider top part.
Adjustment
The hinges can be adjusted using two pairs of #T10 Torx screws visible
on the outside. Possibly, the other parts of the hinges, which are fi tted to
the bottom plate, may require adjustment too. Shut the door, loosen the
screws slightly and align the door with the front moulding. Tighten the
screws and check that the door runs freely and is kept shut by the magnetic
lock.
Magnetic lock
Label
Hinges

Intermec EasyCoder PX6i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	170 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	335 mm
Weight	14800 g
