Intermec EasyCoder PX6i Service Manual

114 EasyCoder PX4i and PX6i Service Manual
Chapter 10 — Label Taken Sensor
10.1 Description
The label taken sensor (LTS) is an optional device, which enables the
printer's fi rmware to detect if the latest printed label, ticket, tag etc. has
not been removed and hold the printing on the next label until the present
label has been taken away from the outfeed area.
The label taken sensor is usually factory-fi tted, but it is also available as a
kit for upgrading of existing printers by an authorized service technician. It
cannot be fi tted in combination with a paper cutter.
The label taken sensor consists of a photoelectric sensor with a bracket and
a connection cable. The sensor is fi tted inside the front door, see illustra-
tion below.
The photoelectric sensor emits a narrow beam of light, which will be
refl ected back to the sensor by any label, ticket, tag, piece of strip, or liner,
that has not been removed from the outfeed area.
The LTS is connected to J53 on the CPU board. The sensitivity is adjusted
in the Setup Mode, see Chapter 10.4.
The point of detection of the LTS is situated 10 mm (0.39 inches) outside
the inner edge of the media path and 22 mm (0.87 inches) in front of the
dot line on the printhead.

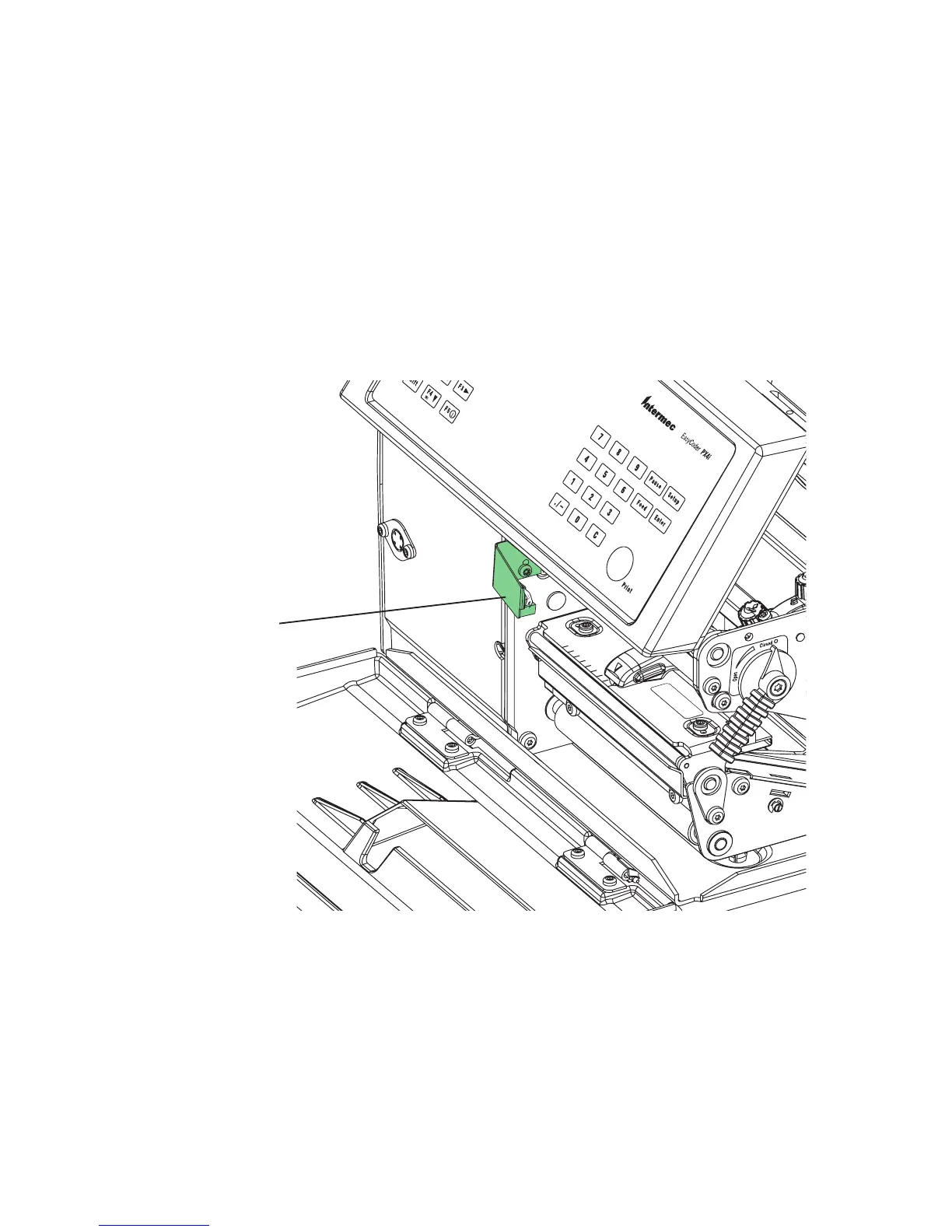

Label taken sensor

Intermec EasyCoder PX6i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	170 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	335 mm
Weight	14800 g
