Chapter 4 — Chassis
4.4 Rear Plate
The rear plate is attached to the bottom plate using three #T20 Torx
screws and to the center section by two #T20 Torx screws. There is also a
bracket between the rear plate and the center section. The rear plate has a

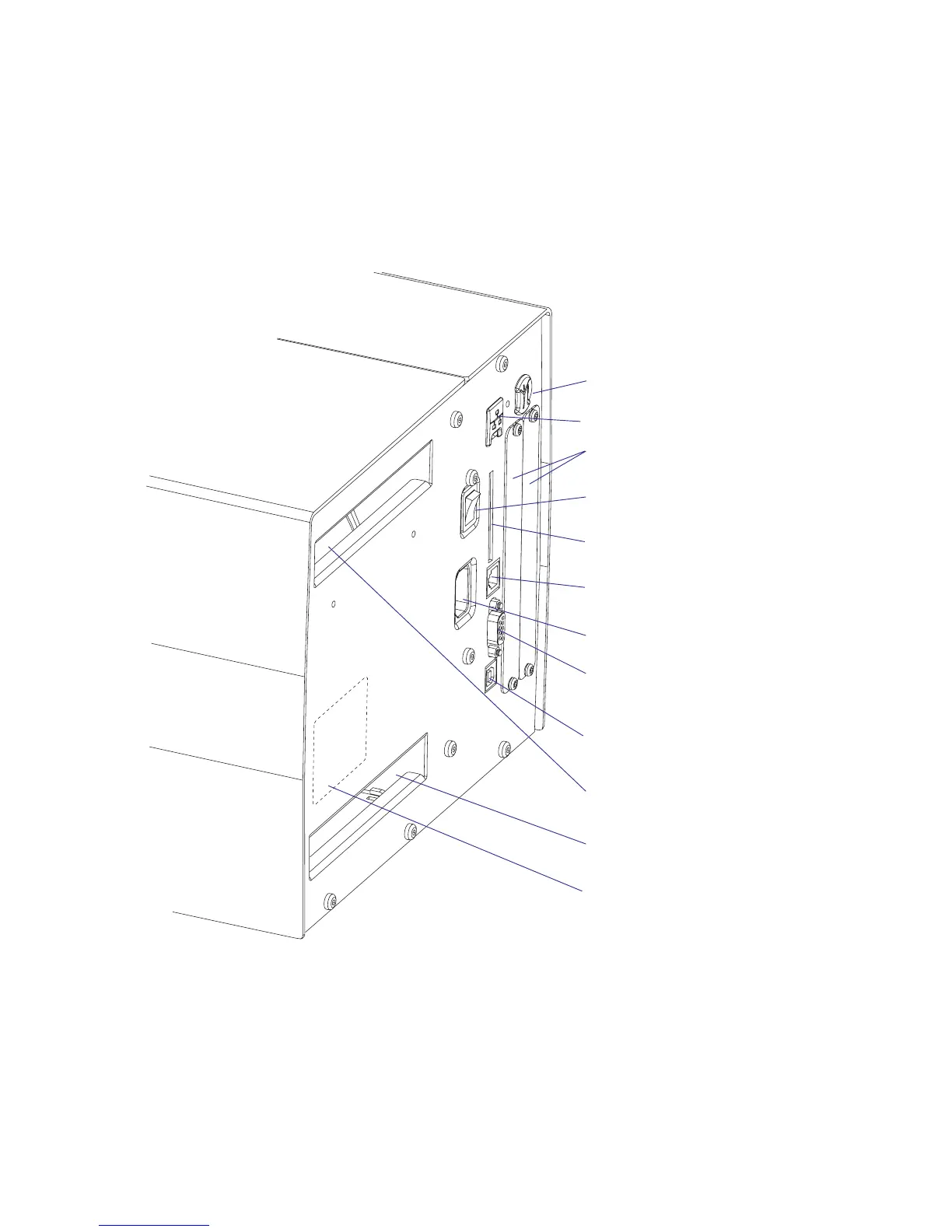

number of slots for connectors, switches etc., as illustrated below.
On/Off switch
AC power cord receptacle
CompactFlash memory card slot
RS-232 serial interface
Provision for optional interface
board(s)
Bar code wand Interface (not used with
IPL)
Upper external media intake
Lower external media intake
USB interface
Provision for EasyLAN Ethernet
connector
Provision for EasyLAN Wireless antenna
Machine label

Intermec EasyCoder PX6i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	170 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	335 mm
Weight	14800 g
