Intermec EasyCoder PX6i Service Manual

EasyCoder PX4i and PX6i Service Manual 127
Chapter 12 — Electronics Compartment
CPU board
Driver board
Stepper motor
(liner/batch
takeup)
Platen roller
belt and pulley
Liner drive roller
belt and pulley
Power supply
(behind CPU board)
Stepper motor
(platen &
ribbon rewind)

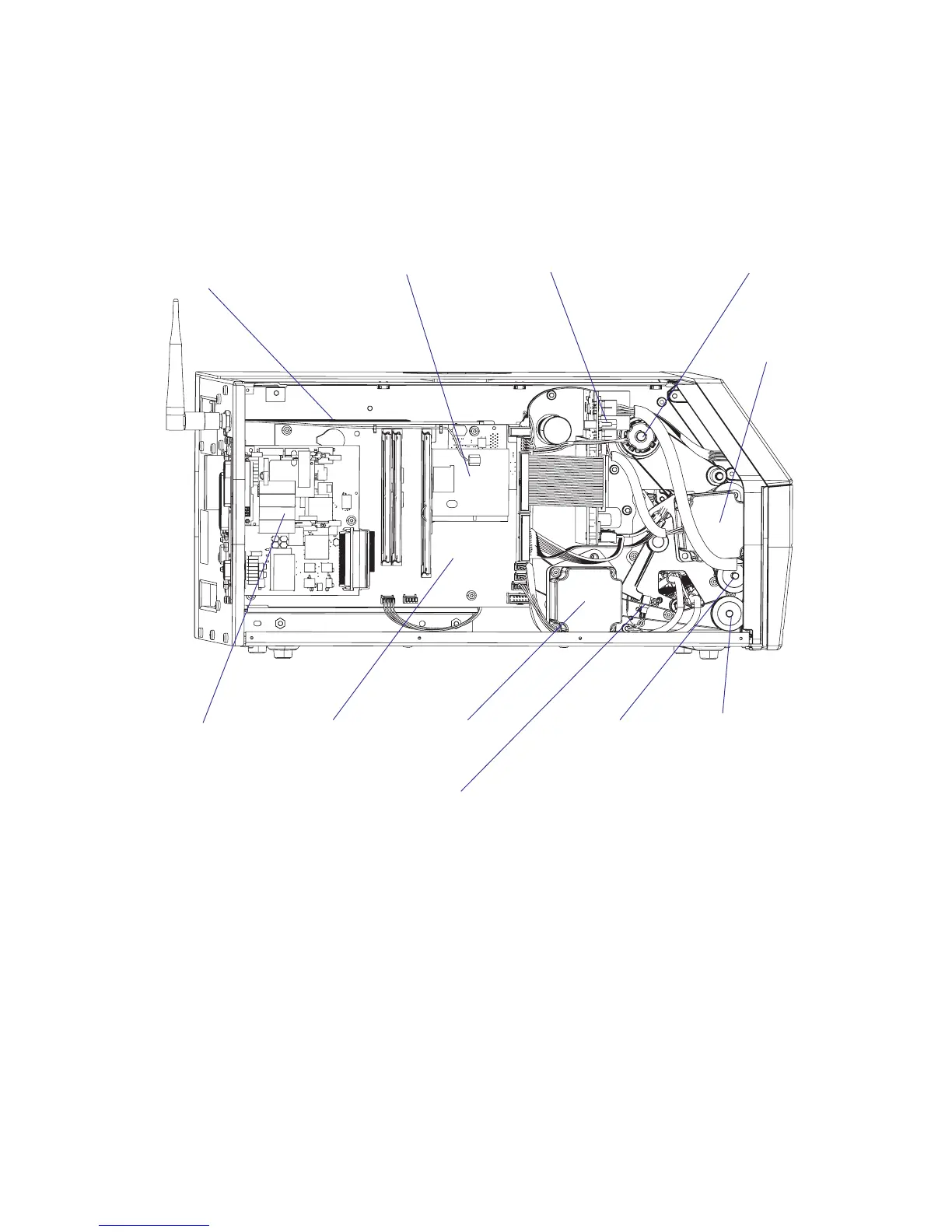

12.3 Main Parts
This is what you may see when you remove the front/left-hand cover from
an EasyCoder PX4i or PX6i printer.
Ribbon rewind unit
Optional
interface boards
Optional EasyLAN board
Headlift sensor

Intermec EasyCoder PX6i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	170 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	335 mm
Weight	14800 g
