Intermec EasyCoder PX6i Service Manual

150 EasyCoder PX4i and PX6i Service Manual
Chapter 15 — CPU Board

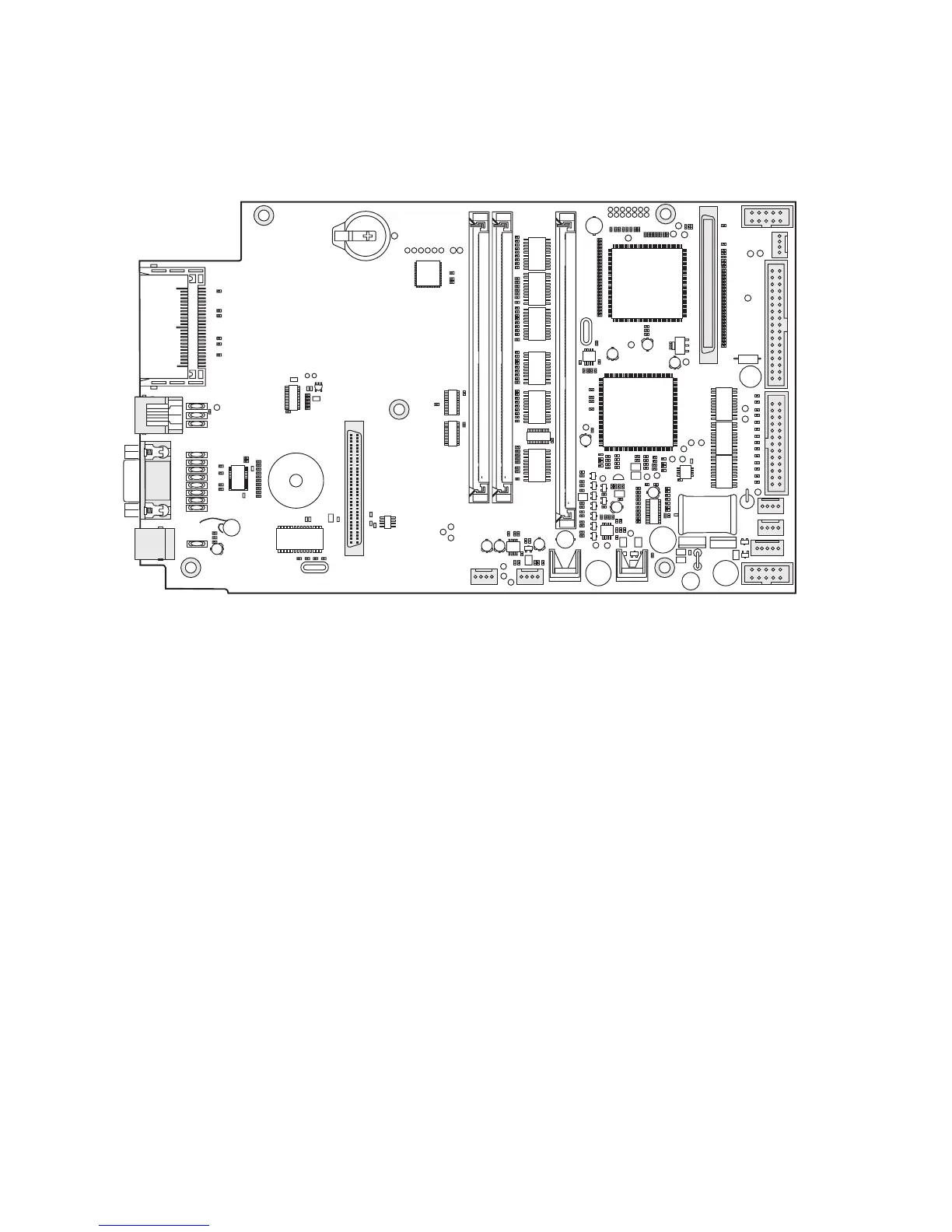

15.3 Connections
The following connectors on the CPU board are used in the printer for
communication with various devices and sensors.
Left side (from top down)
J59 Bar Code Wand (not supported by IPL)
J61 RS-232
J60 USB
Bottom (from left to right)
J62 Expansion board connection (optional interface boards)
J57 Paper Sensor
J53 Label Taken Sensor (option)
J51 Finisher (not used)
Top (from left to right)
J84 PCI (EasyLAN interface, option)
J50 Console (keyboard, display, and print or feed/pause button)
Right side (from top down)
J56 Ribbon Low sensor
J52 Power from driver board
J40 Data to printhead
J55 LSS (gap)
J54 LSS (black mark)
J58 Headlift sensor
*
*
*
0
2353"
*
* &).)3(%2
0!0%2
*,43
*
%80"/!2$
7!.$
*
*
0#)
*
*
*
*
'!0
*
"-
*
(%!$,)&4
02).4(%!$ 0/7%2
#/.3/,%
2)""/.
*
0/

Intermec EasyCoder PX6i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	170 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	335 mm
Weight	14800 g
