36 EasyCoder PX4i and PX6i Service Manual
Chapter 5 — Media Supply
5.1 Internal Supply
Description

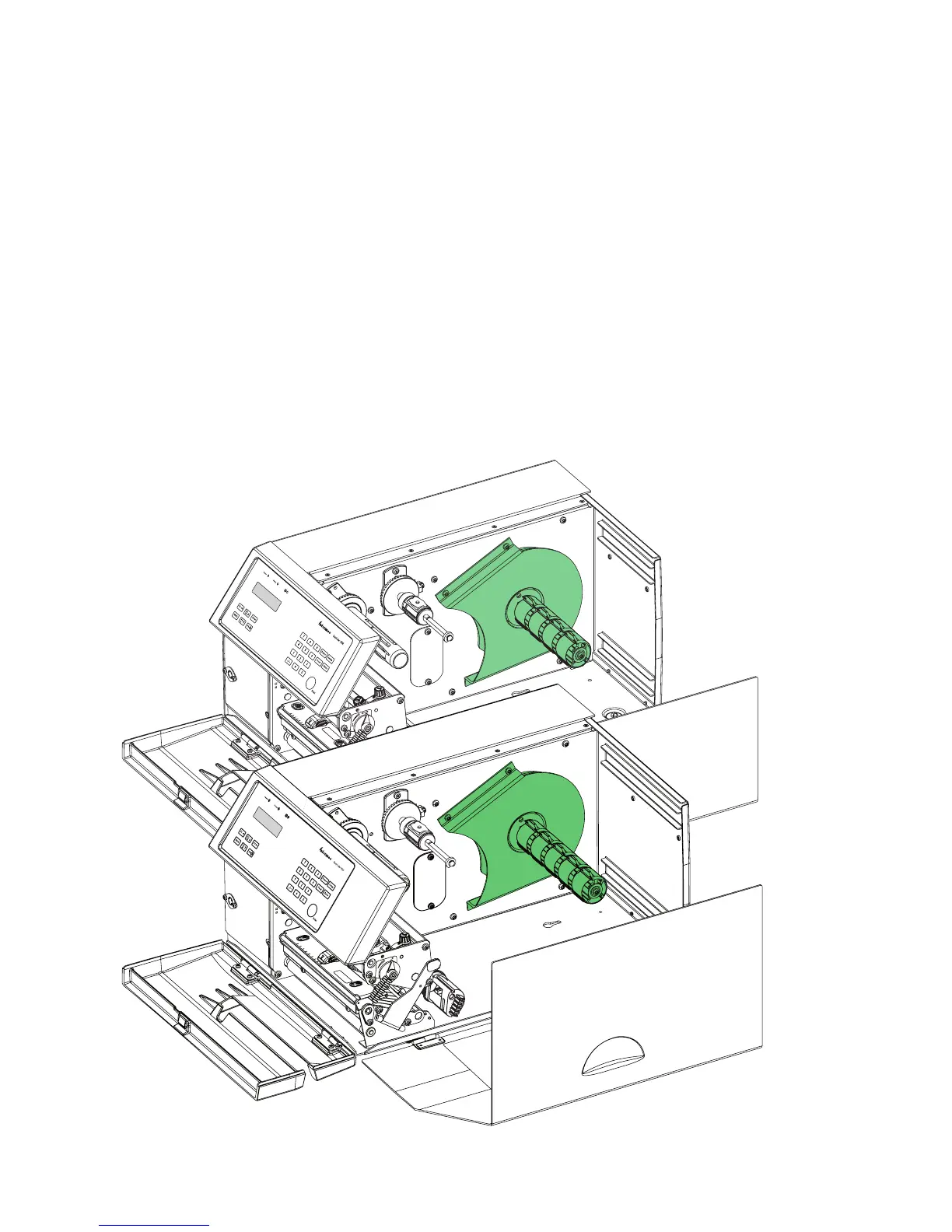

The internal media supply consists of a shaft with four or fi ve modular
hubs. The shaft is screwed into a fl ange fi tted to an almost circular plate
using two #T20 Torx screws. The plate is fi tted to the center section using
four #T20 Torx screws. The hub modules are spring-loaded in order to
fi t media roll cores with an inner diameter between 38 and 40 mm (1.5
inches).
A large crescent-shaped guide plate keeps the media roll aligned with the
print mechanism. Inside the guide plate and protruding through a slot in
the circular plate, the paper sensor is fi tted to the center section.
Maximum diameter of an internal media roll is 213 mm (8.38 inches),
except in the case of peel-off and batch takeup operation when the diam-
eter is restricted to 205 mm (8 inches). Maximum width is 120 mm (4.72
inches) for EasyCoder PX4i and 170 mm (6.69 inches) for EasyCoder
PX6i.

Intermec EasyCoder PX6i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	170 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	335 mm
Weight	14800 g
