Chapter 16 — Interfaces
16.8 IEEE 1284 Parallel Interface Board
Description
The IEEE 1284 Parallel Interface Board is an optional device for Easy-
Coder PX4i and PX6i printers. It provides these printers with one parallel
interface port and is supported by both Fingerprint and IPL.
The parallel communication port is addressed in Intermec Fingerprint as
device centronics: (communication channel 4). The board is IEEE1284-I
compatible. Nibble Mode and device ID is supported. Byte, ECP, and EPP
modes from printer to host are presently not supported.
The IEEE 1284 Parallel Interface kit contains:
• One Parallel Interface Board
• Two fl at cables
• One hexagonal spacer
• One Installations Instructions booklet.
There are neither any straps nor any other types of physical confi guration
on this interface board, nor any options in the Setup Mode.

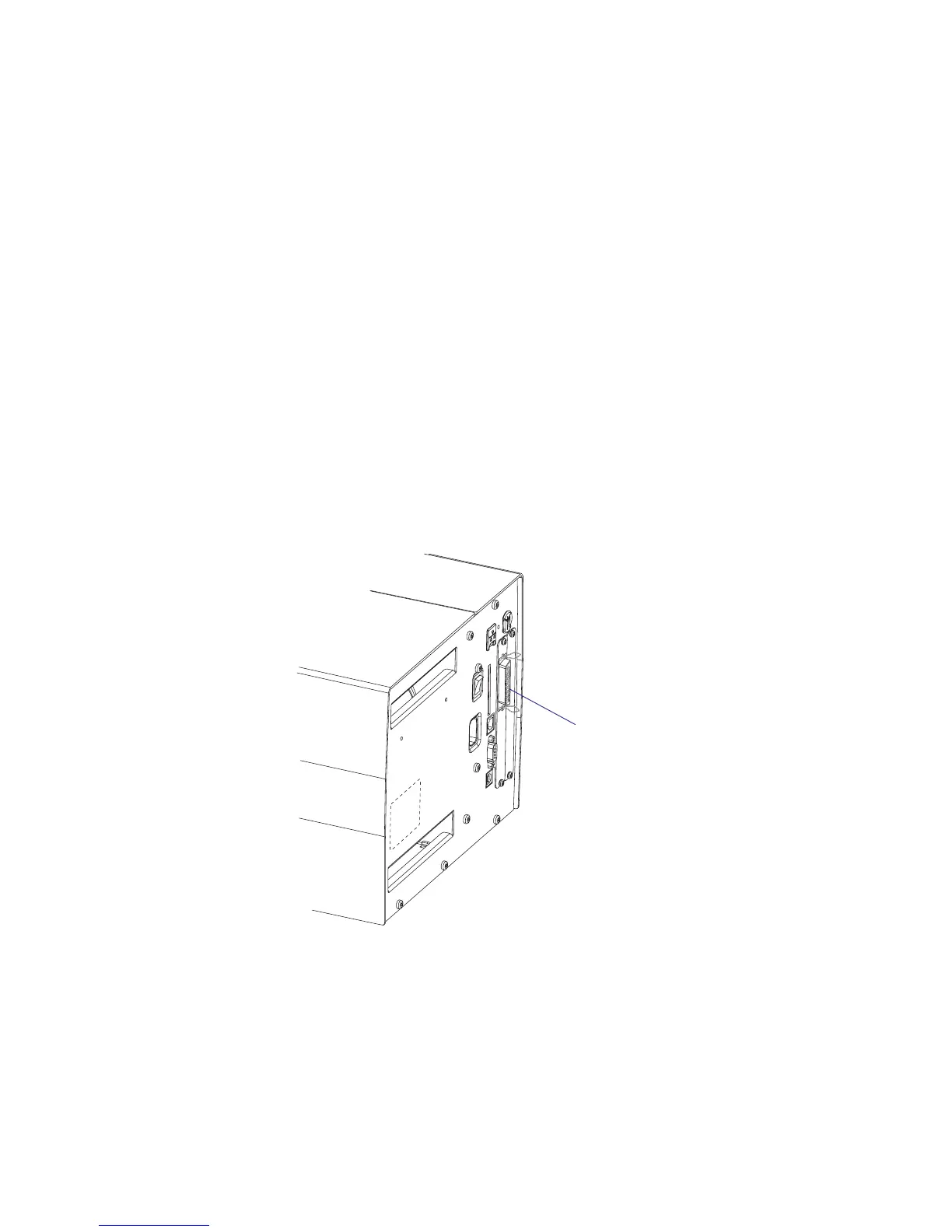

IEEE 1284 interface
("centronics:")

Intermec EasyCoder PX6i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	170 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	335 mm
Weight	14800 g
