Intermec EasyCoder PX6i Service Manual

38 EasyCoder PX4i and PX6i Service Manual
Chapter 5 — Media Supply

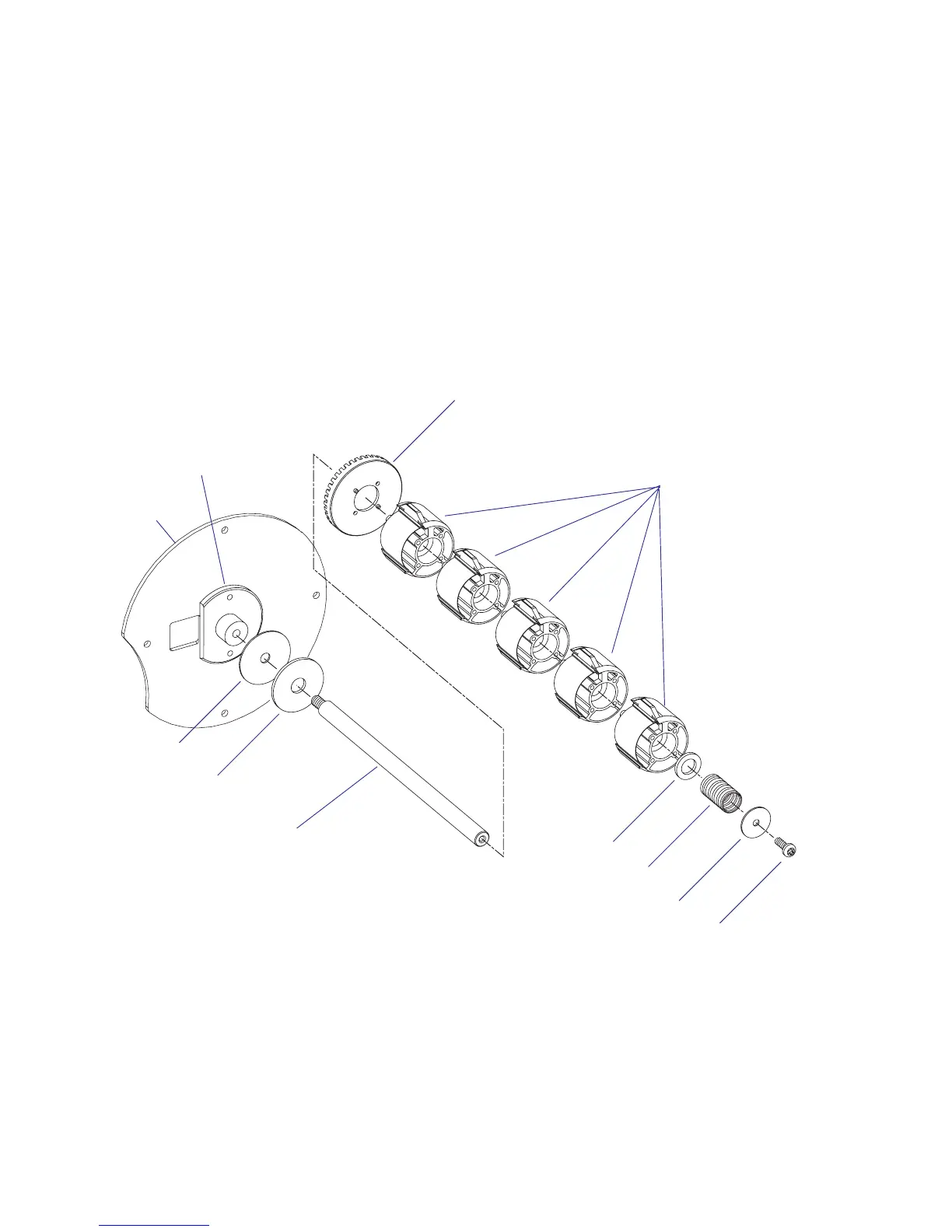

The media supply hub package can be dismantled by removing the #T20
Torx screw at the end of the shaft. Inside the outermost hub module, there
is a spring that presses the hub package towards a felt pad in order to break
the rotation. Else, the momentum of a large and heavy media roll might
cause excessive media to be unwound when the printing is stopped. The
brake torque should be 70 ±20 Nmm (see Appendix C).
The rotation of the code disc fi tted at the innermost part of the hub pack-
age is detected by the paper sensor.
Be careful to fi t the studs of the innermost hub module into the holes in
the code disc when the package is assembled.
Flange
Nylon disc
#T20 Torx screw
Washer
Spring
Shaft
(short in EasyCoder PX4i,
long in EasyCoder PX6i)
Felt Pad
Disc
Hub modules
(4 in EasyCoder PX4i,
5 in EasyCoder PX6i)
Code disc
Plate

Intermec EasyCoder PX6i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	170 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	335 mm
Weight	14800 g
