Intermec EasyCoder PX6i Service Manual

EasyCoder PX4i and PX6i Service Manual 63
Chapter 8 — Print Unit
EasyCoder PX6i

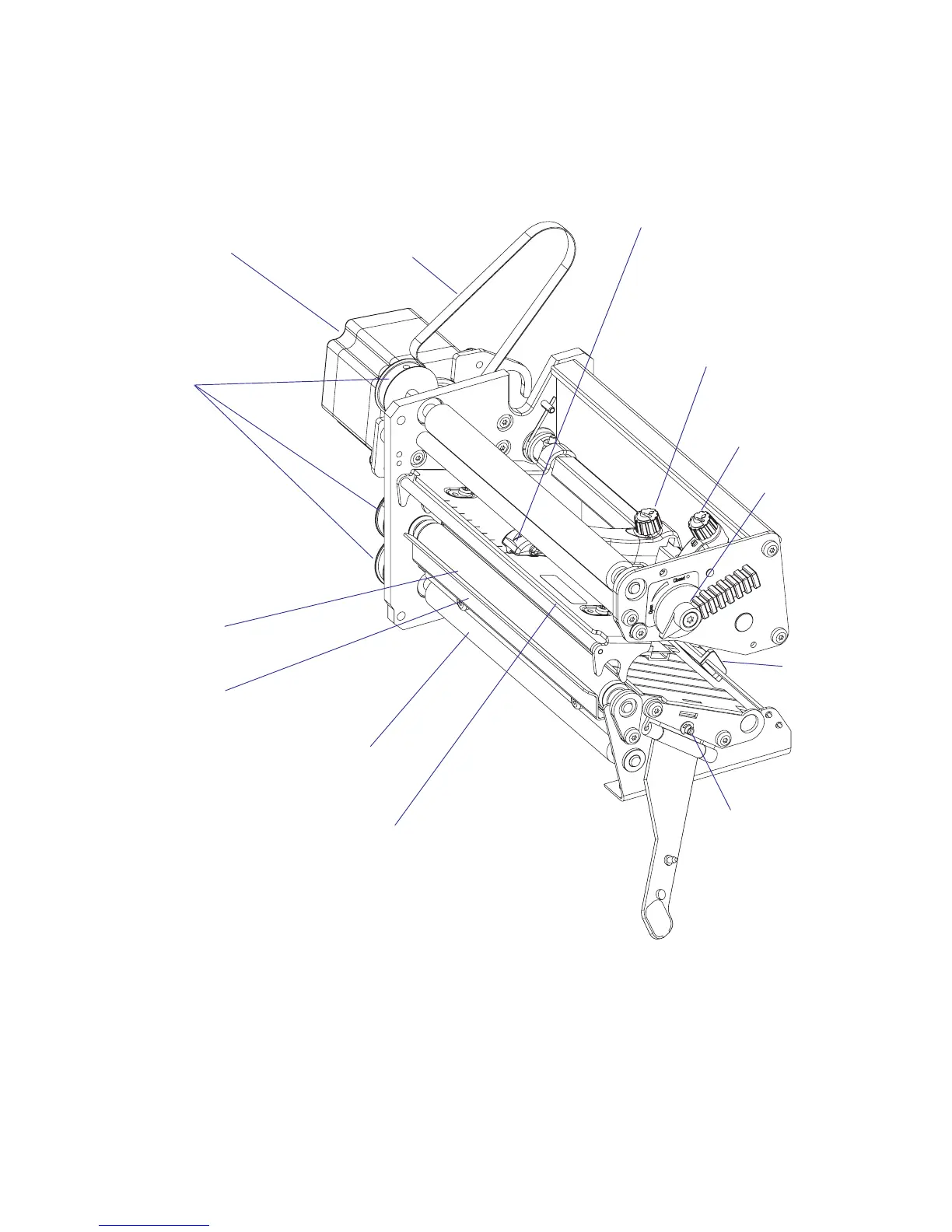

The parts of the EasyCoder PX6i print unit, as seen from the media
compartment side of the center section, are illustrated below. Cables are
excluded.
Printhead with
bracket
Printhead
pressure
adjustment
Pressure arm
Pulleys
LSS adjustment
screw
Stepper motor
Edge
guide
Tear bar
Platen roller
Liner drive roller
Printhead
lift lever
Belt to ribbon
rewind unit
Printhead
position
adjustment

Intermec EasyCoder PX6i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	170 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	335 mm
Weight	14800 g
