Intermec EasyCoder PX6i Service Manual

EasyCoder PX4i and PX6i Service Manual 69
Chapter 8 — Print Unit
EasyCoder PX6i

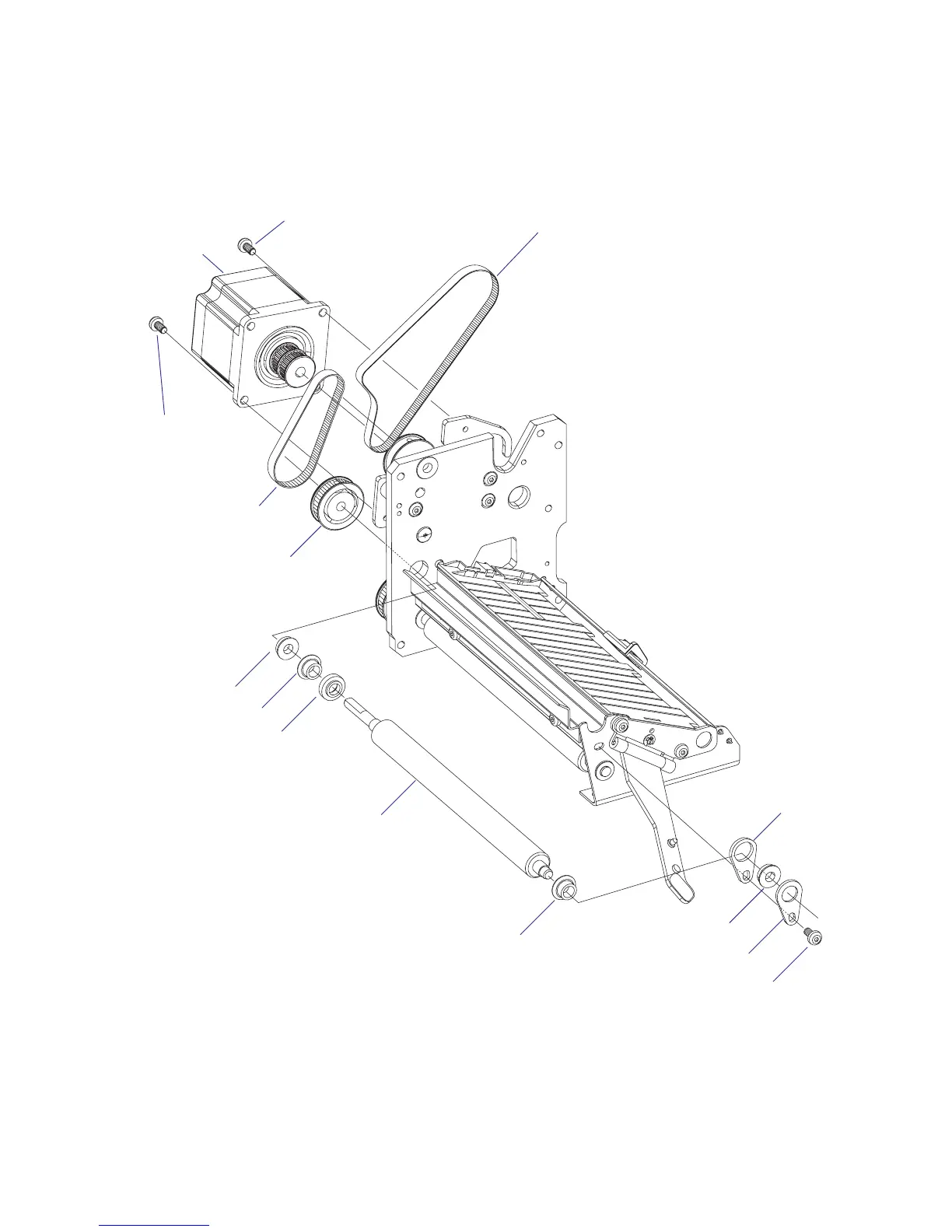

In the illustration below, the upper parts of the print unit and the label
stop sensor have been removed to improve visibility.
Pulley
Platen roller
Belt to platen roller
#T20 Torx screw
#T20 Torx
screw
Stepper
motor
Ball bearing
Plastic bearing
Spacer
Plastic bearing
Ball bearing
Bracket
#T20 Torx screw
Belt to ribbon
rewind unit
Bracket
