Set the back joint pin at the back of the knife.
Perform knife height adjustmnt in advance to adjust the knife carrier 20mm above.
Using installation holes at the upper row, install the knife.

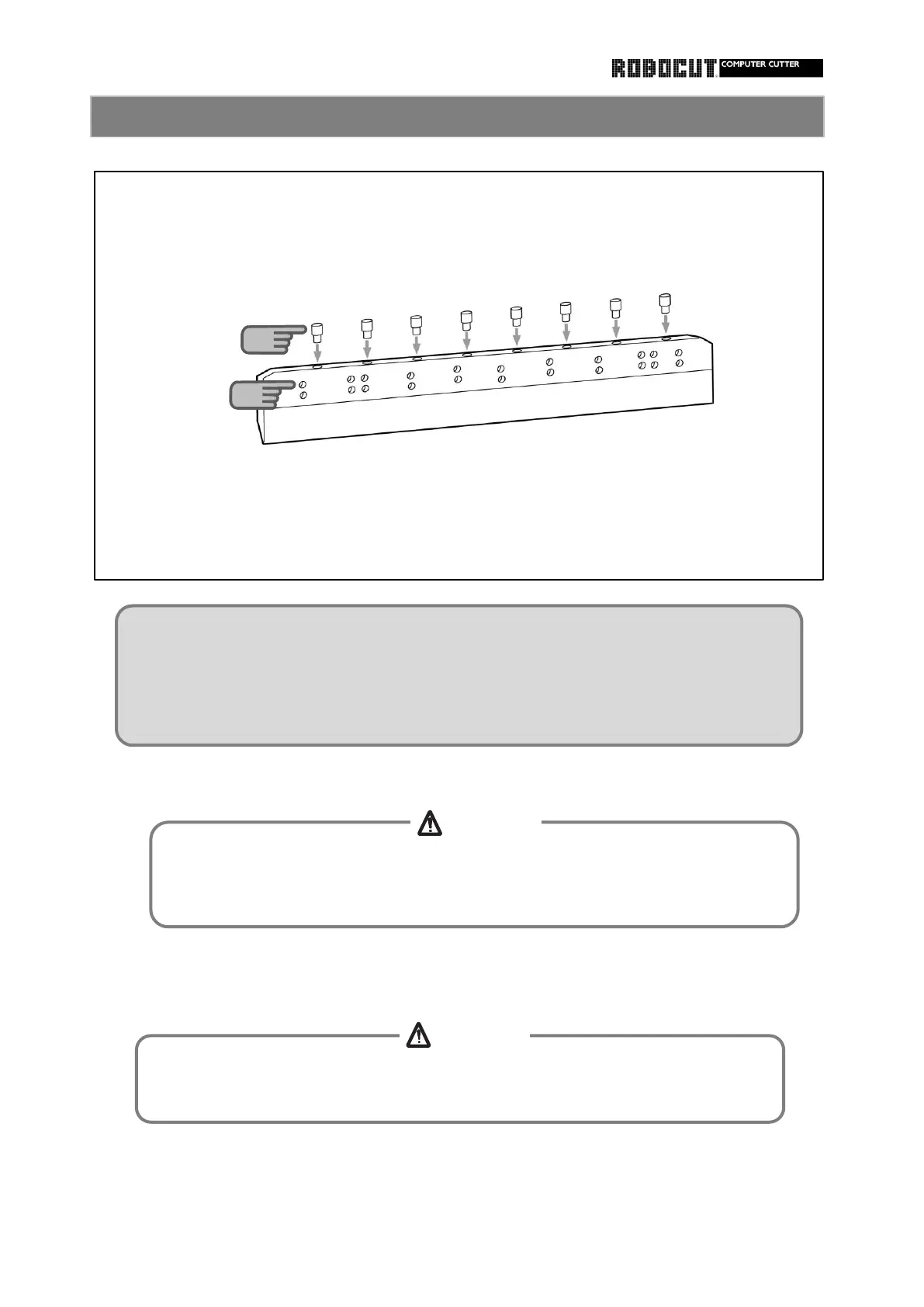

How to use two-stage knife installation holes
When turning the knife height adjustment handle, be careful of edge of knife or
those of the main body.
Otherwise injuries will be caused.
the knife is provided with upper and lower installation holes. At first, use the holes in
the lower row.
If the wear exceeds 20mm after repetitive grinding, use instaration holes in the upper
row.
At this, set the accessory back joint pin at the back of the knife.
Do not use holes in the upper row before wear in the knife width reaches 20mm.
Erroneous use will cause damage to the knife and machine.
