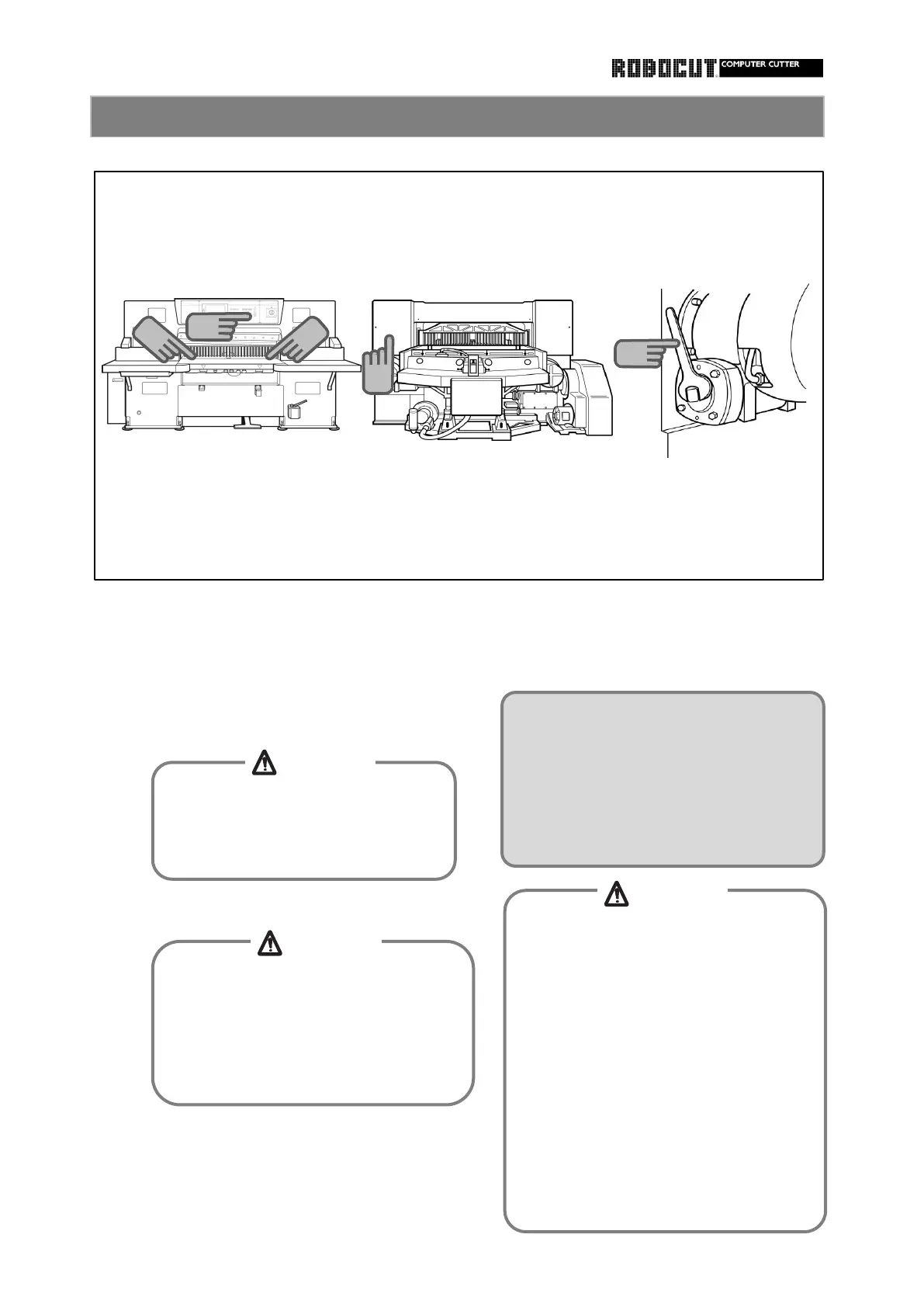

Stop the main motor.
The knife lowers. Check that the cutiing
Clutch operation becomes valid after 150
edge slightly makes contact with parer
seconds.
and that then it starts to rise. Raise the
knife to the top.
Remove the cuttingstick. Place a sheet of
thin paper at both ends of the cutting
stick groove.
Turn the clutch key in electric box 1.
Remove the cover from the worm shaft ( R )
and use a wrench to turn the worm shaft
counterclockwise.
wear gloves or the like and careful
of the edge of the cutting stick gr-
oove and cutting edge of the knife.
Turning the clutch key on releases the
knife brake, starting to lower the knife
by its own weight. injuries will be caused.
Leave the clutch key turned off unnless
the knife is turned with the wrench or it
is held by another means.
The broove depth is 16mm. If the knife
does npt start to rise even if the cutting
edge makes contact with thin paper,
turn the worm shaft clockwise to raise
theknife to the top and check the rela-
tionship with the cutting edge line seal
again.
If the cutting edge of the knife is lower
than the cutting edge line seal installed
to the clamp, use the " knife height
adjustemnt handle " in advance to adj-
ust to a position higher than the cutting
edge line seal.
Otherwise the knife will be caused aga-
inst the groove in the cutting stick,
possiblycausing damage to machine and
knife.
When turning the knife height adjustm-
ent handle, be careful of the cutting
edge of the knife and edges of the
main body.
2
2
1
３
4
CAUTION
CAUTION
CAUTION
