Itotec SC115Z - How to Replace the Fuse

5
F1 ５ A For main power supply
F2 ５ A For control circuit AC100V
Electric box 1 F3 １ A For CC-E circuit board DC5V
F4 ５ A For cut line
F5 ２ A For DC24V circuit
F8 ２ A Power supply for computer unit
Electric box 2 F2 ３ A For hydraulic solenoid circuit
（ on KPW circuit board）
F1 ２ A For clutch power supply
Maintenance
The spare fuse is located in electric box 2.
Check if the size ia the same and the ampere marked at the end of the fuse is identical.
Open the door of the electric box 1 or electric box 2.
Turn the power switch off.
Reolace the appplicable fuse.

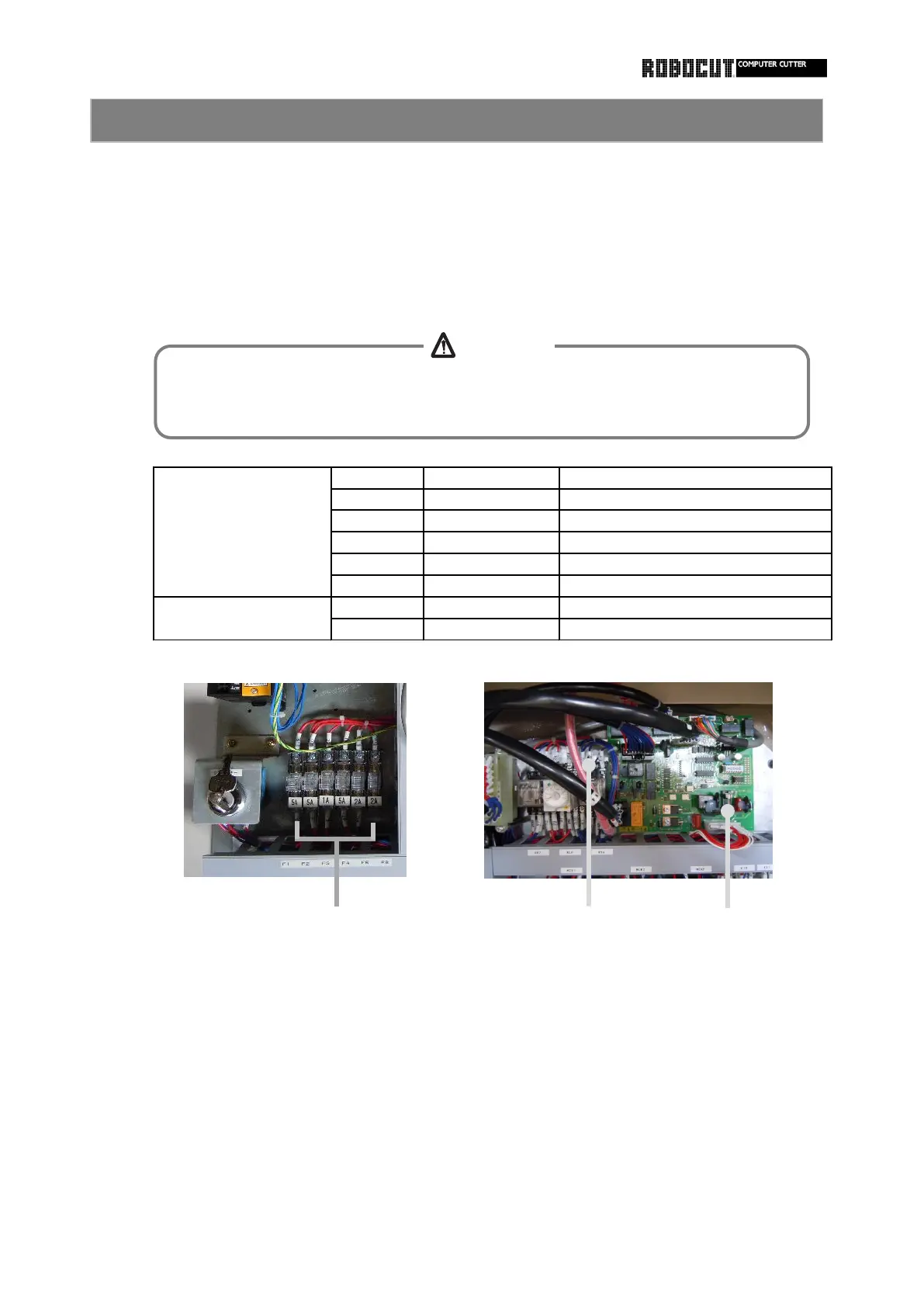

How to replace the fuse
1.
Do not use the fuse unless the rating is identical.
Otherwise failures, fire and/or injuries will be caused.
2.
3.
Electric box １
Electric box ２ （KPW board）
F ２
F １
F １～ Ｆ８
CAUTION
64
