Itotec SC115Z - How to Install the False Clamp; How to Install the False Clamp (from Front)

5
Keep height identical.

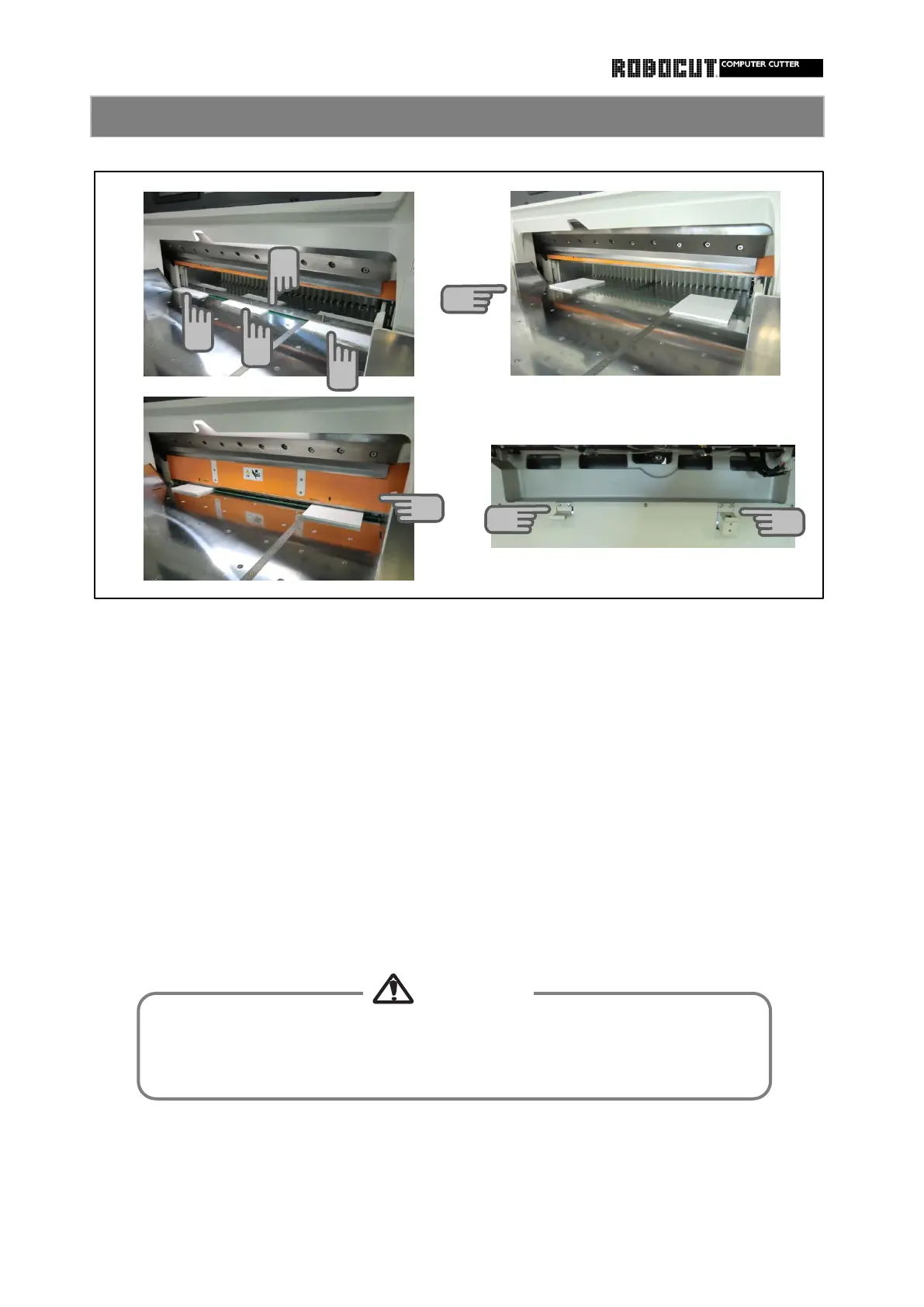

Place the false clamp on the cushion.
Insatall/remove the false clamp
Place a cushion such as a book at the bottom, left and right of the clamp.
Align the front end of the false clamp with the cut line.
pLace in the center of the surface plate in the left/right direction.
Using the clamp pedal, slowly lowe the clamp to push it against the false clamp.
Release thr clamp pedal to raise the clamp.
The false clamp installation table is stripped of the false clamp and the front end of
the backgauge is adjusted appropriately to the one with the false clamp.
How to install the false clamp （Front installation/removal）
1.
2.
3.
4.
5.
When installing the false clamp, be careful to keep away from the knife in front
of the clamp.
Otherwise injuries will be caused.
５
５
４
３
１
１
２
１
CAUTION
59
