Attachments
Quickhitch

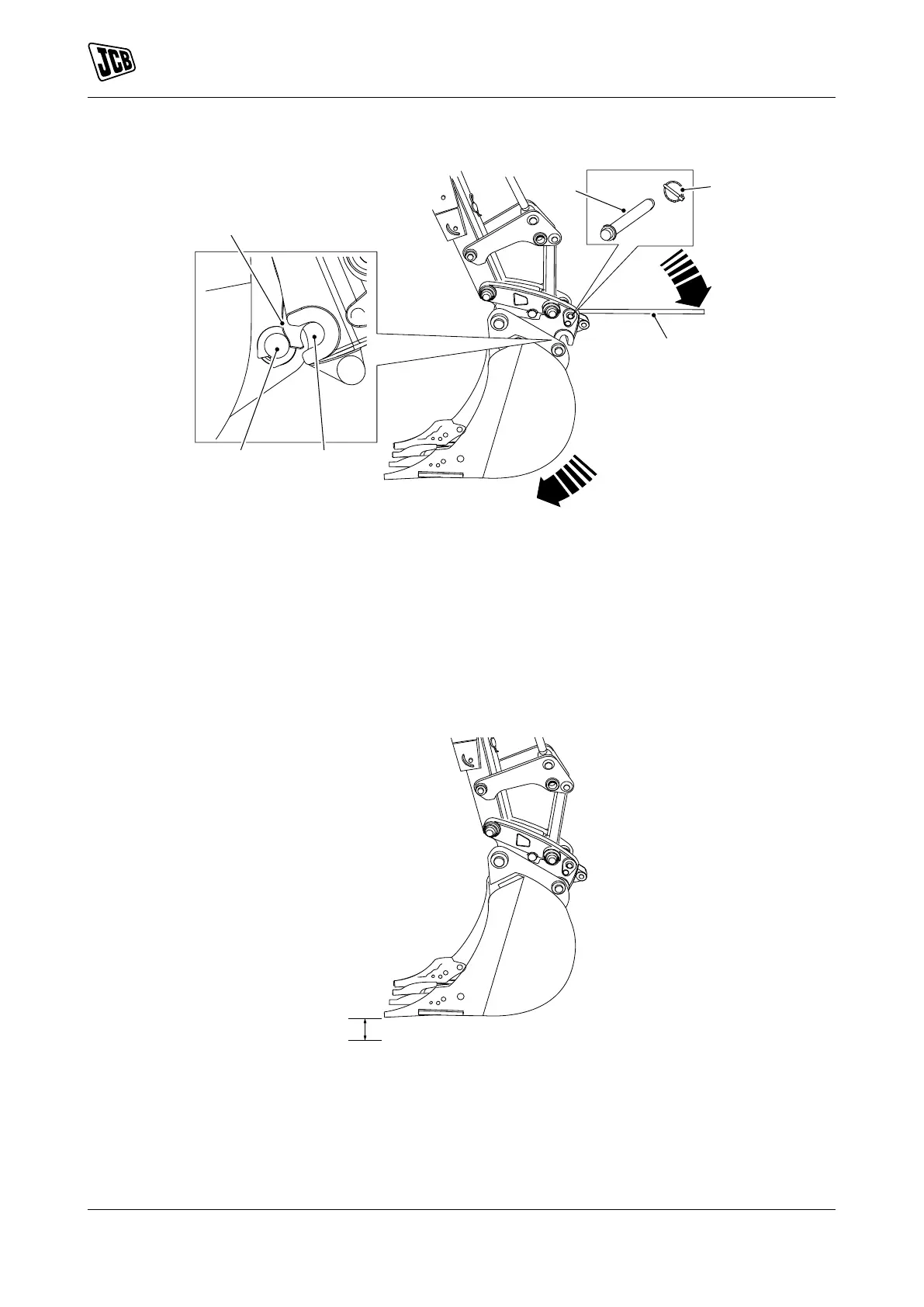

Figure 75.
E
D
C
F
H
G
C Rear jaw D Rear pivot pin
E Quickhitch latch hook F Latch hook locking pin
G Lynch pin H Tommy bar
Mechanical Quickhitch Attachment Removal
1. Park the machine on firm level ground.
2. Position the attachment approximately the specified distance from the ground in the orientation shown.
Refer to Figure 76.
Length/Dimension/Distance: 100mm
Figure 76.
A
A 100mm
3. Stop the engine, remove any connected hydraulic hoses remove the lynch pin and locking pin. Refer to
Figure 77.
91 9831/8250-4 91
JCB © Admin Pimteam - 23/06/2021 05:32.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
