M120 FPC Serial Number Label

The serial number label is located on the center of the right side of the FPC3 (see

Figure 114 on page 301). On an FPC2, the serial number label is located near the top PIC

slot.

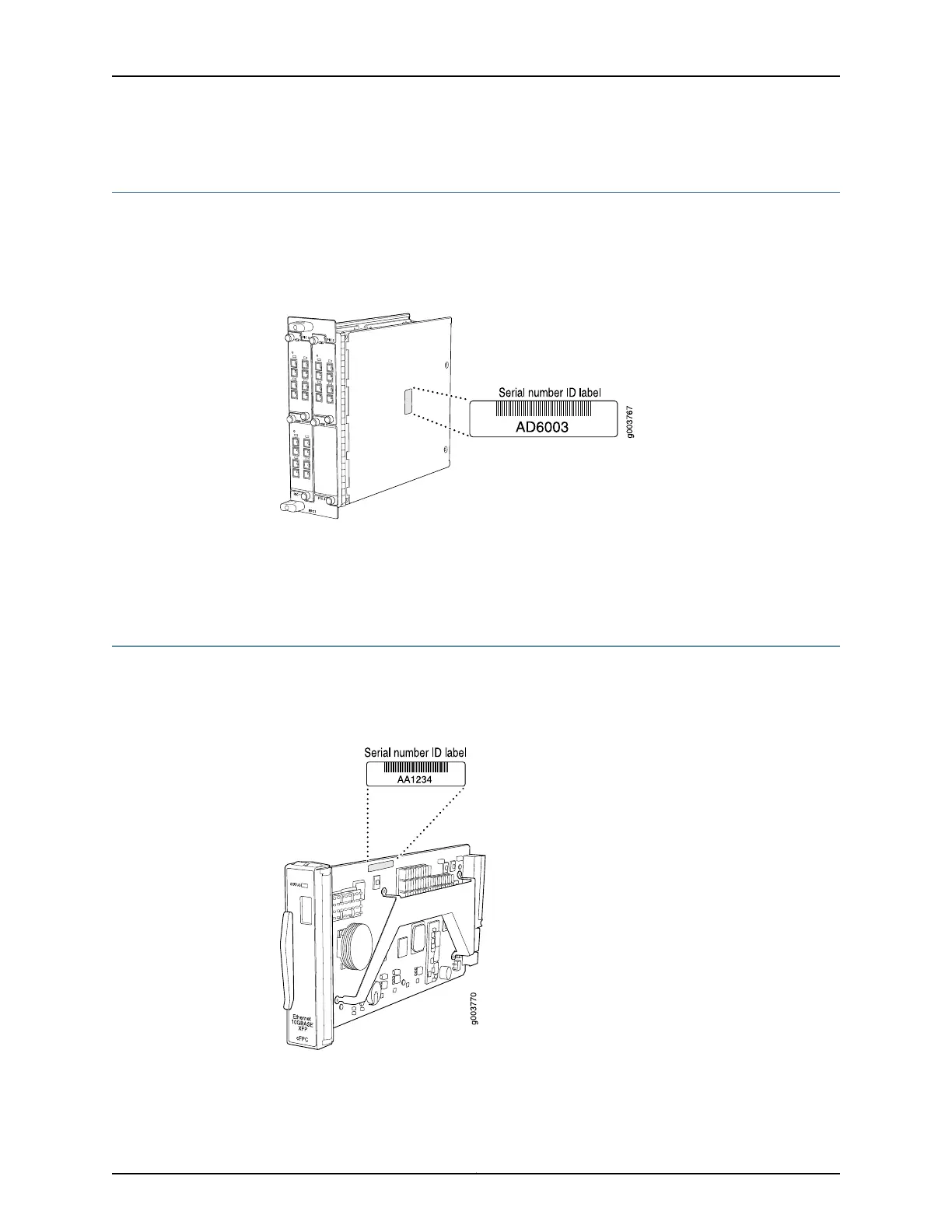

Figure 114: M120 FPC Serial Number Label

Documentation

M120 Flexible PIC Concentrators (FPCs) Description on page 51•

• Troubleshooting M120 FPCs and CFPCs on page 287

M120 CFPC Serial Number Label

The serial number label is located on the top center of the CFPC (see

Figure 115 on page 301).

Figure 115: M120 Routing Engine Serial Number Label

Documentation

M120 Compact FPCs (CFPCs) Description on page 54•
