Juniper MX10003 Hardware Guide

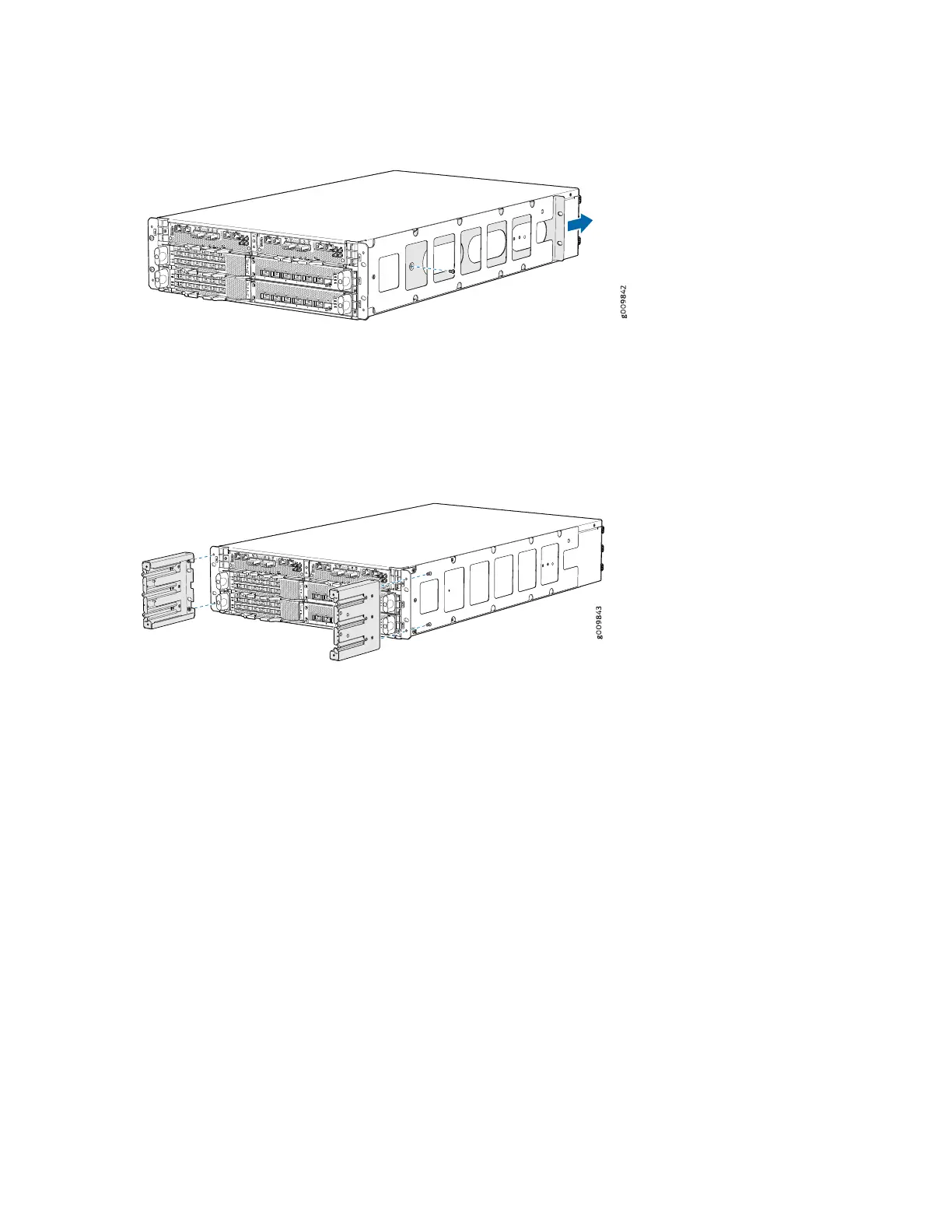

Figure 21: Removing the Rear-Mounting Brackets
4. Install the cable management brackets on each side of the front of the chassis, and secure each bracket
with screws at the bottom and top of the bracket (see Figure 22 on page 90).
Figure 22: Installing the Cable Management Brackets
5. With one person on each side, hold on to the bottom of the chassis and carefully lift it so that the
mounting brackets contact the rack rails.
6. Carefully slide the router onto the mounting brackets until the front-mounting brackets attached to
the chassis contact the rack rails (see Figure 23 on page 91). The mounting brackets ensure that the
holes in the front-mounting brackets attached to the chassis align with the holes in the rack rails.
90

Juniper MX10003 Specifications

General

Model	MX10003
Category	Network Router
Routing Engine	RE-MX10003
Throughput	2.4 Tbps
Operating System	Junos OS
Power Supply	AC or DC
Rack Units/Form Factor	3 U
Redundancy	Power supplies, fans
Slot Count	3
