1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R) Overview
The 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) provides the physical connection to T1 or
E1 network media types and also performs T1 or E1 framing and line-speed signaling.
Figure 5 on page 47 shows the front panel of the 1-Port T1/E1 Mini-PIM (SRX-MP-1T1E1-R).

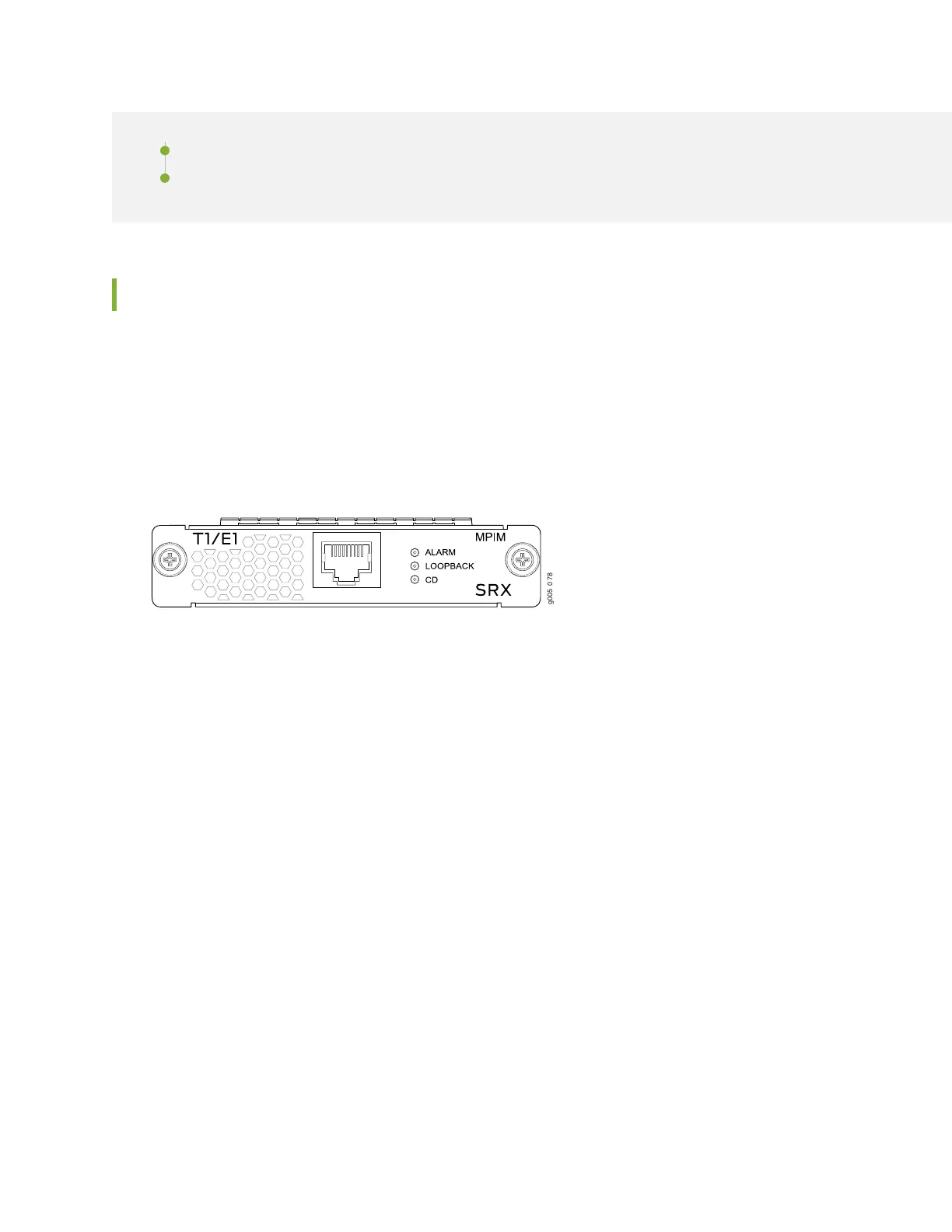

Figure 5: 1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R) Front Panel
g005 0 78
The 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) provides the following key features:
•
Channel service unit/data service unit (CSU/DSU) to eliminate the need for a separate external device
•
56-Kbps and 64-Kbps operating modes
•
Independent internal and external clocking option
•
Alarm reporting with a 24-hour history maintained
•
Loopback, BERT, FDL (T1 only), and Long Buildout (T1 only) diagnostics
•
Multilink Frame Relay and Multilink PPP support
The 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) supports the following standards:
•
ANSI TI.107, TI.102
•
GR 499-core, GR 253-core
•
AT&T Pub 54014
•
ITU G.751, G.703
47
