Table 35: Supported Profiles on the 1-Port VDSL2 Annex A (SRX-MP-1VDSL2-R) Mini-PIM (continued)
Data RateProfiles
Auto mode (default)Auto
1-Port VDSL2 Annex A (SRX-MP-1VDSL2-R) Mini-Physical Interface Module
Cable Specifications
The 1-Port VDSL2 (Annex A) Mini-Physical Interface Module (Mini-PIM) requires a standard RJ-11 cable.
Figure 7 on page 60 shows the RJ-11 cable design.

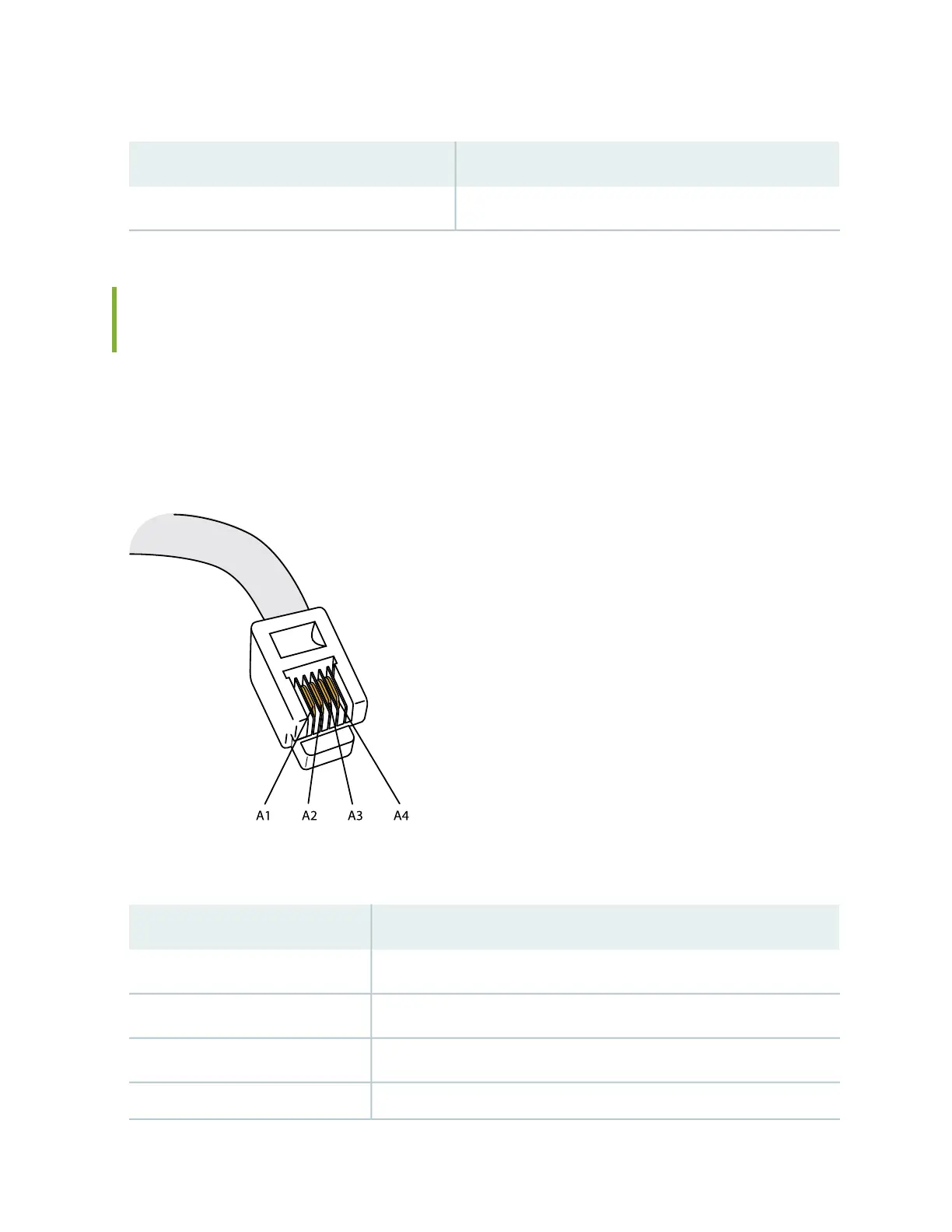

Figure 7: RJ-11 Cable Pinout for 1-Port VDSL2 Annex A (SRX-MP-1VDSL2-R) Mini-PIM
Table 36 on page 60 shows the pin assignments of the RJ-11 cable.
Table 36: RJ-11 Cable Pinout Details for 1-Port VDSL2 Annex A (SRX-MP-1VDSL2-R) Mini-PIM
SignalPin
GroundA1
RX (data input)A2
Tx (data output)A3
Vcc (power)A4
60

Juniper SRX300 Series Specifications

General

Memory	4 GB
CPU	Intel Atom
Storage	8 GB
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	10% to 90% noncondensing
