9.4.5 PR-23-AP mounng specics
The Probe refractometer PR-23-AP is primarily designed for mounting in a tank wall.
To ensure that the measurement is representative and that the prism stays clean, the
probe should be installed close to a stirrer.
K-Patents probe refractometer, types PR-23-AP-T is connected to the process by a
2 1/2" 3A sanitary clamp, Figure 9.10. PR-23-AP-R is connected by 4" sanitary clamp.
Note: For higher process (or ambient) temperatures, use instead a lush mounted
sensor, where the electronics in the sensor head are farther away from the process
heat, Figure 9.11.

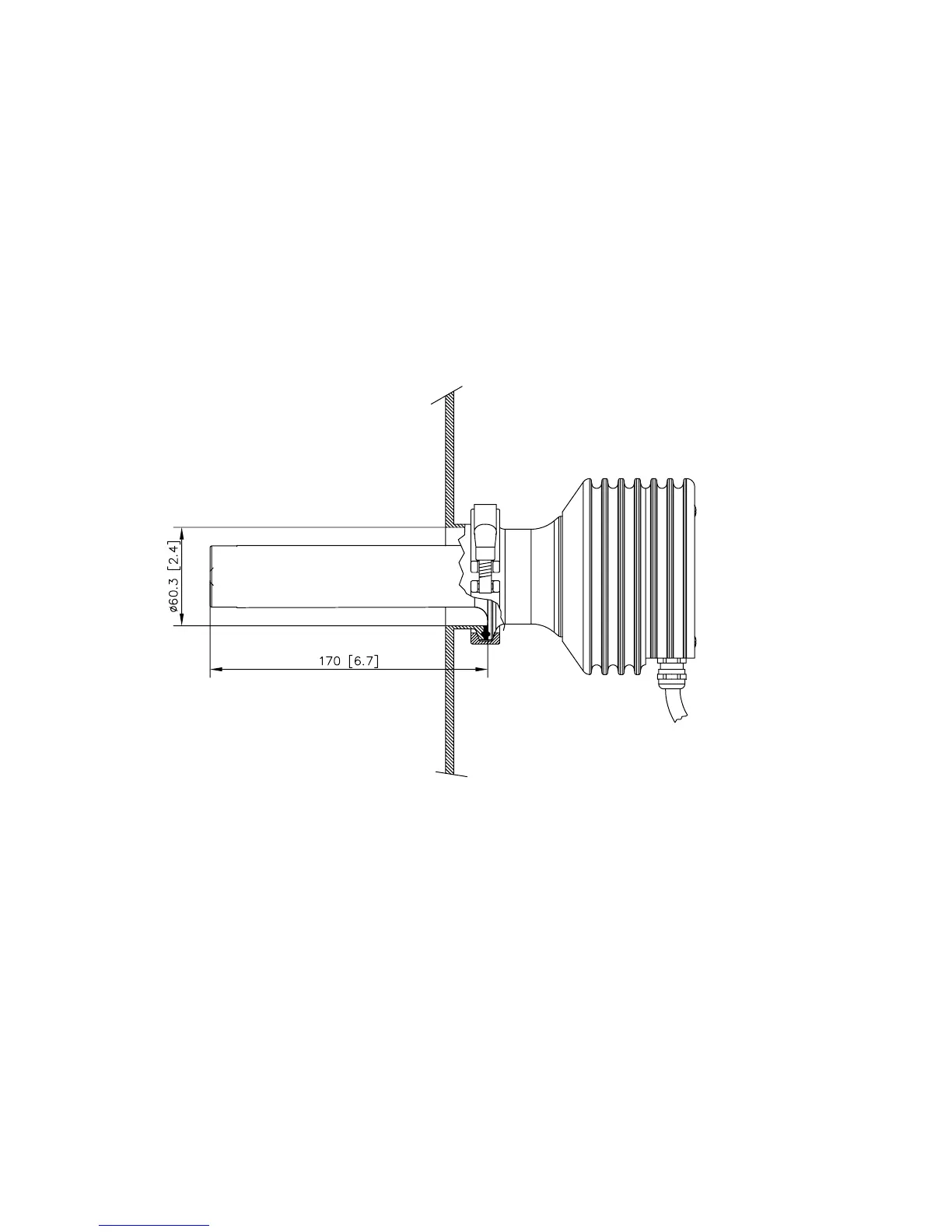

Figure 9.10 Inseron of Probe refractometer PR-23-AP62-TSS
