K-Patents PR-23 User Manual

2 Inline refractometer sensor
5
2 Inline refractometer sensor
2.1 Sensor descripon

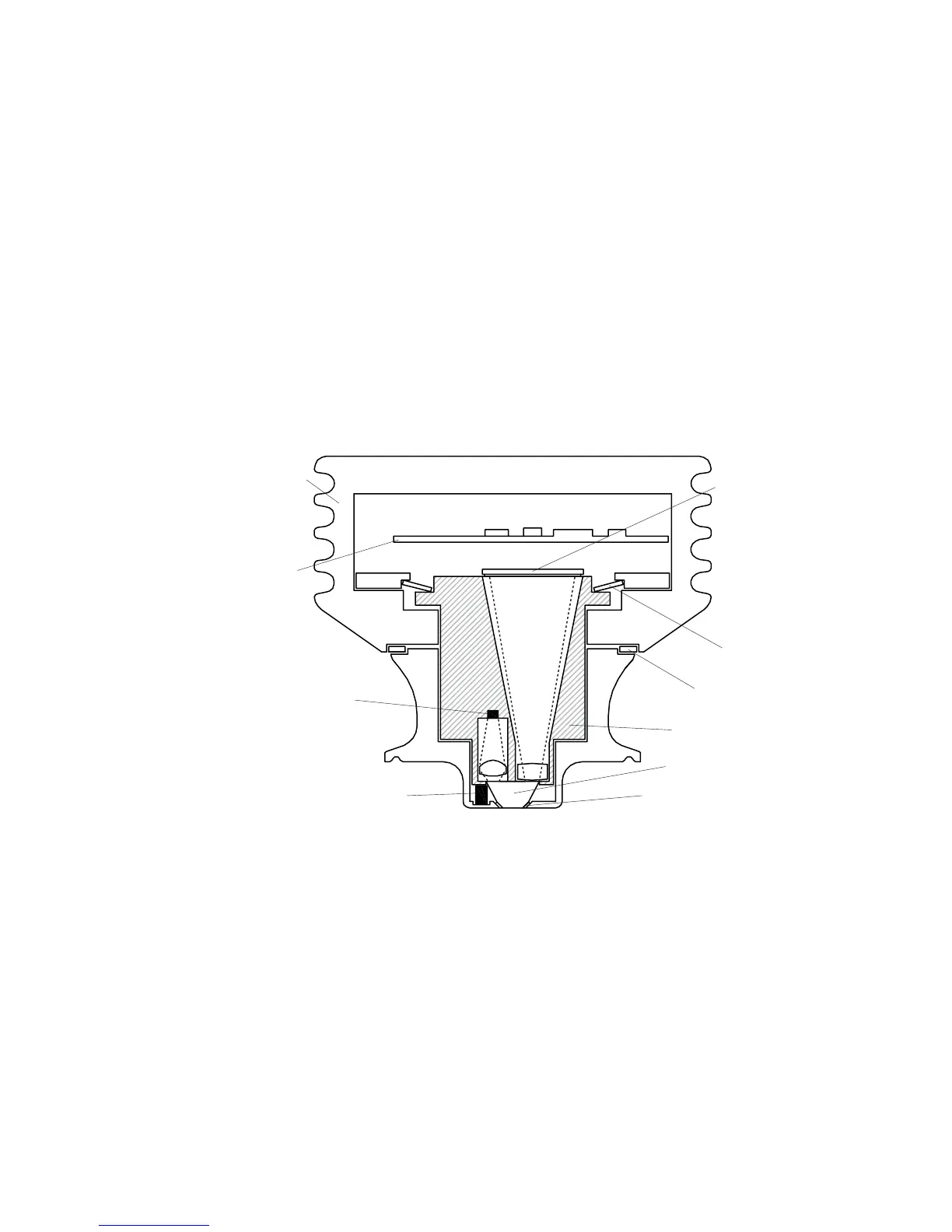

Figure 2.1 below shows a cutaway picture of a PR-23 inline refractometer sensor. The
measurement prism (A) is lush mounted to the surface of the probe tip. The prism
(A) and all the other optical components are ixed to the solid core module (C), which
is springloaded (D) against the prism gasket (B). The light source (L) is a yellow Light
Emitting Diode (LED), and the receiver is a CCD element (E). The electronics is pro-
tected against process heat by a thermal isolator (K) and cooling ins (G). The sensor
processor card (H) receives the raw data from the CCD element (E) and the Pt-1000
process temperature probe (F), then calculates the refractive index n
D
and the process
temperature T. This information is transmitted to the Indicating transmitter.
(A) Prism
(B) Gasket
(C) Core module
(D) Disc spring
(E) CCD element
(F) Temperature probe
(G) Cooling fins
(K) Thermal isolator
(L) Light source
Sensor
processor
card
(H)
Figure 2.1 PR-23 sensor structure
