164

PR-23 instrucon manual

11.4.4 High pressure water piping for SDI2 (eg green liquor)

1

2

2

2

2

3

3

Warning

: Drain valves,

normally closed

Box flushing

before retraction

Prism wash

-see manual 4.2.1 for

recommended wash

pressures and times

No.

Description

MRP

Qty

1

Extended nipple

5344 1

2

1/4" ball valve

PR-3516

4

3

Check valve

PR-3304

2

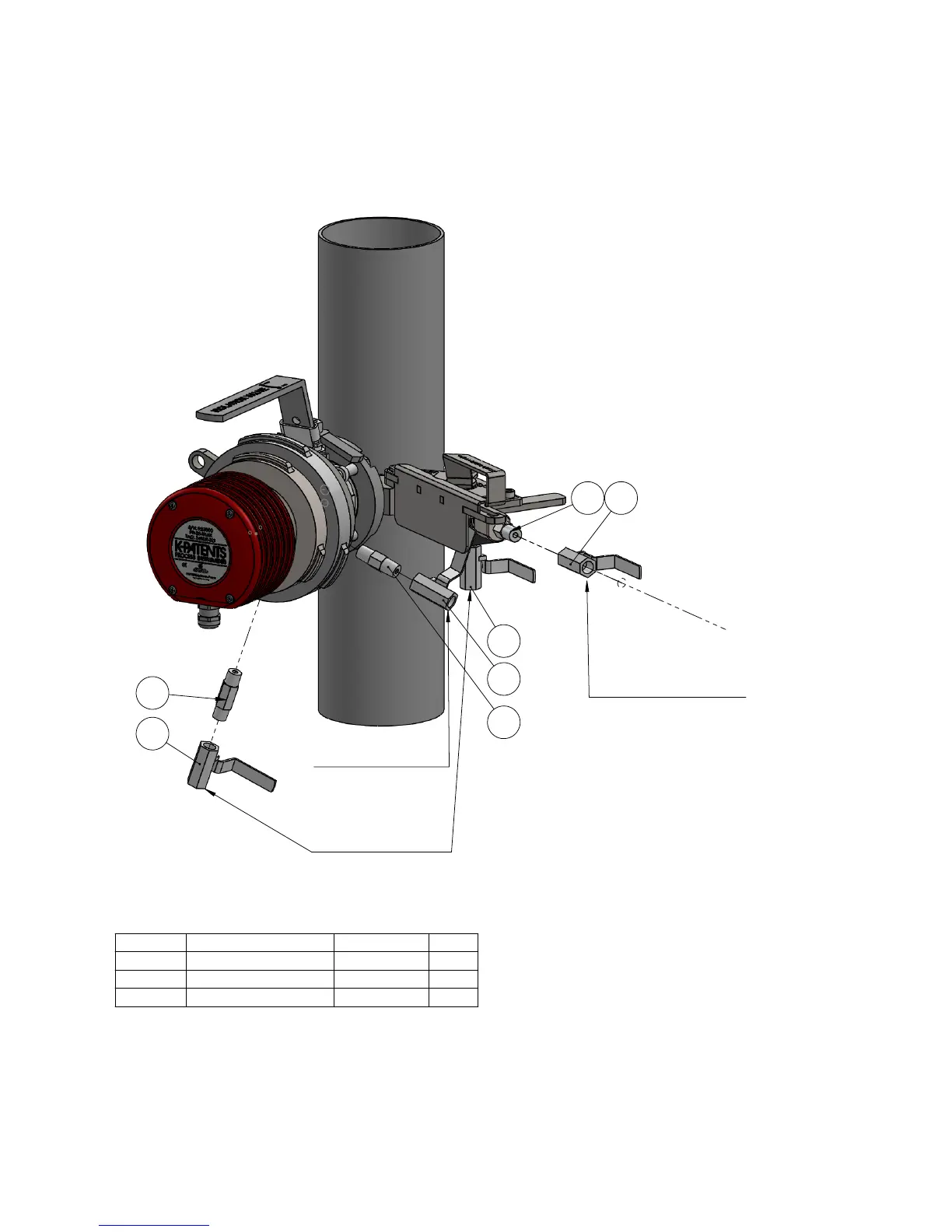

Figure 11.11 Mounng high pressure water wash to isolaon valve
