128
PR-23 instrucon manual
9.8.7 PR-23-M/MS mounng specics
K-Patents Telon body refractometer PR-23-M/MS is connected to the process by a
G1/2" female or a 1/2" NPT process connection, Figure 9.27 below.
Important: Always install PR-23-M/MS with sensor support to prevent the sensor
weight from pulling at the non-metallic piping. See Figure 9.27 for support placement.
4.72
120.0
2.97
75.5
1.24
31.5
7.11
180.7
1 2 3
4
4
G1/2" or
NPT 1/2"
G1/2" or
NPT 1/2"
Suppor sensor here
Note!
Cable downwards
Grounding
screw
Note! Keep sensor
axle horizontal

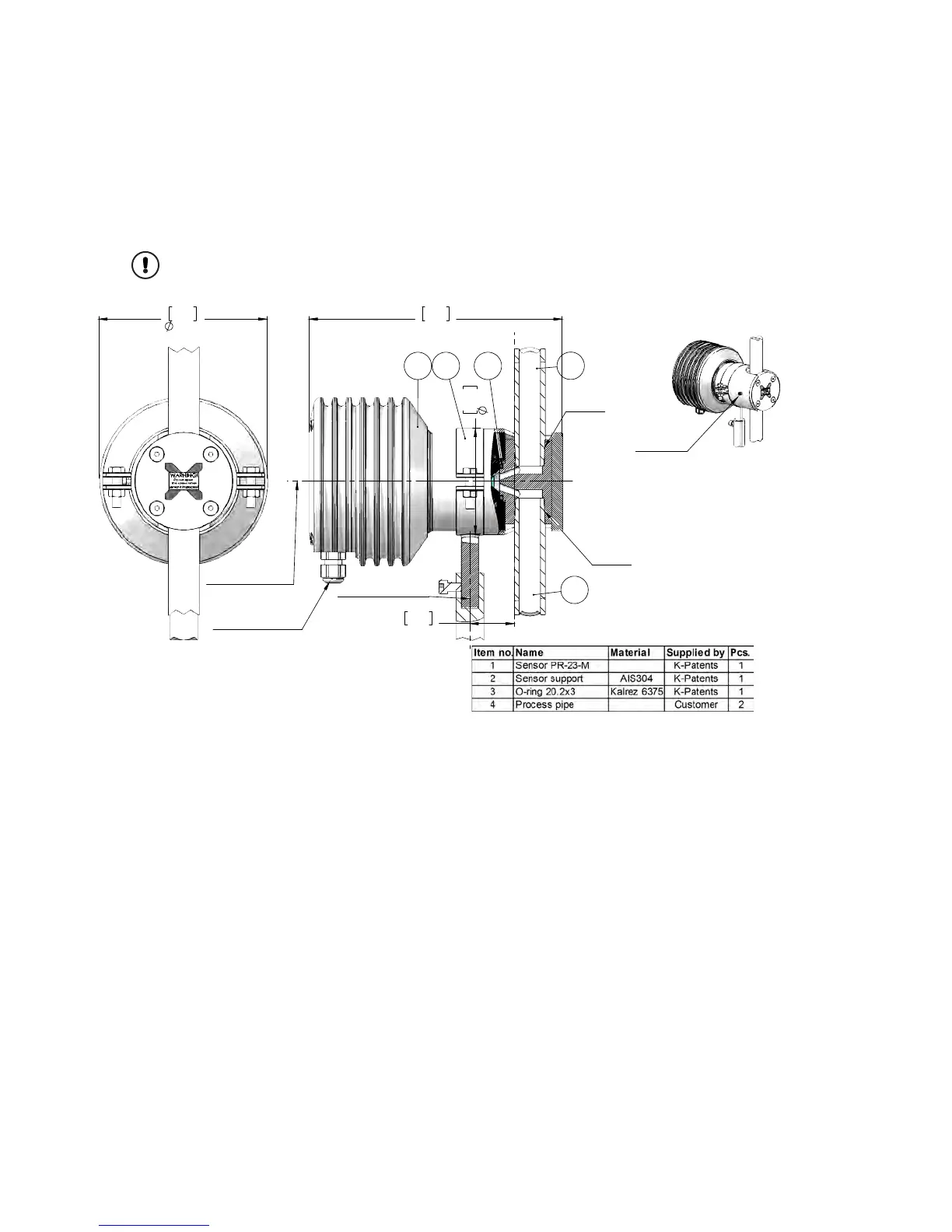

Figure 9.27 G1/2" female process connecon (mm [in])
