K-Patents PR-23 User Manual

124
PR-23 instrucon manual

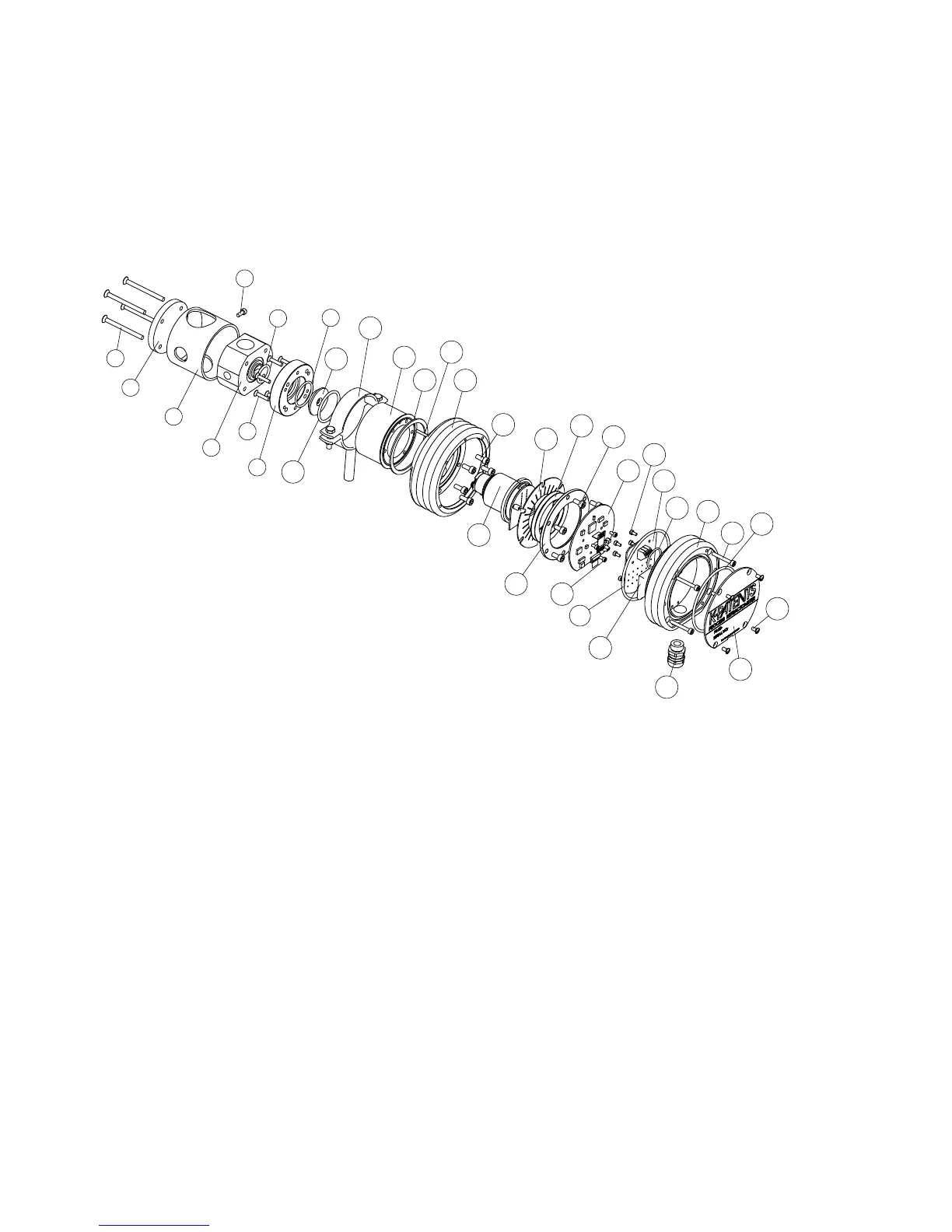

9.8.3 PR-23-M parts list
1
2
3
5
7
6
4
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
28
27
29
32
30
31
33
34
35
Item Pcs. Part No. Descripon
1 4 Screw M5x60 DIN 7991 A4
2 1 PR-23-M endplate
3 1 PR-9129 PR-03/23-M protecon cover
4 1 Screw DIN 912 M4x10 A4
5 1 PR-9120 PR-03/23-M-PV-R05 ow cell (PVDF)
5 1 PR-9121 PR-03/23-M-TF-R05 ow cell (PTFE)
6 1 PR-9252 O-ring 20,2 x 3 Kalrez 6375
7 6 Screw M4 x 20 DIN 7991 A4
8 1 PR-03/23-M headring (PVDF)
9 1 PR-9112 O-ring seal 30.3 x 2.4 FPM
10 1 PR-9126 Sapphire plate for PR-03/23-M
11 1 PR-9113 O-ring seal 37.3 x 3 FPM
12 1 PR-9100 Sensor support
13 1 PR-11101 PR-23-M head
14 1 PR-10048 68x3 O-ring
15 1 Alignment pin
16 1 PR-10005 PR-23 base
16 1 PR-10005-EC PR-23-EC base
17 6 Screw M5x12 DIN 912 A2
6 Locking spacer M5
Item Pcs. Part No. Descripon
18 1 PR-10036 PR-23 compact sensor CORE module
19 1 PR-9011 Thermal conductor
* 1 PR-9010 Disc spring set
20 2 Disc spring
21 1 Disc spring holder
22 6 Screw DIN 912 M5x12 A2
23 1 PR-10103 Sensor processor card
24 4 Screw M3x6 DIN 912 A2
25 4 Screw M3x6 DIN 912 A2
26 1 PR-10300 Bus terminator card
27 1 PR-9108 Dryer for PR-23
28 1 O-ring seal 24 x 2
29 1 PR-10000 PR-23 cover
29 1 PR-10000-EC PR-23-EC cover
30 4 Screw M4x30 DIN 912 A4
31 1 PR-10002 O-ring seal 82x3
32 1 Cable gland M16x1.5
33 1 PR-23-M nameplate
34 4 Screw M4x8 DIN 964 A4
35 1 O-ring seal 89.5 x 3
