132
PR-23 instrucon manual

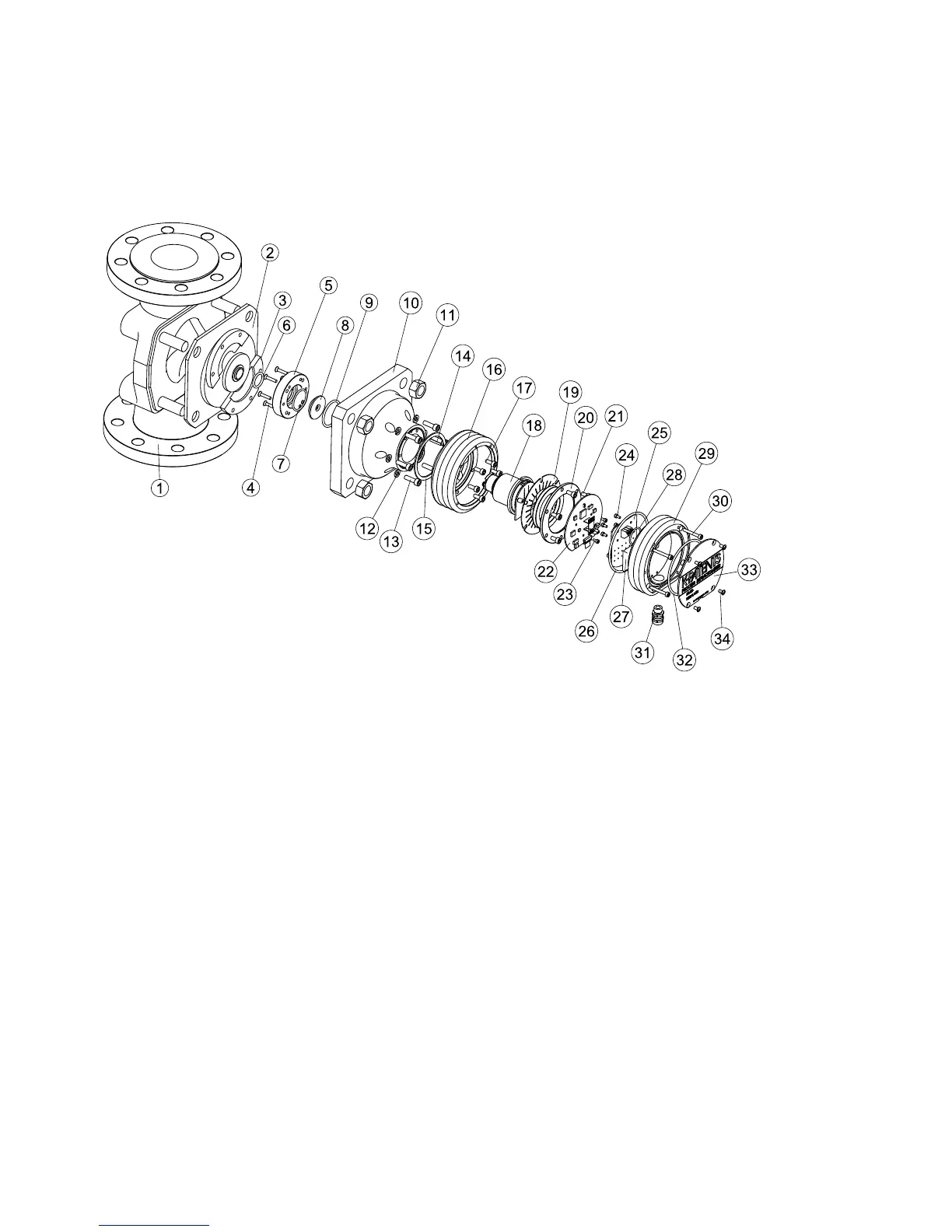

9.9.3 PR-23-W parts list
Item Pcs. Part No. Descripon
1 1 Saunders valve body PFA/ETFE lining ANSI 2”/DIN 50/JIS 50
1 1 Saunders valve body PFA/ETFE lining ANSI 3”/DIN 80/JIS 80
1 1 Saunders valve body PFA/ETFE lining ANSI 4”/DIN 100/JIS 100
2 1 Facing for 2” valve body
2 1 Facing for 3” valve body
2 1 Facing for 4” valve body
3 2 Split disc
4 6 Screw M4x20 DIN 7991 A4
5 1 PR-03/23-W headring (PVDF)
6 1 PR-9252 O-ring seal 20.2 x 3.0 Kalrez 6375
7 1 PR-9112 O-ring seal 30.3 x 2.4 FPM
8 1 PR-9122 Sapphire plate for PR-03/23-W
9 1 PR-9113 O-ring seal 37.3 x 3 FPM
10 1 PR-11018 PR-23-W 2” head
10 1 PR-11019 PR-23-W 3” head
10 1 PR-12020 PR-23-W 4” head
11 4 Nuts DIN 934 M16 A4
12 6 Washers DIN 127 M6 A4
13 6 Screws DIN 912 M6x20 A4
14 1 PR-10048 68x3 O-ring
15 1 Alignment pin
16 1 PR-10005 PR-23 base
17 6 Screw M5x12 DIN 912 A2
6 Locking spacer M5
18 1 PR-10012 PR-23 compact sensor CORE module
19 1 PR-9011 Thermal conductor
Item Pcs. Part No. Descripon
* 1 PR-9010 Disc spring set
2 Disc spring
20 1 Disc spring holder
21 6 Screw M5x10 DIN 912 A2
22 1 PR-10103 Sensor processor card
23 4 Screw M3x6 DIN 912 A2
24 4 Screw M3x6 DIN 912 A2
25 1 PR-10300 Bus terminator card
26 1 O-ring seal 89.5 x 3
27 1 PR-9108 Dryer for PR-23
28 1 O-ring seal 24 x 2
29 1 PR-10000 PR-23 cover
30 4 Screw M4x30 DIN 912 A4
31 1 Cable gland M16x1.5
32 1 PR-10002 O-ring seal 82x3
33 1 PR-23-W nameplate
34 4 Screw M4x8 DIN 964 A4
