K-Patents PR-23 User Manual

9 Sensor specicaons
77
9 Sensor specicaons
Note: For the speciications of the PR-23-SD sensor for K-Patents Safe-Drive™ system,
see Sections 11.2 and 10.4.

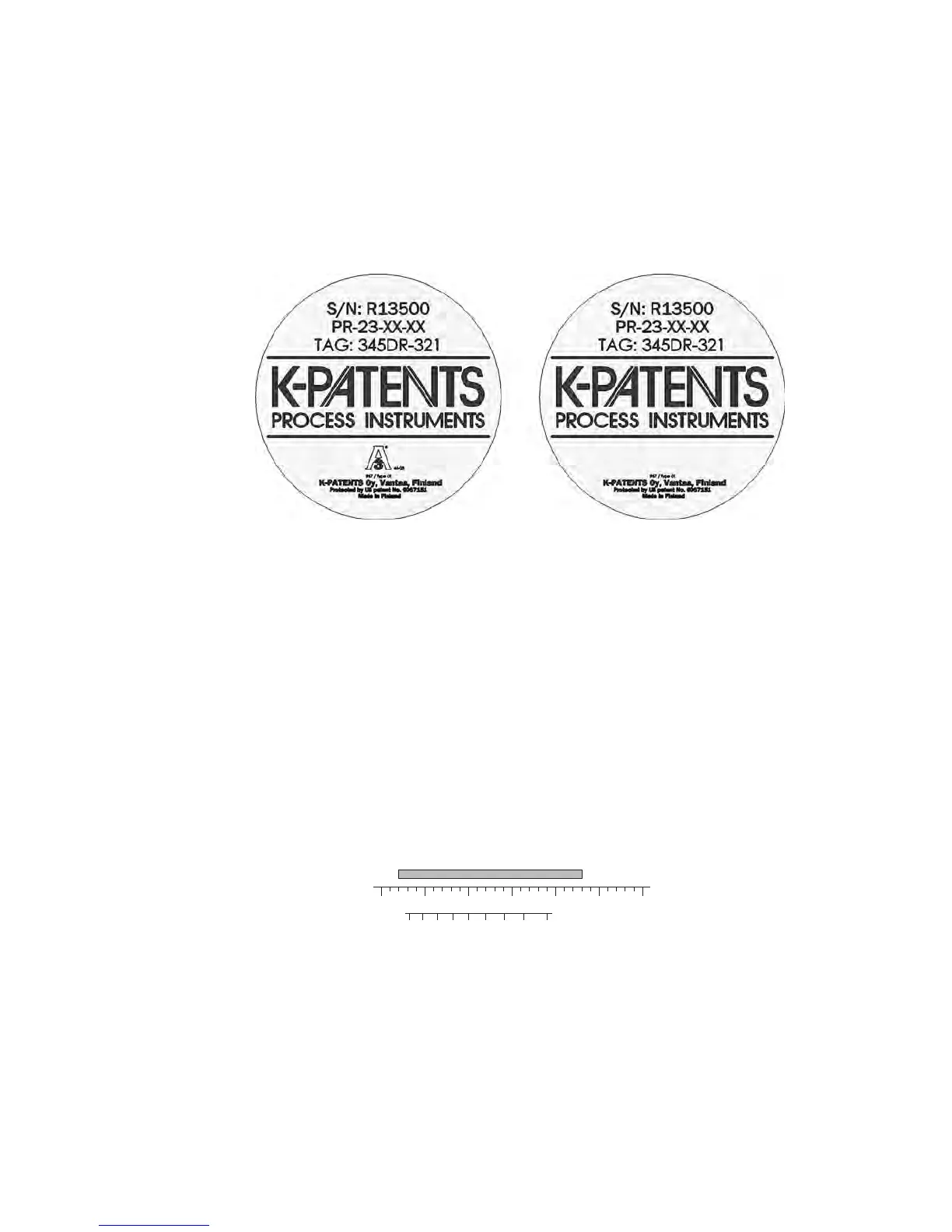

Figure 9.1 Sensor nameplates
9.1 Sensor compability
Electrically: All the K-Patents PR-23 refractometer sensors are interchangeable. The
PR-23 sensors are not interchangeable with the PR-01 and PR-03 range sensors. Fur-
thermore, the PR-23 sensors are not compatible with the K-Patents PR-01 / PR-03
indicating transmitter IT-R.
Mechanically: The sanitary process refractometer PR-23-AC-62-HSS its the same
2 1/2" sanitary process connection as the sanitary refractometer PR-03-A62-HSS.
9.2 Sensor rangeability
The refractive index standard range of a PR-23 refractometer sensor is 1.320–1.530
(corresponds to 0–100 Brix), Figure 9.2.
1.30 1.35 1.40 1.45 1.50 1.55 1.60
n
D
400 1020
30
50 60 70 80
BRIX
Figure 9.2 PR-23 rangeability
