PR-23 instrucon manual

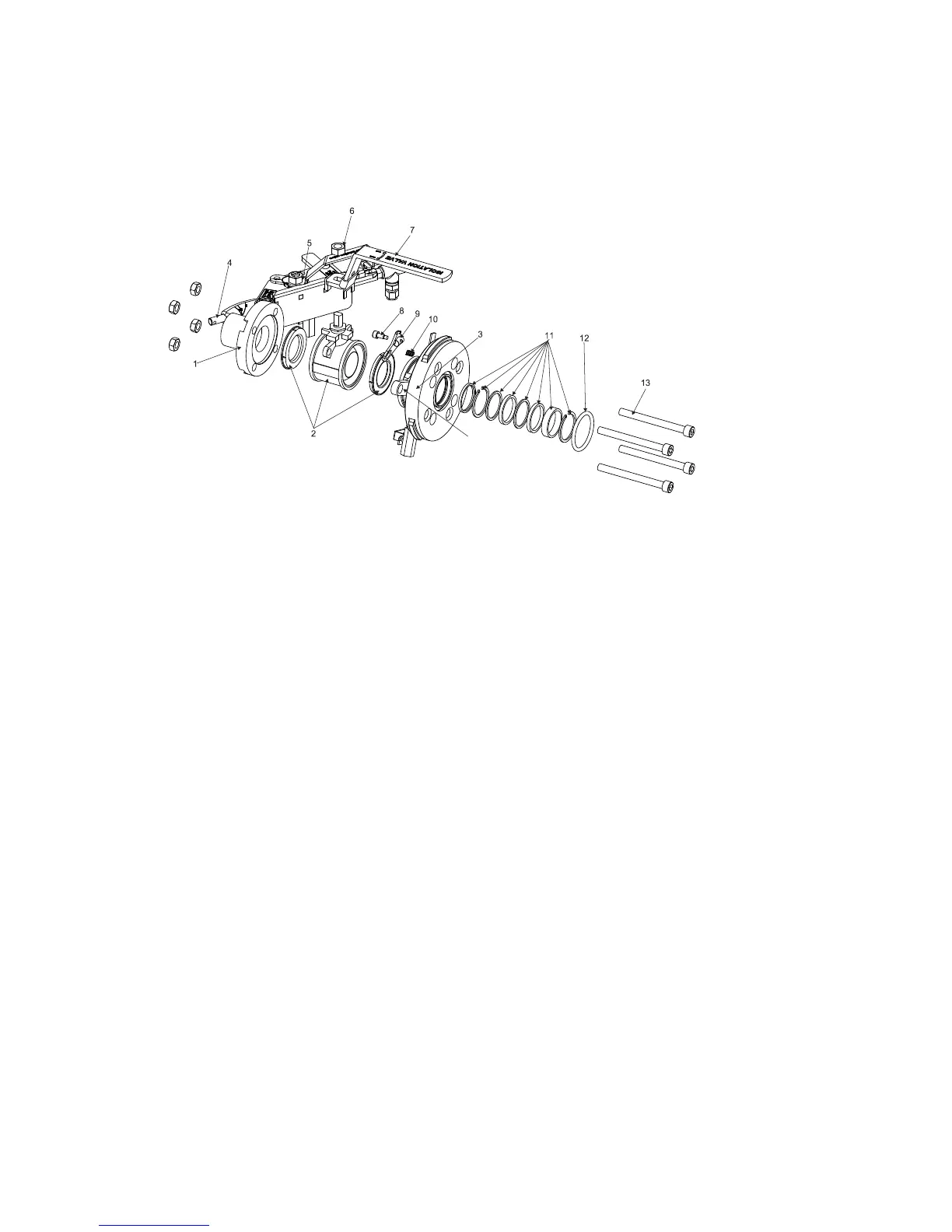

11.3.2 Safe-Drive™ Isolaon valve

Item Pcs. Part No. Descripon

1 1 PR-11000 SDI ange and nozzle

weld assembly SAF 2205

* 1 PR-11001 DN 40 ball valve assembly: parts 2, 6, 7

2 1 DN 40 ball valve

* 1 PR-11007 SDI body assembly: parts 3, 8, 9, 10

3 1 SDI body

4 1 PR-11023 SDI steam wash nozzle SN

4 1 PR-11024 SDI high pressure wash nozzle WP

5 1 PR-11015 SDI nozzle ball valve 3/8

Item Pcs. Part No. Descripon

6 1 M12 nut A4

7 1 SDI isolaon valve handle

8 1 Safety lock screw

9 1 Safety lock

10 1 Spring 1.5x14x20 Lesjöfors no. 2371

11 1 PR-11002 SDI box packing set

12 1 PR-11003 O-ring 50x5 EPDM

13 4 PR-11008 DIN 912 M10 x 110 screw + nut

14 1 PR-11026 Locking bracket for isolaon valve
