176
PR-23 instrucon manual

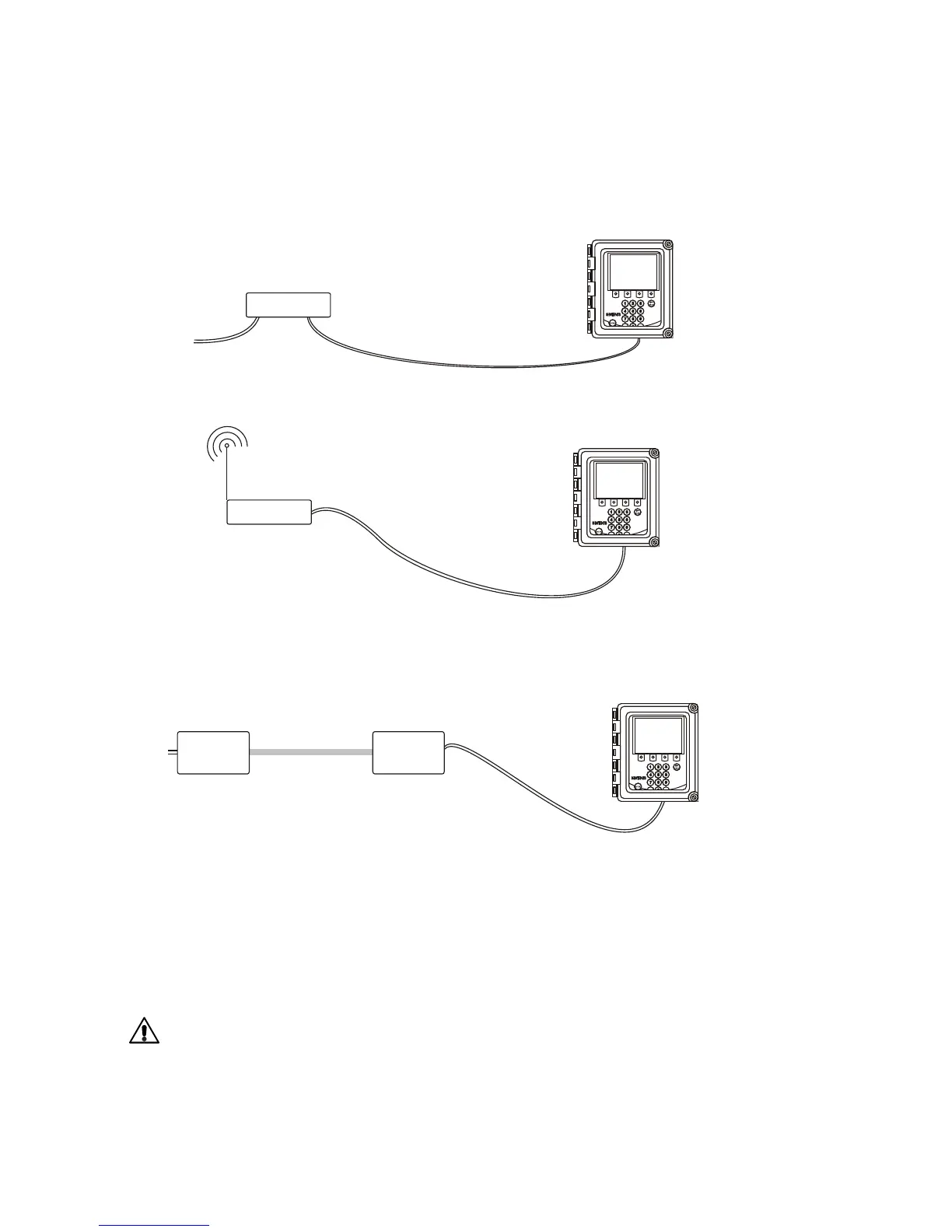

If you are connecting the DTR to a hub or switch or WLAN access point, please con-
sult the user’s guide of your hub/switch/access point for the correct cable type (Fig-
ures 12.3 and 12.4).
PROCESS INSTRUMENTSPROCESS INSTRUMENTS
POWERPOWER
Hub/Switch
Check hub/switch manual
for Ethernet cable type
Figure 12.3 Connecng a DTR to a hub or a switch.
PROCESS INSTRUMENTSPROCESS INSTRUMENTS
POWERPOWER
WLAN
Access
point
Check WLAN manual
for Ethernet cable type
Figure 12.4 Connecng DTR to WLAN.
If you need a longer cable or the environment is electrically noisy, use iber optics
Ethernet with media converters (Figure 12.5).
PROCESS INSTRUMENTSPROCESS INSTRUMENTS
POWERPOWER
Fiber
Media
converter
Media
converter
Check media
converter manual
for Ethernet
cable type
Figure 12.5 Using ber opcs Ethernet.
12.1.2 Connecng the Ethernet cable
To connect the Ethernet cable to the DTR, open the DTR’s enclosure cover, loosen the
front panel screw and open the front panel. The Ethernet connector is behind the
front panel, see Figure 12.6. Plug one end of an appropriate Ethernet cable into the
connector. Plug the other end into your PC/LAN socket/hub/switch/access point.
Warning! While it is possible to connect and disconnect the Ethernet cable when
the DTR is powered on, for your safety we recommend that you turn off the power (by
using the external power switch) before opening the DTR’s front panel.
