K-Patents PR-23 - PR-23-RP Dimensions

To Next Page

To Previous Page

116

PR-23 instrucon manual

9.7.5 PR-23-RP dimensions

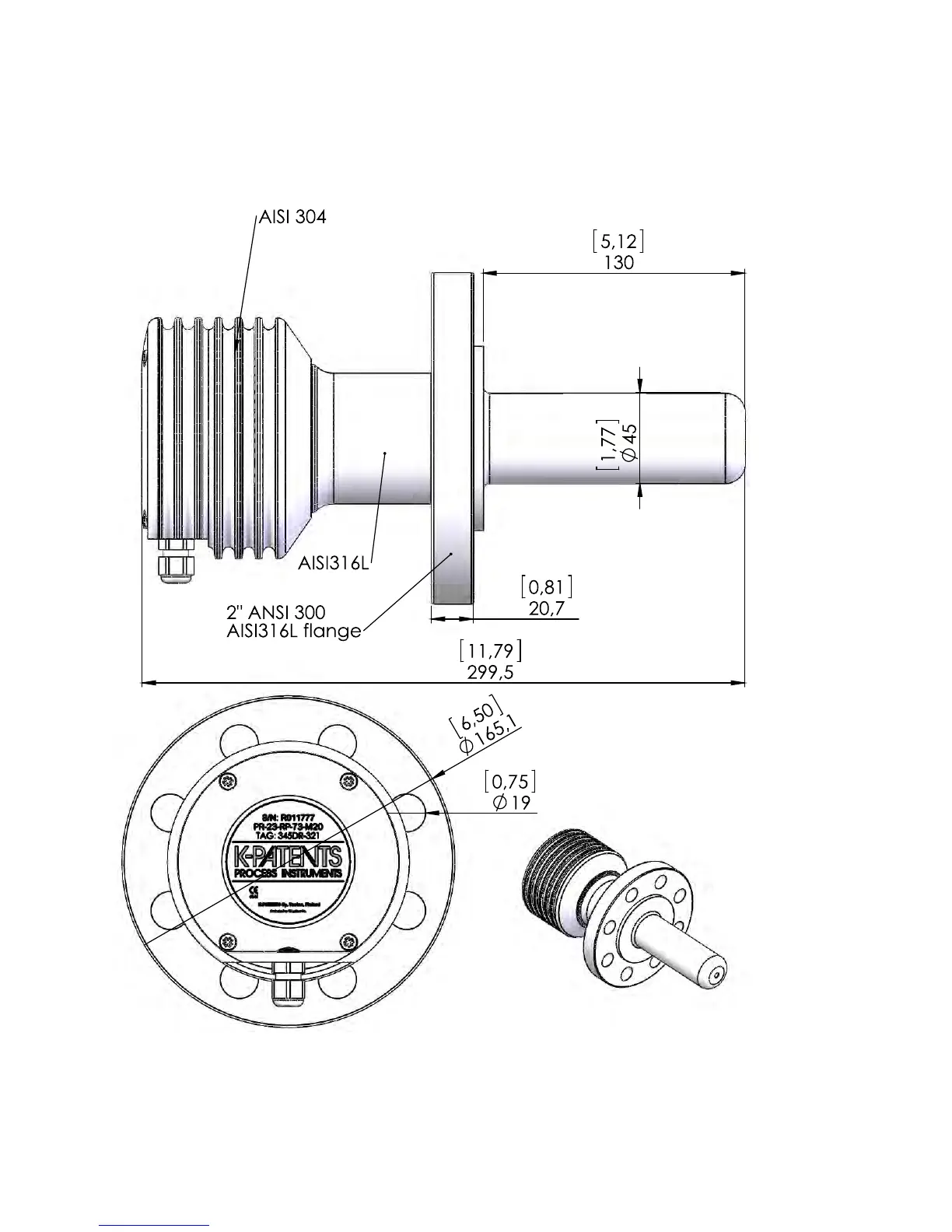

Figure 9.22 PR-23-RP-73-M20
