14 Regulatory compliance and cercaons

195

14 Regulatory compliance and cercaons

14.1 Declaraon of Conformity for PR-23 series of

refractometers

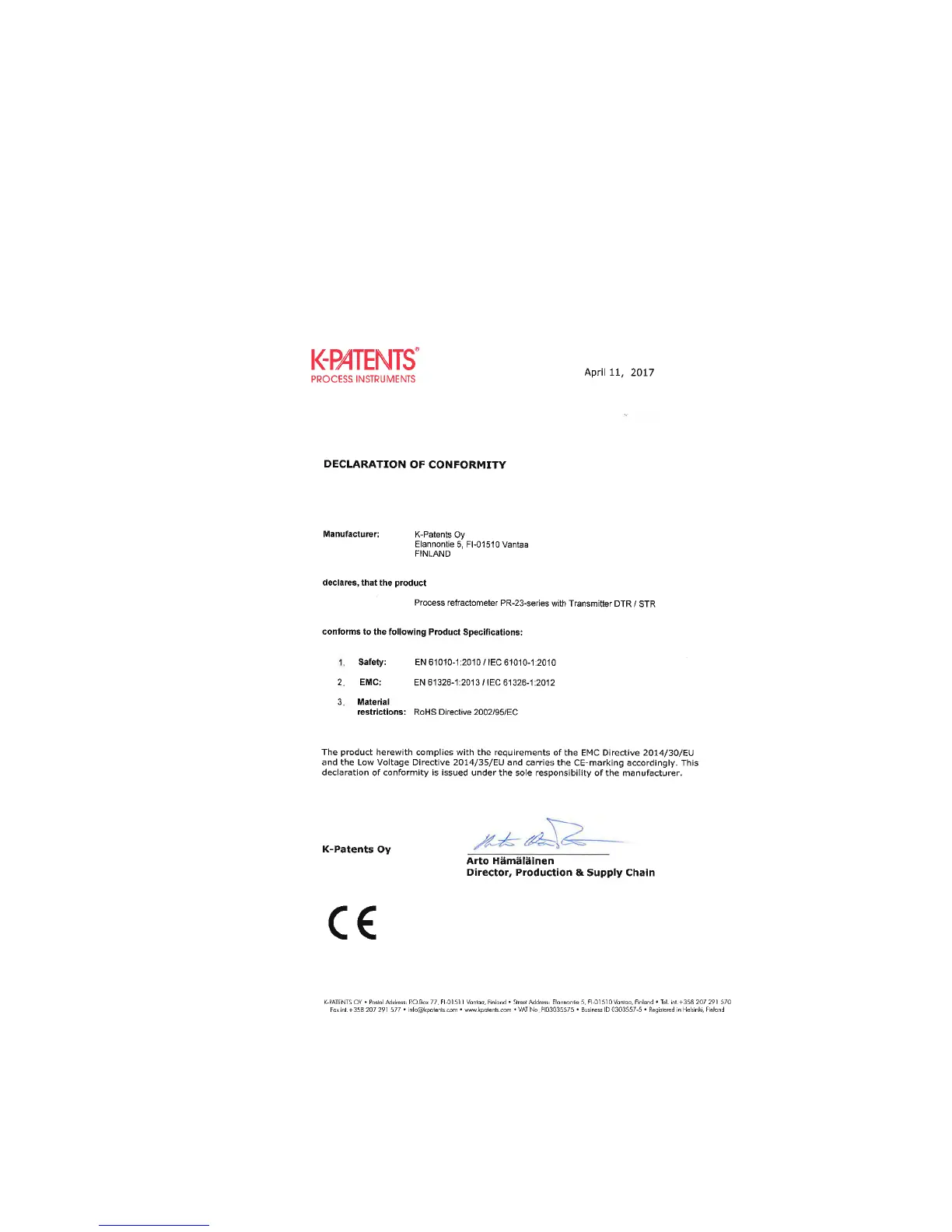

The following Declaration of Conformity conirms compliance with the applicable

EU/EEA requirements and applies to all K-Patents PR-23 refractometer models:
