K-Patents PR-23 User Manual

9 Sensor specicaons
109

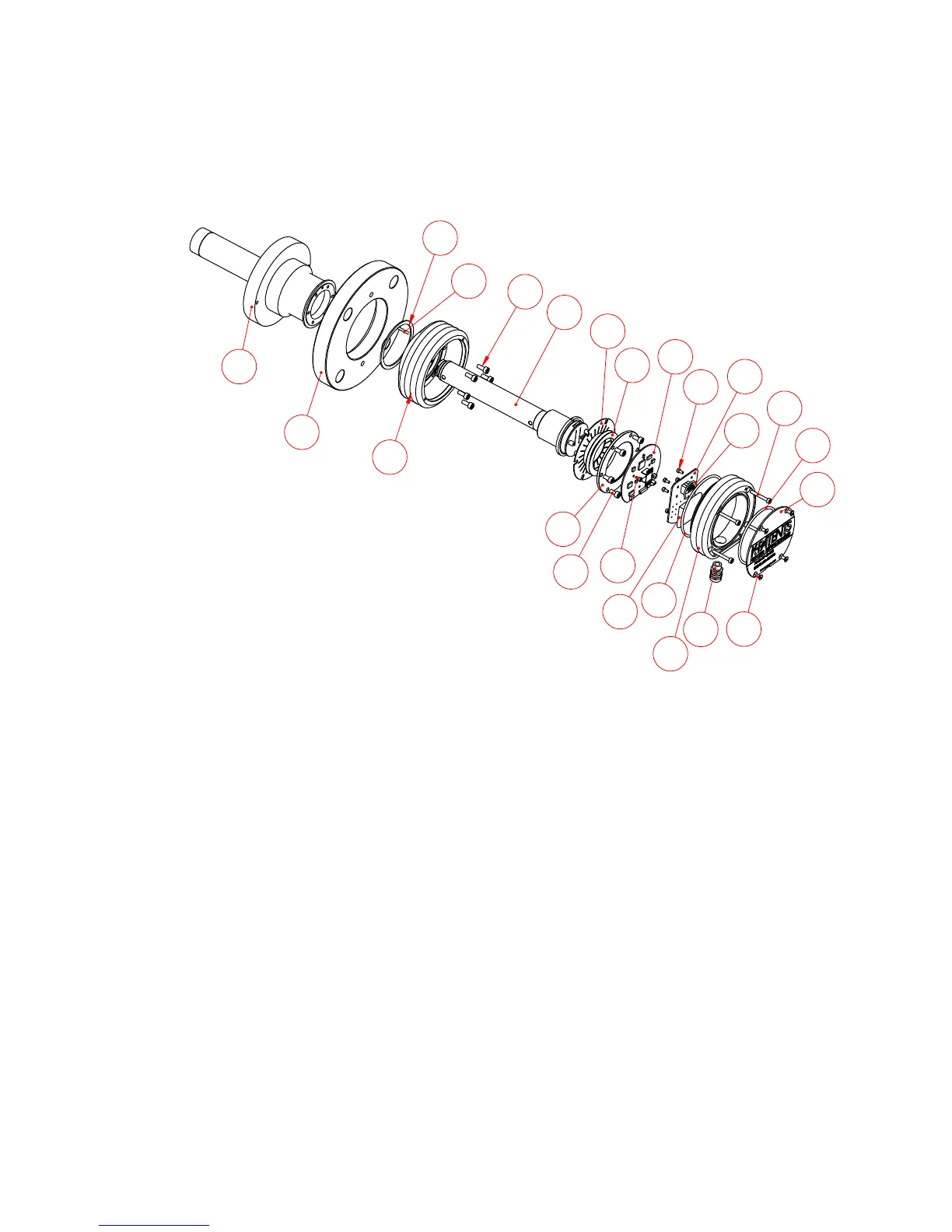

9.6.3 PR-23-GP parts list
1
2
3
4
5
6
7
8
9
10
12
13
13
14
15
17
18
23
19
20
21
22
11
16
Item Pcs. Part No. Descripon
1.1 1 PR-10009 PR-23-GP-L head
1.2 1 PR-10010 PR-23-GP-D head
1.3 1 PR-10011 PR-23-GP-D-NC head
2 1 ANSI 3” 150 lbs ange
2 1 DIN 80 PN 25 ange
2 1 JIS 80A 10k ange
3 1 PR-10048 68x3 O-ring
4 1 Alignment pin
5.1 1 PR-10005 PR-23 base
5.2 1 PR-10005-SC PR-23 base SS
5.3 1 PR-10005-EC PR-23 base EC
6 6 Screw M5x12
6 Locking spacer M5
7 1 PR-10022 PR-23-P core
8 1 PR-9011 Thermal conductor
* 1 PR-9010 Disc spring set
9 2 Disc spring
10 1 Disc spring holder
11 6 Screw M5x10 DIN 912 A2
Item Pcs. Part No. Descripon
12 1 PR-10103 Sensor processor card
13 8 Screw M3x6 DIN 912 A2
14 1 PR-10300 Bus terminator card
15 1 O-ring seal 24x2
16 1 PR-9108 Dryer for PR-23
17 1 O-ring seal 89.5x3
18.1 1 PR-10000 PR-23 cover
18.2 1 PR-10000-SC PR-23 cover SS
18.3 1 PR-10000-EC PR-23 cover EC
19 4 Screw M4x30 DIN 912 A4
20 1 PR-10002 O-ring seal 82x3
21 1 PR-23 nameplate
22 4 Screw M4x8 DIN 964 A4
23 1 Cable gland M16x1.5
