K-Patents PR-23 User Manual

9 Sensor specicaons
133
9.9.4 PR-23-W mounng specics
PR-23-W Saunders valve body lowcell can be mounted either vertically or horizon-
tally. Special sensor support is not needed as the valve body (piping) supports the
sensor. Either way sensor cover should always be horizontal to avoid sedimentation
or gas/air pocket on the prism. Also installation after pump, before valve and low
installation point will reduce risk of air/gas pocket. Recommended low velocity is
1.5–6m/s (5–20ft/s).
A
D
E
B
F
C
51Nm
37lbs.ft.
60Nm
44lbs.ft.
53Nm
39lbs.ft.
Related drawing.
No modification permitted
without the approval of
the authorized person.
PR-23-W SVB 050
PR-23-W SVB 080
PR-23-W SVB 100
Appr.
Drawn
Drawing number
Drawing description
Mass
General tolerances
DIM
-
29.01.2015 HS
29.01.2015 TL
-
Revision
DIM450 C
Scale
1:3
PR-23-W & SVB
Material

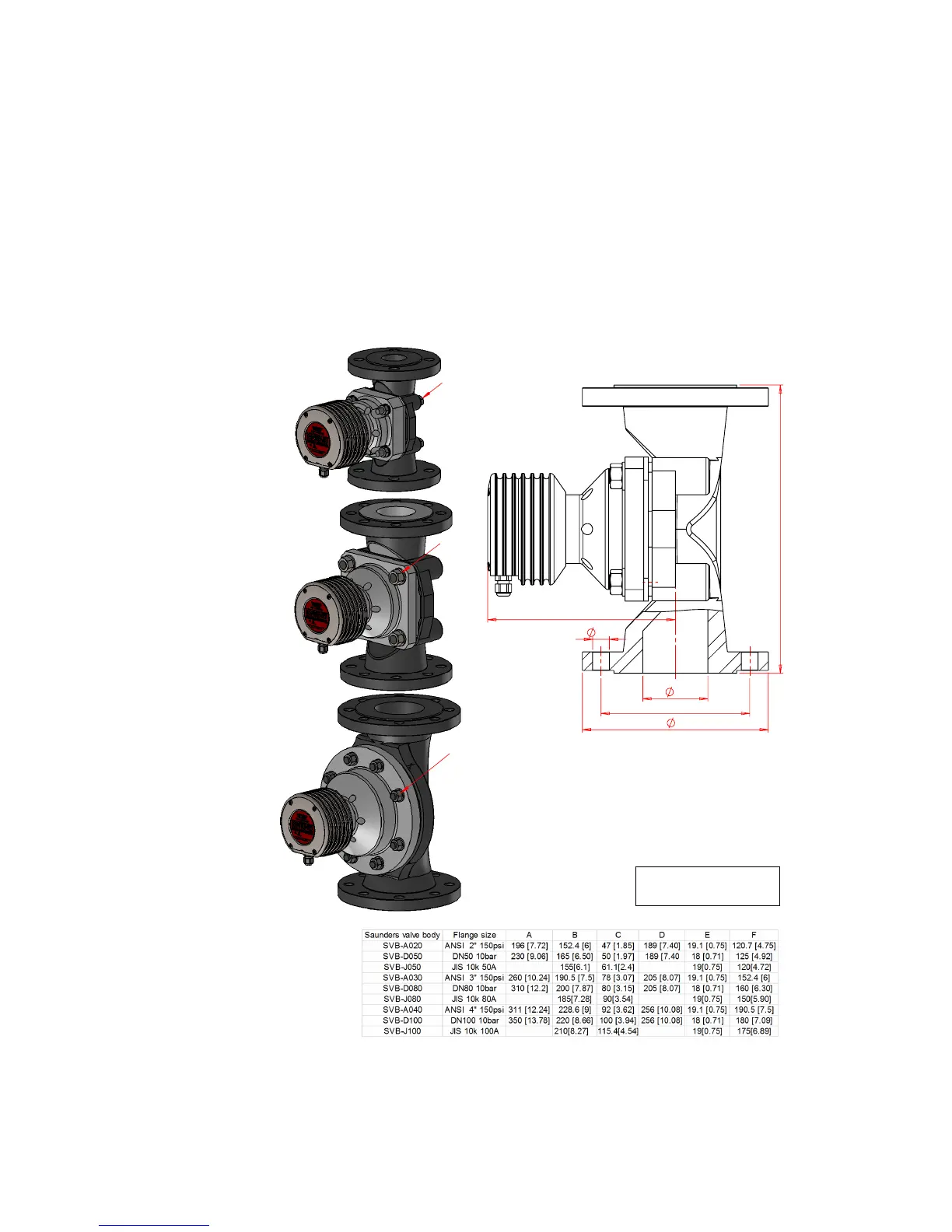

Figure 9.29 PR-23-W mounng
