K-Patents PR-23 User Manual

11 Safe-Drive™
155

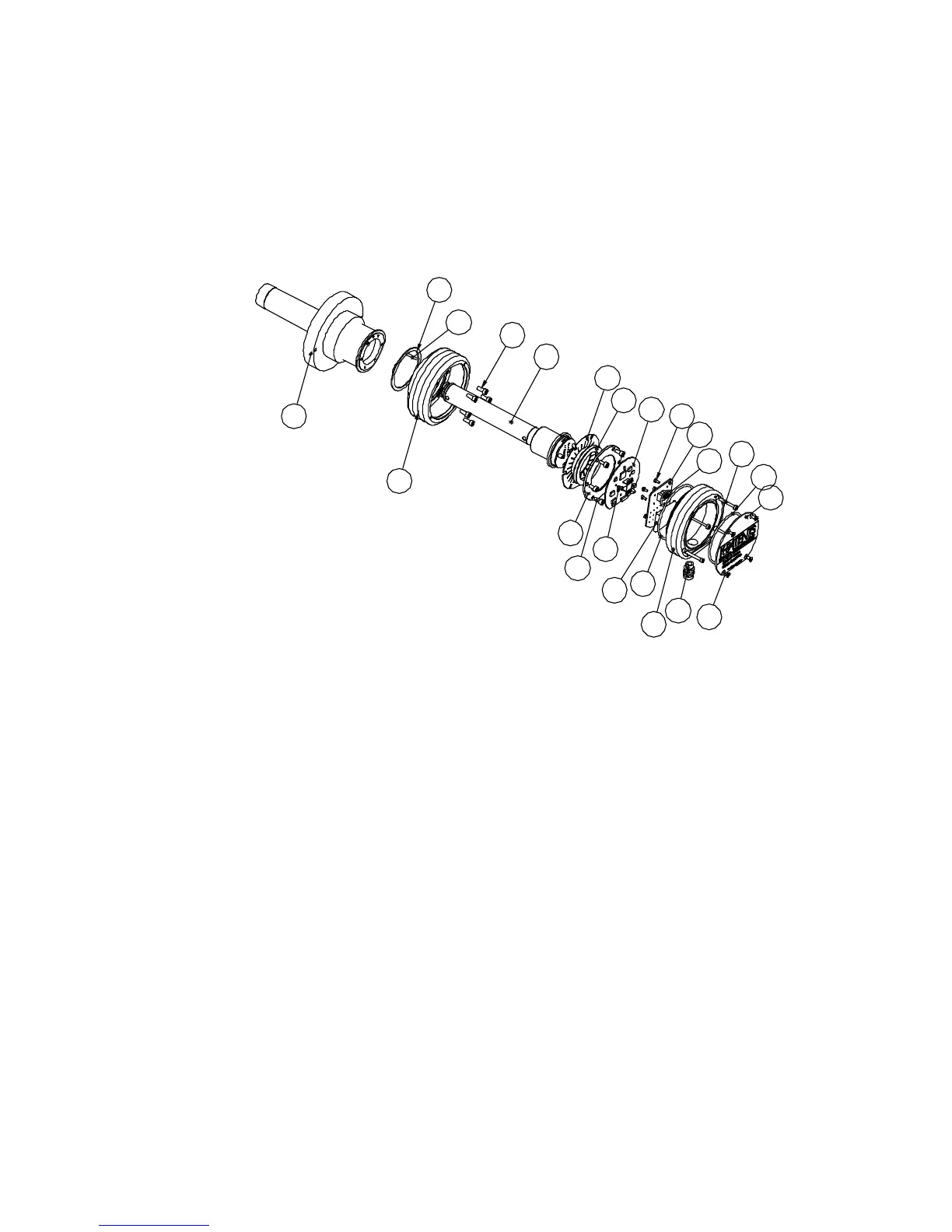

11.3 Parts lists
11.3.1 PR-23-SD sensor
3
4
6
7
8
9
12
13
14
15
19
20
21
1
5
10
11
13
16
17
18
23
22
Item Pcs. Part No. Descripon
1 1 PR-10015 PR-23-SD head
2 1 Safe-Drive™ ange
3 1 Thermal insulator Teon
®
4 1 Alignment pin
5 1 PR-10005 PR-23 base
6 6 Screw M5x10 DIN 912 A2
7 1 PR-10022 PR-23-P core
8 1 PR-9011 Thermal conductor
* 1 PR-9010 Disc spring set
9 2 Disc spring
10 1 Disc spring holder
Item Pcs. Part No. Descripon
11 6 Screw M5x10 DIN 912 A2
12 1 PR-10101 Sensor processor card
13 8 Screw M3x5 DIN 7380 A4
14 1 PR-10300 Bus terminator card
15 1 O-ring seal 24x2
16 1 PR-9108 Dryer for PR-23
17 1 O-ring seal 89.5x3
18 1 PR-10000 PR-23 cover
19 4 Screw M4x30 DIN 912 A4
20 1 PR-10002 O-ring seal 82x3
21 1 PR-23-SD nameplate
22 4 Screw M4x8 DIN 964 A4
23 1 Cable gland M16x1.5
