32
PR-23 instrucon manual

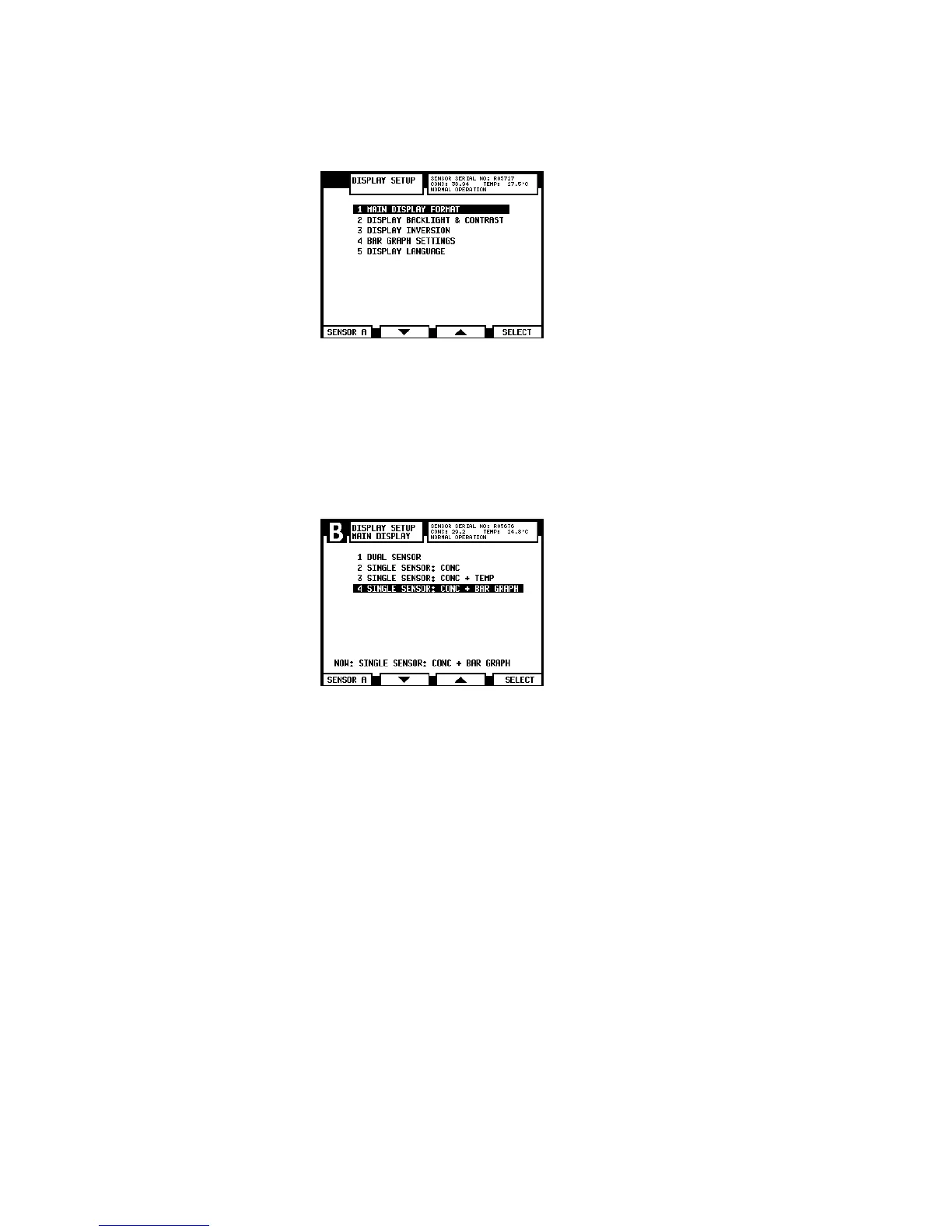

Figure 5.3 Display setup menu
Main display format: As you can see in Figure 5.1, there are four different Main dis-
play formats: the dual sensor format shows information on both sensors while the
three different single sensor formats show selected information on one sensor at a
time. Choose 1 MAIN DISPLAY FORMAT in the Display setup menu to change the Main
display. The current format is shown on the display format selection display, see Fig-
ure 5.4 below.
Figure 5.4 Main display format selecon.
Note: An automatic 60 s (in veriication 5 min) timeout will make backsteps from
any display until the Main display is reached.
Display appearance: The 2 DISPLAY BACKLIGHT & CONTRAST can be selected from the
Display setup menu (Figure 5.3). The values can be changed by using the arrow soft
keys or alternatively a one digit input, for example 8 designates 80 % when adjusting
contrast.
The 3 DISPLAY INVERSION contains two choices. The default setting of the display is 1
POSITIVE DISPLAY, i.e. yellow background and black text. However, in some environ-
ments the display may be clearer if 2 NEGATIVE DISPLAY, i.e. black background and yel-
low text, is chosen.
Bar graph settings: The command 4 BAR GRAPH allows you to set the bar graph span
and zero separately for sensors A and B.
Note: Bar graph is only visible when Main display is in the bar graph format, see
above.
Display language: The command 5 DISPLAY LANGUAGE lets you choose the DTR display
language from the existing display languages, i.e. the languages that are loaded into
