Terminate Input Wiring
The following sub-headings review termination of door, exit, and auxiliary alarm input wiring.
Door Monitoring Connections
A normally-closed door contact is for monitoring door security. The door input is shunted during the door relay
unlock time.

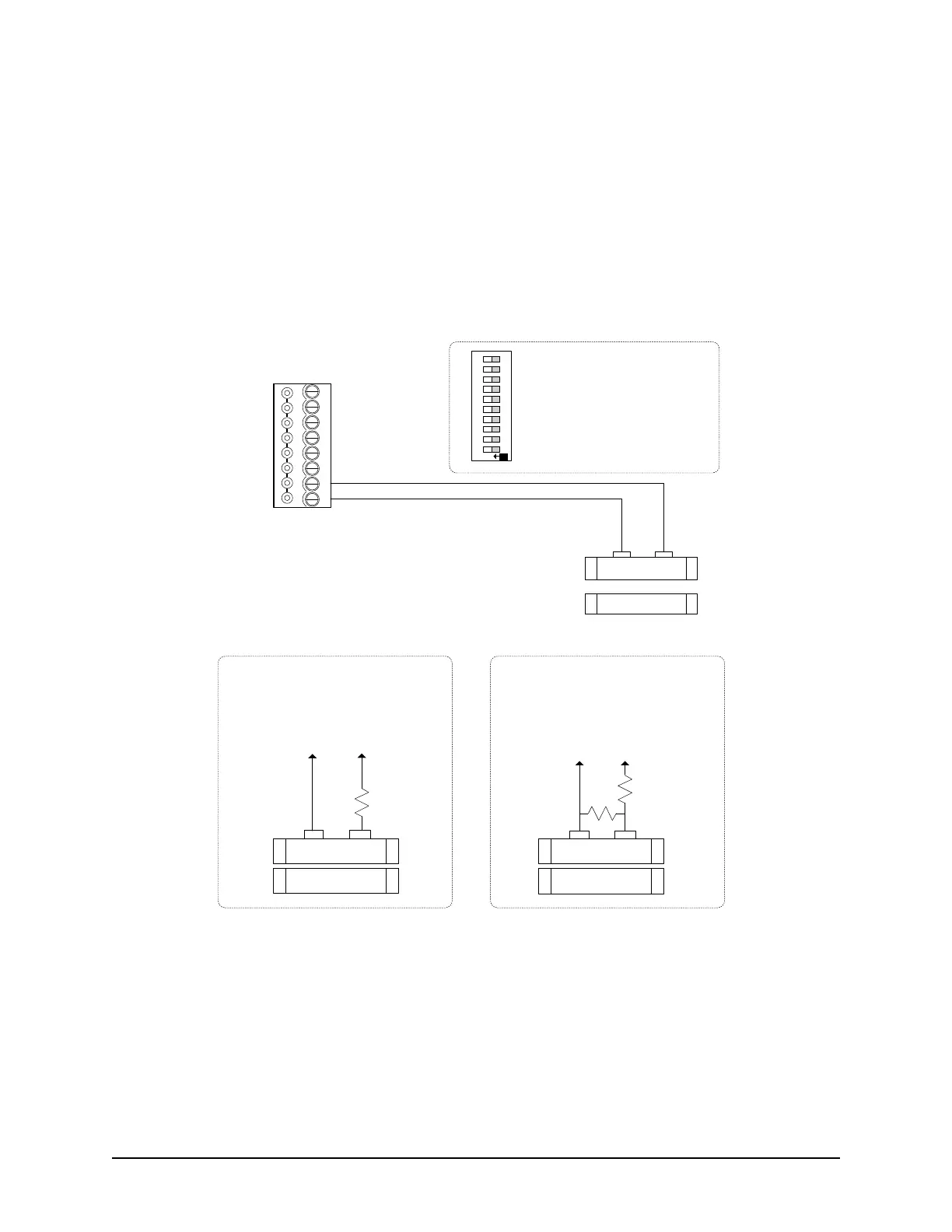

Figure 14 – Terminate Input Wiring – Door Inputs (Contacts)
Cut View of CA150B
Door Contacts
to Door (+)
to Door (-)
1K
Single end of line supervision
Normally Closed
S2.8 = OFF
S2.7 = ON
to Door +
1K
Double end of line supervision
Normally Closed
S2.8 = ON
S2.7 = ON
3K
Non-supervised
Normally Closed
S2.8 = OFF
S2.7 = OFF
S2.7 and S2.8 set the
supervision type universally.
The jumper setting affects
the Door Input, RTE Input,
and AUX Inputs.
NC
COM
NCCOM
NC
COM
S2
RDR/SUPV. CONFIG.
to Door -
DOOR
RTE AUX1 AUX2
-
+
-
+
-
+
-
+
KI-00333E-02-14
ON
6
7
8
9
10
2
3
4
5
1
