Keyscan Inc. A Me
mber of the Kaba Group
–
CA150 Re
v. B Installation Gu
ide (07.15)
89

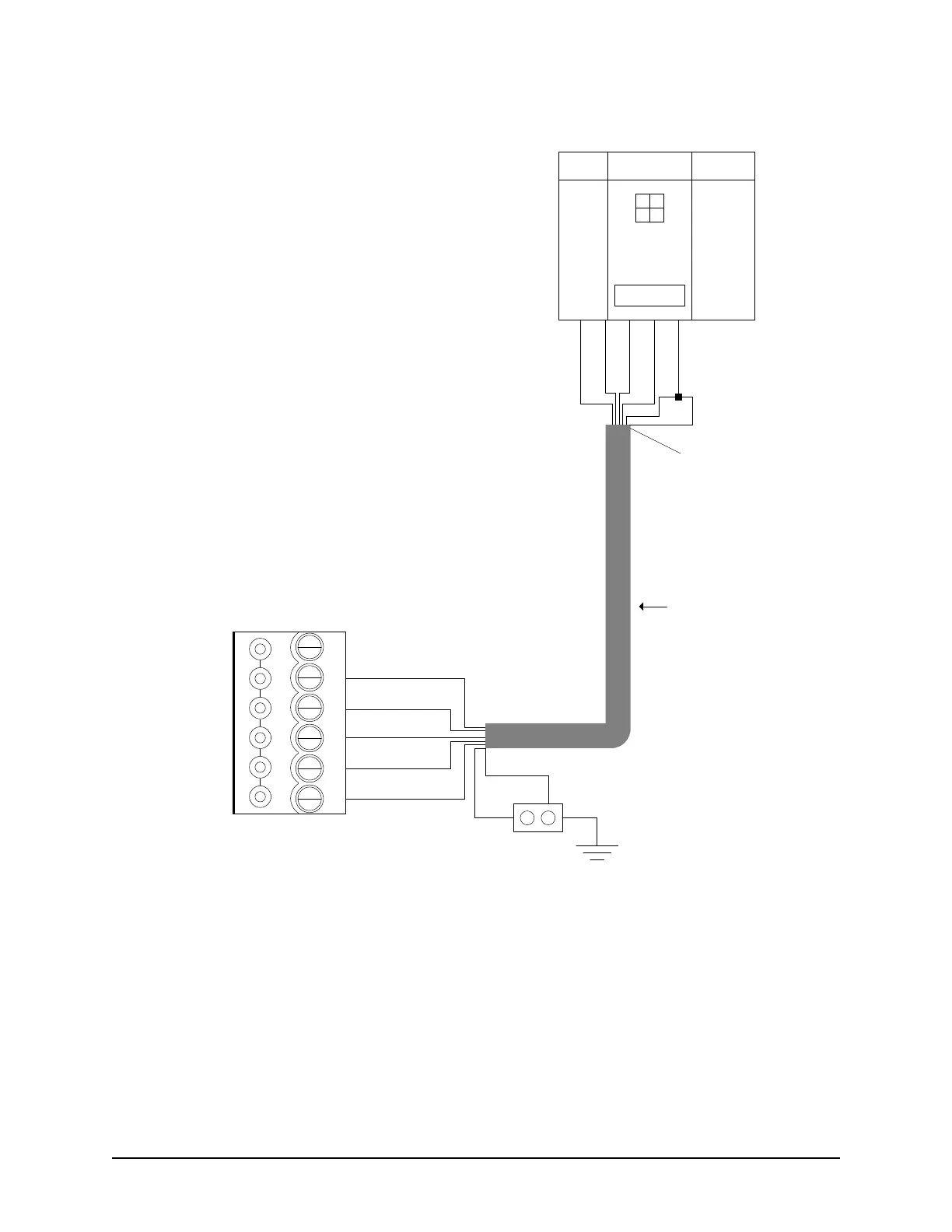

Figure
59
–
Indala PX6
10 Wiring
Shield not
connected.
Isolate with
electrical tape.
6 conductors -
shielded 22 AWG
Maximum 500 ft
(152.4 m)
Shield
ACU Ground Lug
D1 (White)
D0 (Green)
Red
GND (Black 2)
Brown
CA150 Reader Terminal
LED
D1
WHT
D0
GRN
PWR
RED
GND
BLK
C1
(BEEP)
Blue (Beeper) used
for pre-alert
otherwise isolate
and tape back.
D1 (White)
D0 (Green)
Red
Black 1 & 2
Brown
Black 1
PX 610
12 VDC
KI-00374E-07-11
