Keyscan CA150 User Manual

Keyscan Inc. A Member of the Kaba Group – CA150 Rev. B Installation Guide (07.15)
55

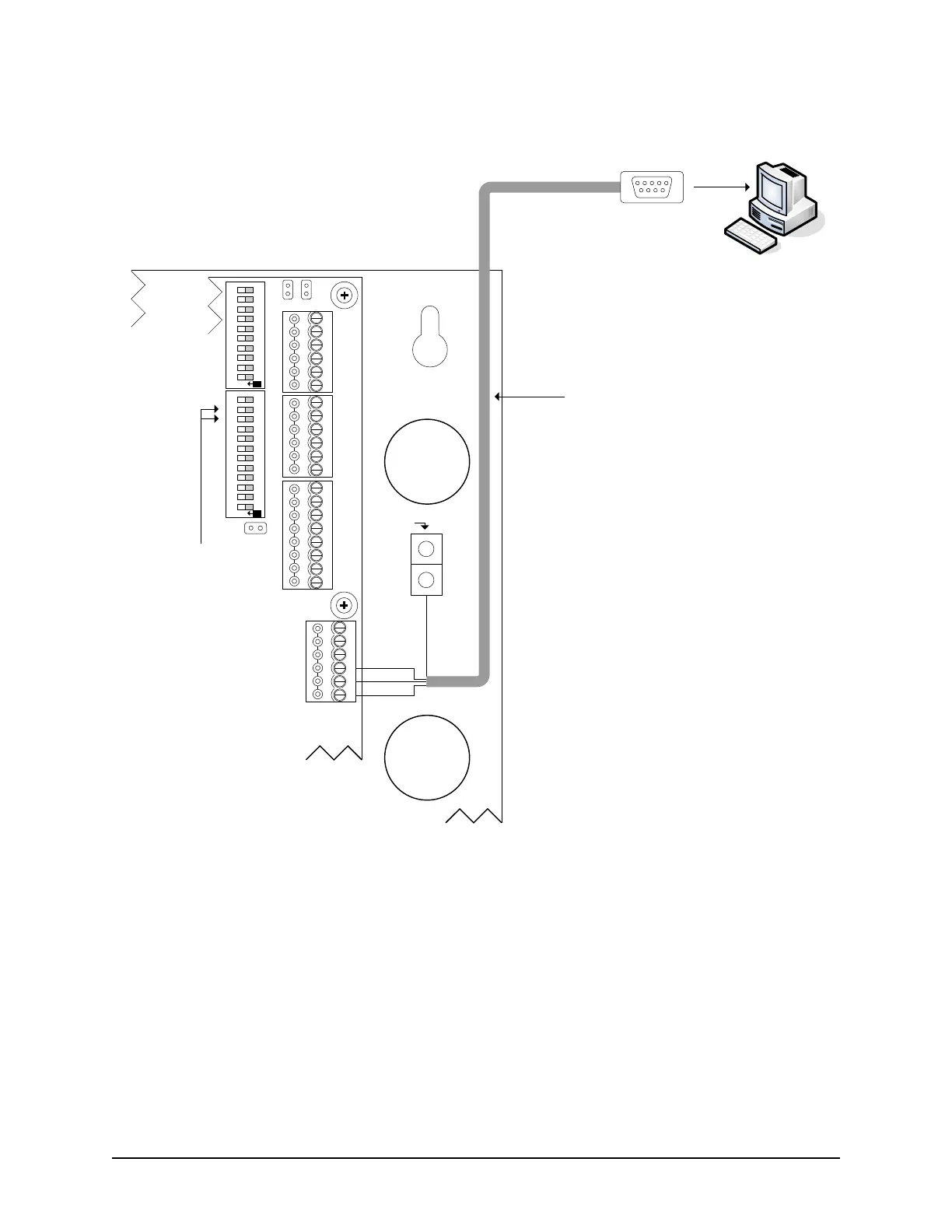

Figure 32 – Communication – RS-232 Direct Serial
RS-232
CTS
DTR
DCD
RD
TD
GND
Green
Black
Red
Shield*
Ground
Lug
RS-232
5 conductors 22AWG
shielded cable
Maximum - 20 feet (6 m)
Cut View
CA150
with right cover removed
DOOR RTE
AUX1 AUX2 READER 2 READER 1
* Ensure that the shield is
insulated and connected to the
ground lug. Keyscan suggests
Alpha PVC 10516 - #16 clear
tubing or a comparable tubing to
insulate the shield. Do not connect
the shield to GND on a
communication terminal block.
to Com Port on PC
with Communication
Manager
`
DIP Switches
S1.11 = OFF
S1.10 = OFF
KI-00351E-02-14
S1
SYS. RST.
RDR/SUPV. CONFIG.SYSTEM CONFIG.
ON
6
7
8
9
10
2
3
4
5
1
6
7
8
9
10
2
3
4
5
1
11 12
ON
