Keyscan CA150 - Figure 61 - Indala PXK 501 Wiring

Keyscan Inc. A Member of the Kaba Group – CA150 Rev. B Installation Guide (07.15)
91

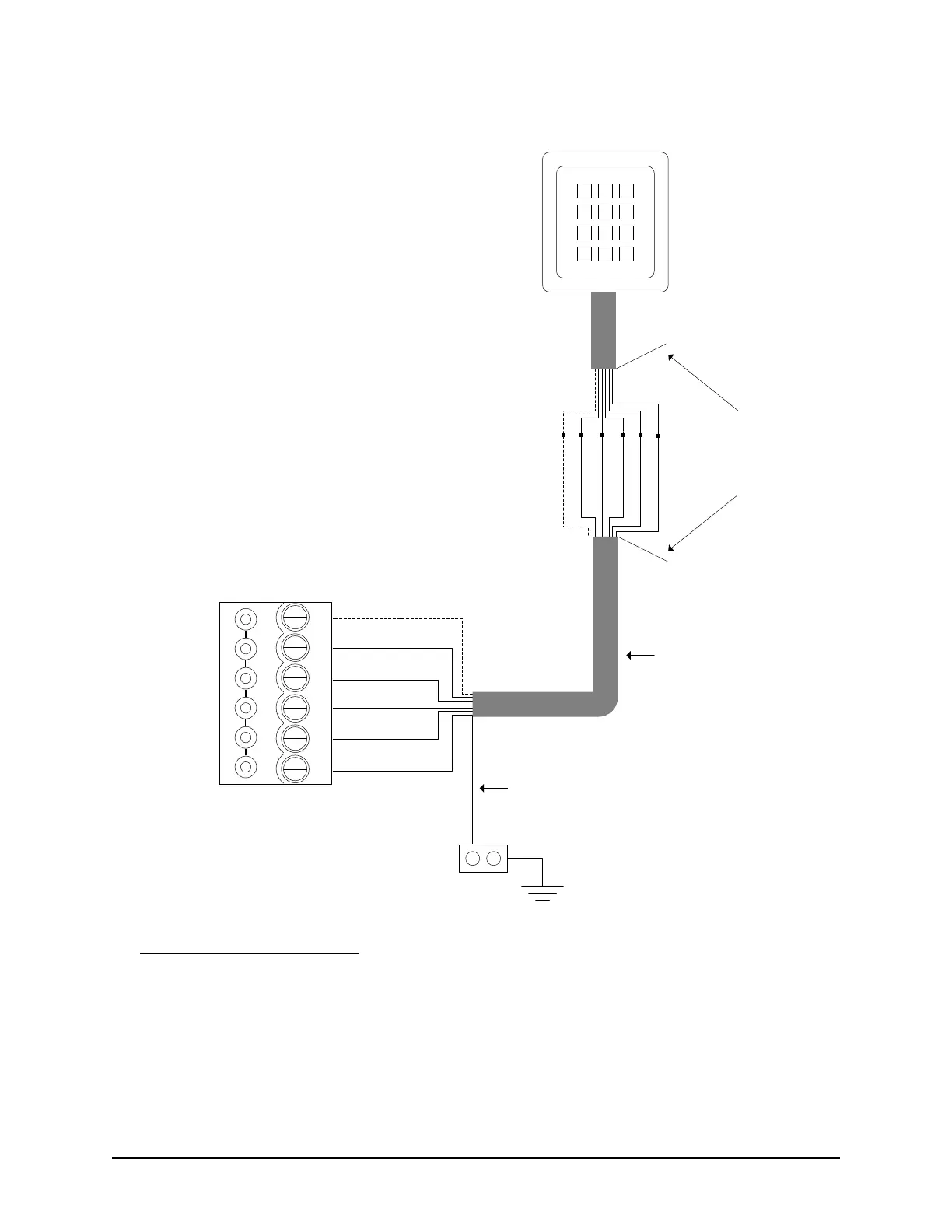

Figure 61 – Indala PXK 501 Wiring
Note on Indala PXK 501 Wiring
Reader/Keypad/LED ordered as 8 bit burst – example FP5061B-8 Bit Burst (Red only)
LED (Brown) D1 (White) D0 (Green)
PWR (Red)
GND (Black)
Shields not
connected.
Isolate with
electrical tape.
6 conductors -
shielded 22 AWG
Maximum 500 ft
(152.4 m)
Shield
ACU
Ground
Lug
D1 (White)
D0 (Green)
PWR (Red)
GND (Black)
LED (Brown)
CA150 Reader Terminal
Blue used for pre-alert
otherwise isolate and tape back.
Isolate and tape
back any unused
wires.
Pre-alert (Blue)
Pre-alert (Blue)
LED
D1
WHT
D0
GRN
PWR
RED
GND
BLK
C1
(BEEP)
1
4
7
*
2
5
8
0
3
6
9
#
