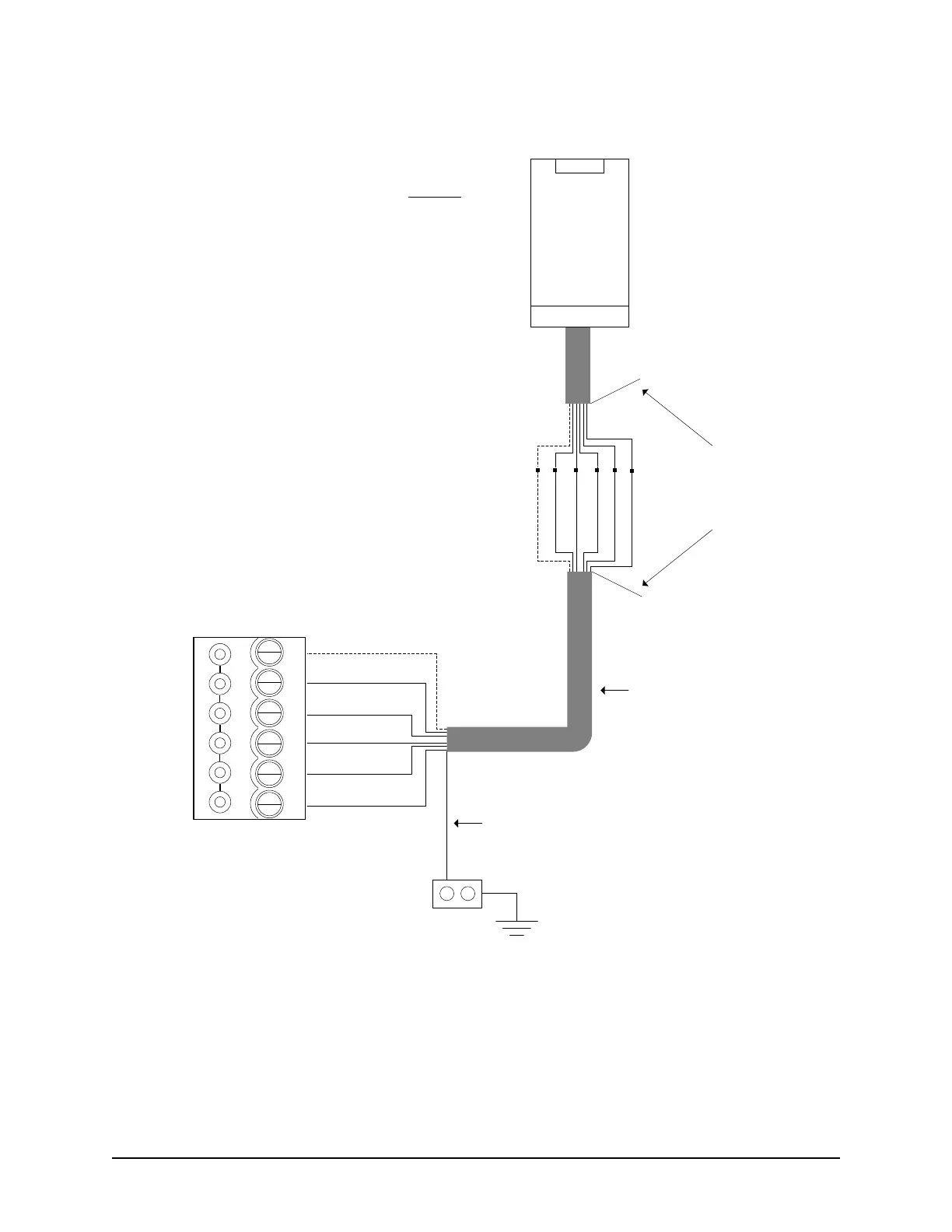

Figure 54 – HID iClass R10 Series
D1 (White) D0 (Green)
PWR (Red)
GND (Black)
Shields not
connected.
Isolate with
electrical tape.
6 conductors shielded 22 AWG
Maximum 500 ft (152.4 m)
Shield
ACU
Ground
Lug
D1 (White)
D0 (Green)
PWR (Red)
GND (Black)
LED (Orange)
CA150 Reader Terminal
Isolate and tape back any
unused conductors.
Pre-alert (Yellow)
LED
D1
WHT
D0
GRN
PWR
RED
GND
BLK
C1
(BEEP)
LED (Orange)
Pre-alert (Yellow)
Yellow (Beeper) used for pre-alert
otherwise isolate and tape back.
KI-00512E-11-13
Note - If Pre-alert is connected,
SE multiclass reader may not
transmit HID 125 kHz-compatible
card during the pre-alert beep.
Versions
- KR10L
- KR10SE
- KRP10L
- KRP10SE
- R10HGOV
- RP10HGOV
