S2.9 & S2.10 System Software Mode DIP Switches
DIP switches S2.9 and S2.10 select the Keyscan software application that is currently installed on the
PC/server operating the CA150 control unit. Refer to Table 6 – System Software Mode DIP Switch on page 48
to configure the control board for the appropriate Keyscan software application.
Important
After the control board has been in operation, if the system software mode DIP switches are altered, you
must perform a clear memory on the control board. Procedures are outlined on page 49 .
The system mode jumpers do not require modifications for a software version upgrade.

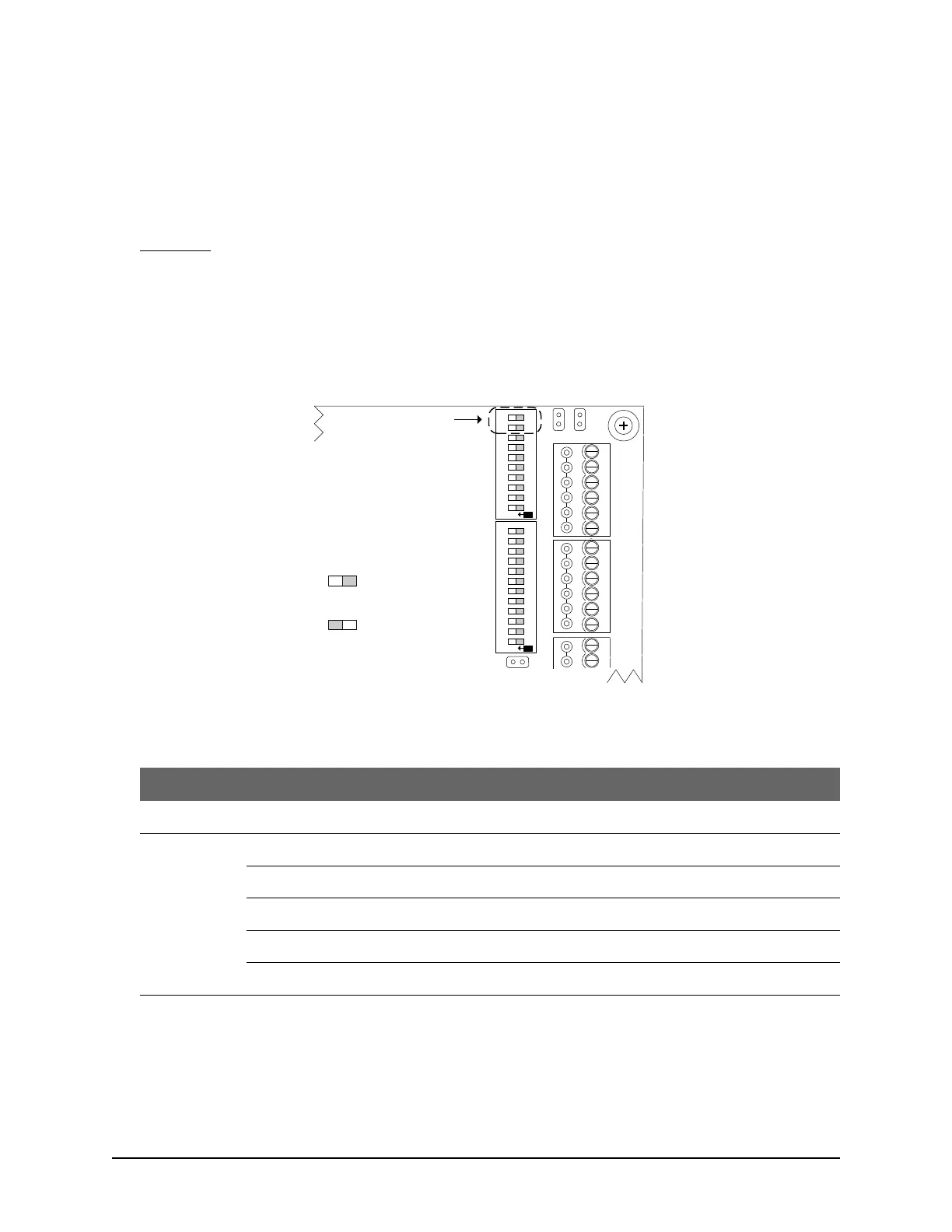

Figure 25 - System Software Mode DIP Switches S2.9 & S2.10
Table 6 – System Software Mode DIP Switch Settings
S2 Switch #
Settings
Keyscan Software
Version
S2.9 & S2.10
Off=0 / On=1
System Software Mode
S2.9
S2.10
0
0
System VII
7.0.14 or higher
0
1
Vantage
8.1.13 or higher
1
0
Future use
1
1
Aurora (requires firmware 9.20 or higher)
1.0.1.0 or higher
AUX2
-
+
READER 1
READER 2
C1
(BEEP)
LED
D1
WHITE
D0
GREEN
PWR
RED
GND
BLK
C1
(BEEP)
LED
D1
WHITE
D0
GREEN
PWR
RED
GND
BLK
J6
J4
J1
RDR
RST.
CLR
MEM.
SYS.
RST.
Location of System
Software Mode DIP
Switches S2.9 to S2.10
Cut view with right cover
removed.
KI-00343E-02-14
RDR/SUPV. CONFIG.SYSTEM CONFIG.
ON
6
7
8
9
10
2
3
4
5
1
6
7
8
9
10
2
3
4
5
1
11 12
ON
S1
S2
Switch Off
Off = 0
Switch On
On = 1
Switch Settings
