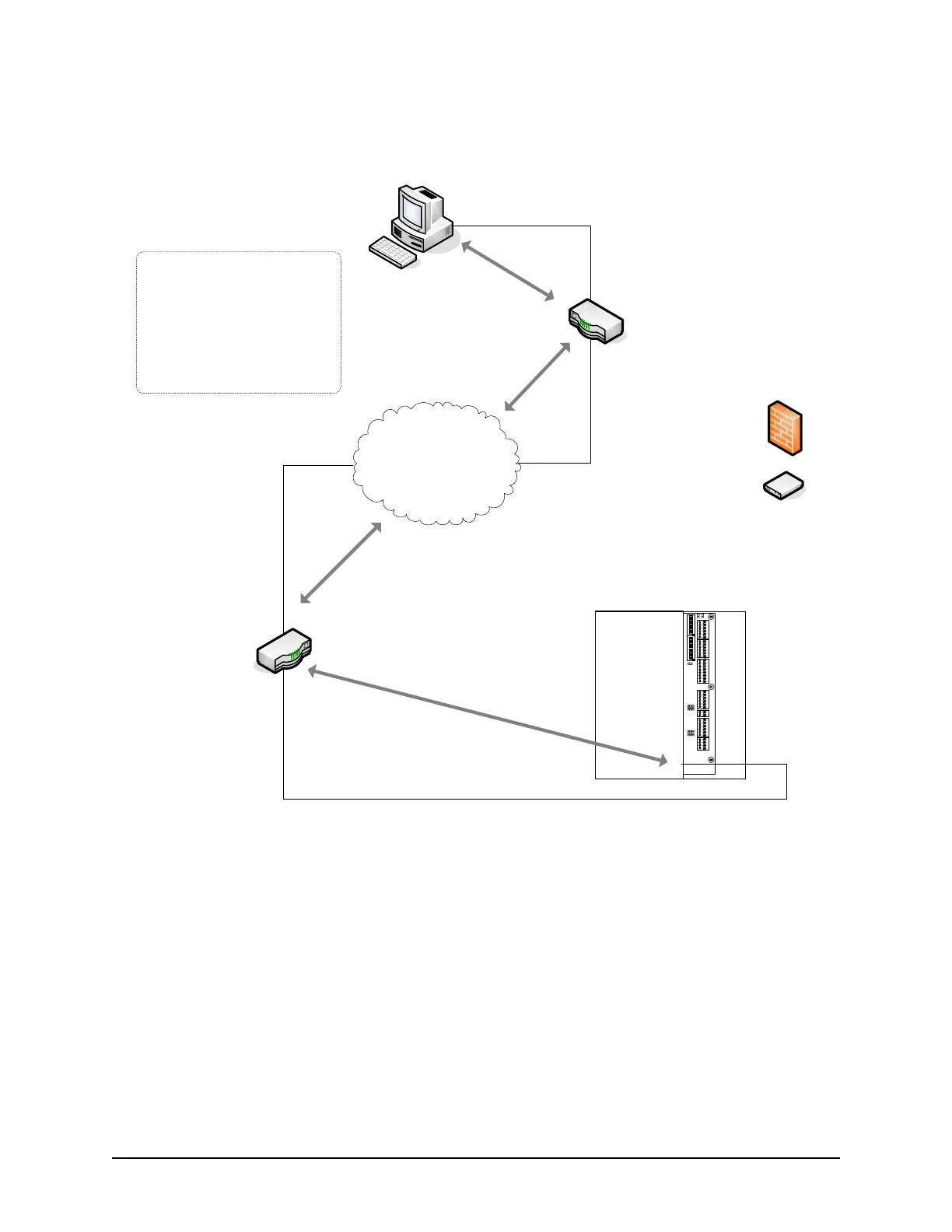

Figure 63 - Example of Internet/Intranet/WAN with Router or End Point External IP
Host Location
Remote Access
Control Location
Internet/Intranet/WAN
CA150 Encrypted Ethernet
Module
Internal Static IP: 172.16.0.2
Gateway: 172.16.0.1
Port: 3001
Encryption Key: 12345678
12345678 12345678 12345678
CA150 Control Board
Reverse Network Programming:
- Host Router/EndPoint
External IP: 24.48.52.134
- Port: 3001
(May also include an alternate
host router external IP address if
available)
PC/Server with RN Encrypted Communication Manager
- Communication manager runs as a service
- Internal IP 192.168.0.2
- Encryption key: 12345678 12345678 12345678 12345678
Note on Routers & Switches
Ensure that routers and switches
are configured for inbound and/or
outbound communication between
the PC at the host location and the
NETCOM6/control board at the
remote location.
Remote Router
Internal IP: 172.16.0.1
External IP: 23.58.59.64
Host Router/End Point*
Internal IP: 192.168.0.1
External IP: 24.48.52.134
Port Forward - 3001
*End Point
This may be a firewall,
DSL/cable modem or
other device with the
external IP that is
exposed to the public
side of the network at
the host location.
IP Addresses
The IP addresses in this illustration
are merely shown as examples.
KI-00459E-02-14
J
7
CA150 with
Encrypted
Ethernet
Module
