Keyscan Inc. A Me
mber of the Kaba Group
–
CA150 Re
v. B Installation Gu
ide (07.15)
66

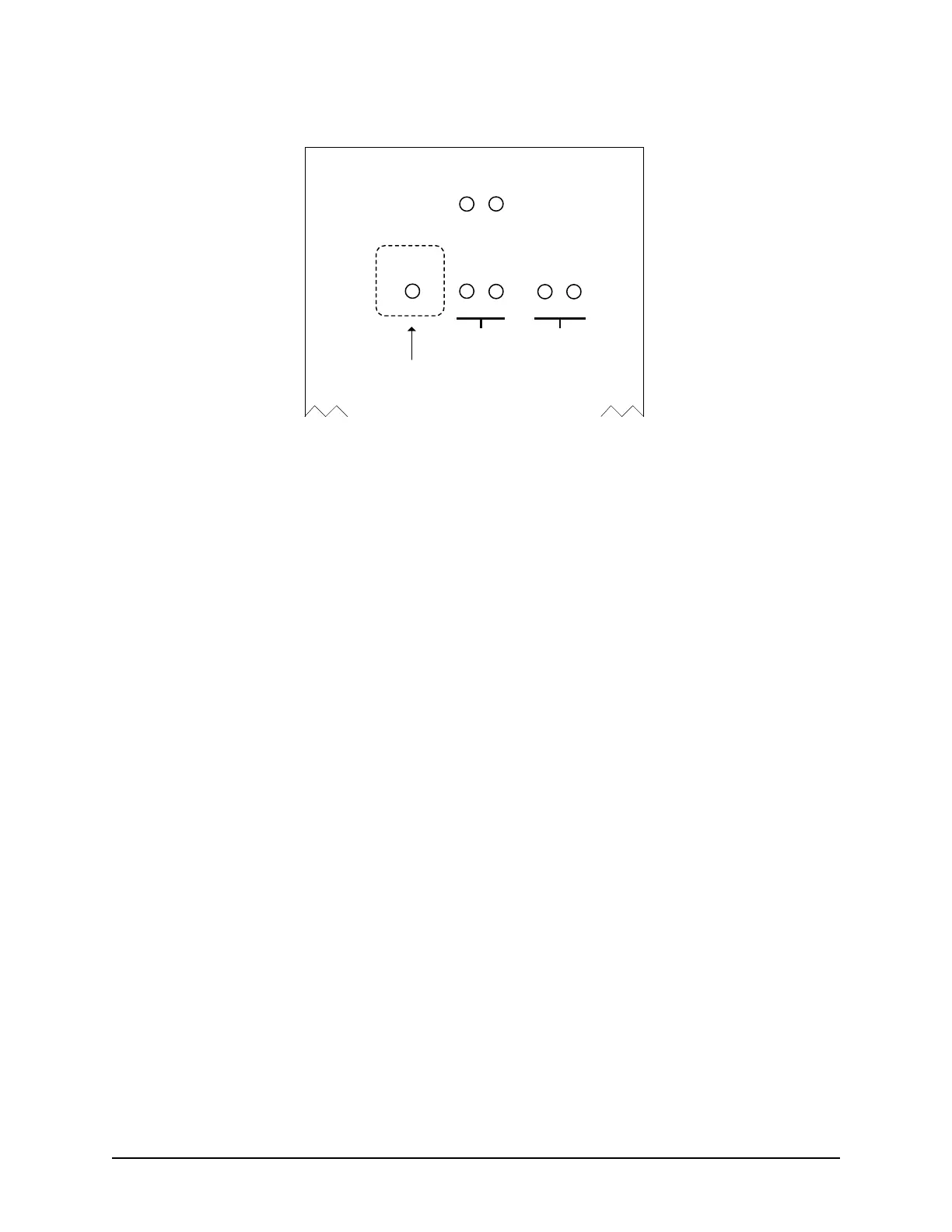

Figure
40
- Locatio
n of System
S
tatus L
ED
CARD
BITS
10s
1s
SYSTEM
STATUS
COMMUNICATION
STATUS
TD 1
RD 1
TD 2
RD 2
SYSTEM
INPUTS/
RS-485
(TB7)
SERVER
RS-232 (TB5)
ETHERNET
Cut View
CA150
Left Cover
System
Status
LED
KI-00359E-05-12
65
67
Table of Contents
Default Chapter
4
Table of Contents
4
List of Figures
6
Foreword
8
About this Guide
8
Electrical Precautions
8
Tools
8
Software Requirements
8
About Powering the CA150
9
Program On-Board Ethernet Module
9
Configure the CA150 for Reverse Network Communication - License Required
9
Locate & Mount the CA150
11
Figure 1 - Typical Door Layout
11
Mounting Guidelines
12
Figure 2 - Remove the Right Cover
12
Figure 3 - Mounting the CA150
13
Figure 4 - CA150 Mount - Side View
14
Door Hardware & Readers
15
Door Lock Hardware
15
Door Contacts, Exit Buttons, Auxiliary Inputs
16
Figure 5 - Door Contacts, Exit Buttons, Pirs, & Auxiliary Inputs
16
Readers
17
Figure 6 - Typical Door Reader Connection
17
Cables & Grounding
18
Grounding
18
Figure 7 - Grounding Access Control Units and Cables
20
Terminate Wiring at the ACU
21
Poe
21
Output Relays
21
Figure 8 - Terminate Magnetic Lock under 500 Ma - Fail Safe
23
Figure 9 - Terminate Magnetic Lock over 500 Ma - Fail Safe
24
Figure 10 - Terminate Door Strike - 500 Ma or Less - Fail Safe
25
Figure 11 - Terminate Door Strike - over 500 Ma - Fail Safe
26
Figure 12 - Terminate Door Strike - Less than 500 Ma - Fail Secure
27
Figure 13 - Terminate Door Strike - over 500 Ma - Fail Secure
28
Terminate Input Wiring
29
Figure 14 - Terminate Input Wiring - Door Inputs (Contacts)
29
Figure 15 - Terminate Input Wiring - RTE Push Button
30
Figure 16 - Terminate Input Wiring - RTE PIR Motion Sensor
31
Figure 17 - Terminate Input Wiring RTE - PIR & Push Button
32
Figure 18 - Terminate Input Wiring - AI/SI Inputs
33
Terminate Reader Wiring at ACU
34
Figure 19 - Terminate Reader Wiring
34
Terminate Auxiliary Outputs with Hardware/Alarms
35
Figure 20 - Terminate Auxiliary Output
35
DIP Switch & Jumper Settings
36
System Configuration - DIP Switches S1.1 - S1.12
36
Figure 21 - System Configuration DIP Switches S1.1 - S1.12
38
Reader Configuration - DIP Switches S2.1 - S2.6
40
26-Bit Waiver of Liability
40
Advantage of Keyscan 36-Bit Proprietary Wiegand Format
40
Security Levels
40
Card Number Formats
40
Supported Keypad Wiegand Outputs
41
Figure 22 - Location of Reader Format DIP Switches S2.1 - S2.6
42
Figure 23 - Location of Wiegand Card Bit Counter Leds
46
Supervision Mode DIP Switches S2.7 & S2.8
47
Figure 24 - Supervision Mode DIP Switches S2.7 & S2.8
47
System Software Mode - DIP Switches S2.9 & S2.10
48
Figure 25 - System Software Mode S2.9 & S2.10 Location
48
Restore Default Settings - Jumper J1 Clear Memory
49
Figure 26 - Restore Default Settings (Clear Memory) J1 Location
49
System Reset - J6
50
Door & AUX Outputs - Powered/Unpowered
50
Figure 27 - Location of System Reset Jumper J6
50
Accessibility Output Relay
51
Figure 28 - Location of Door & AUX Relay Powered/Unpowered Jumpers
51
Figure 29 - Aux/Accessibility Switch S1.8
51
Figure 30 - Accessibility Output Relay Connections
52
Communication
53
Single Control Unit Communication Only
53
Keyscan RS-232 Data Cable
53
Figure 31 - RS-232 Data Cable Connections
54
Figure 32 - Communication - RS-232 Direct Serial
55
Figure 33 - Communication - USB Adaptor/Pc
56
Figure 34 - Communication - Ethernet
57
Power-Up & Test Voltages
58
System Power-Up
58
Figure 35 - Poe Connections
60
Figure 36 - Power Supply Wiring
61
Control Board Voltage Test Points
62
Figure 37 - Control Board Test Points - Voltages
62
Test Points - Communication Terminals
63
Figure 38 - Control Board Communication Test Points
63
Diagnostics
64
Communication Leds
64
System Status LED
65
Figure 39 - Communication Status Leds
65
Figure 40 - Location of System Status LED
66
Keyscan / HID Readers
67
Power Specifications
67
Figure 41 - Keyscan K-PROX2 (125 Khz)
70
Figure 42 - Keyscan K-VAN Proximity Reader (125 Khz)
71
Figure 43 - Keyscan K-KPR Keypad / Proximity Reader (125 Khz)
72
Figure 44 - Keyscan K-SMART Reader
73
Figure 45 - HID-5395 Wiring
74
Figure 46 - HID 5365 / 6005 Wiring
75
Figure 47 - HID 5455 Wiring
76
Figure 48 - HID 5375 Wiring
77
Figure 49 - HID 5355KP Wiring
78
Figure 50 - HID Iclass KEYR10
79
Figure 51 - HID Iclass KEYR40
80
Figure 52 - HID Iclass KEYRW400
81
Figure 53 - HID Iclass KEYRK40
82
Figure 54 - HID Iclass R10 Series
83
Figure 55 - HID Iclass R15 Series
84
Figure 56 - HID Iclass R40 Series
85
Figure 57 - HID Iclass RK40 Series
86
Indala Readers
87
Power Specifications
87
Figure 58 - Indala PX 603 and PX 605 Wiring
88
Figure 59 - Indala PX610 Wiring
89
Figure 60 - Indala PX 620 Wiring
90
Figure 61 - Indala PXK 501 Wiring
91
Program On-Board Ethernet Module
92
Before You Start Programming
92
Figure 62 - Temporary Connection for Programming the Ethernet Module
93
Configure CA150 for Reverse Network Communication
96
About Reverse Network Communication
96
Installation Coordination - Host & Remote Locations
96
Figure 63 - Example of Internet/Intranet/Wan with Router or End Point External IP
98
Figure 64 - LAN with no Public Exposure
99
Before You Start
100
Set System Configuration DIP Switches
101
Set IP Address on Access Control Board
101
Figure 65 - Location of System Configuration DIP Switches
101
Figure 66 - Temporary Programming Connection for Reverse Network
102
Program the CA150 On-Board Ethernet Module
103
CA150B Quick Reference
107
Figure 67 - CA150B Control Board
107
CA150B Specifications
109
Warranty
112
Index
113
