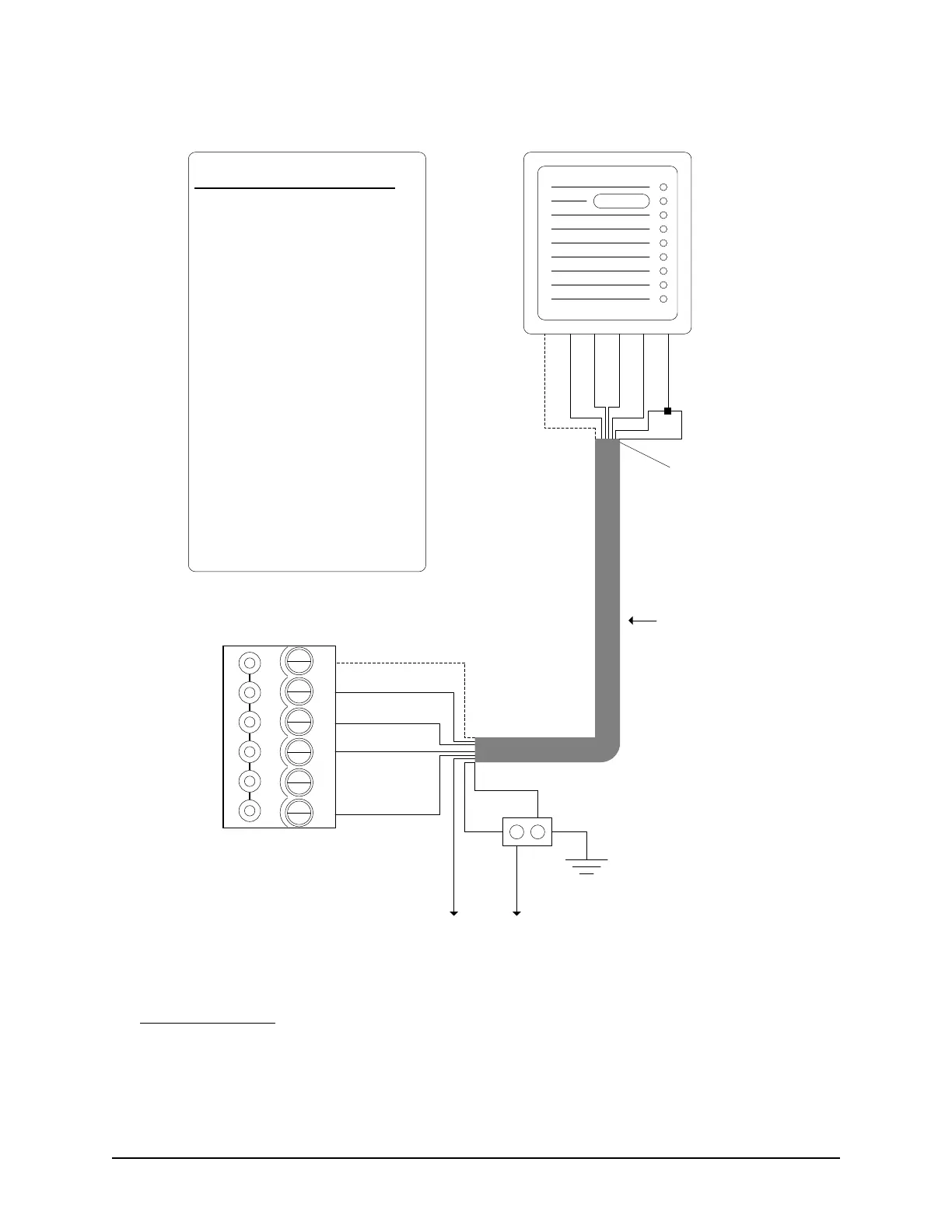

Figure 48 – HID 5375 Wiring
Notes on HID 5375
HID 5375 operates at 12 VDC or 24 VDC. Refer to HID literature for correct jumper settings. If configured
for 12 VDC, do not connect to 24 VDC power supply, otherwise damage to the reader circuit board will
result.
Shield not
connected.
Isolate with
electrical tape.
6 conductors -
shielded 18 AWG
Maximum 500 ft
(152.4 m)
Shield
ACU Ground Lug
D1 (White)
D0 (Green)
Red
+
VDC
GND (Black 2)
LED (Orange)
CA150 Reader Terminal
Pre-alert (Yellow)
LED
D1
WHT
D0
GRN
PWR
RED
GND
BLK
C1
(BEEP)
Note - If Pre-alert
is connected, the
reader cannot
read any HID 125
kHz-compatible
card during the
pre-alert beep.
Yellow (Beeper)
used for pre-alert
otherwise isolate
and tape back.
Pre-alert
(Yellow)
D1 (White)
D0 (Green)
Red
Black 1 & 2
LED (Green)
Black 1
Black
to separate
power
supply
HID-5375 – DIP Switches/Jumpers
SW5
- switches 1 & 2 ON
- switches 3 to 8 OFF
SW2
- switch 1 ON
- switches 2 to 8 OFF
SW1
- switches 1 to 4 ON
- switches 5 to 8 OFF
P4
- jumper ON pins 1 & 2
P3
- jumper ON pins 1 & 2
P2
- jumper ON pins 1 & 2
P1
- jumper on pins 2 & 3
KI-00367E-07-11
