Keyscan CA150 - Figure 41 - Keyscan K-PROX2 (125 Khz)

Keyscan Inc. A Member of the Kaba Group – CA150 Rev. B Installation Guide (07.15)
70

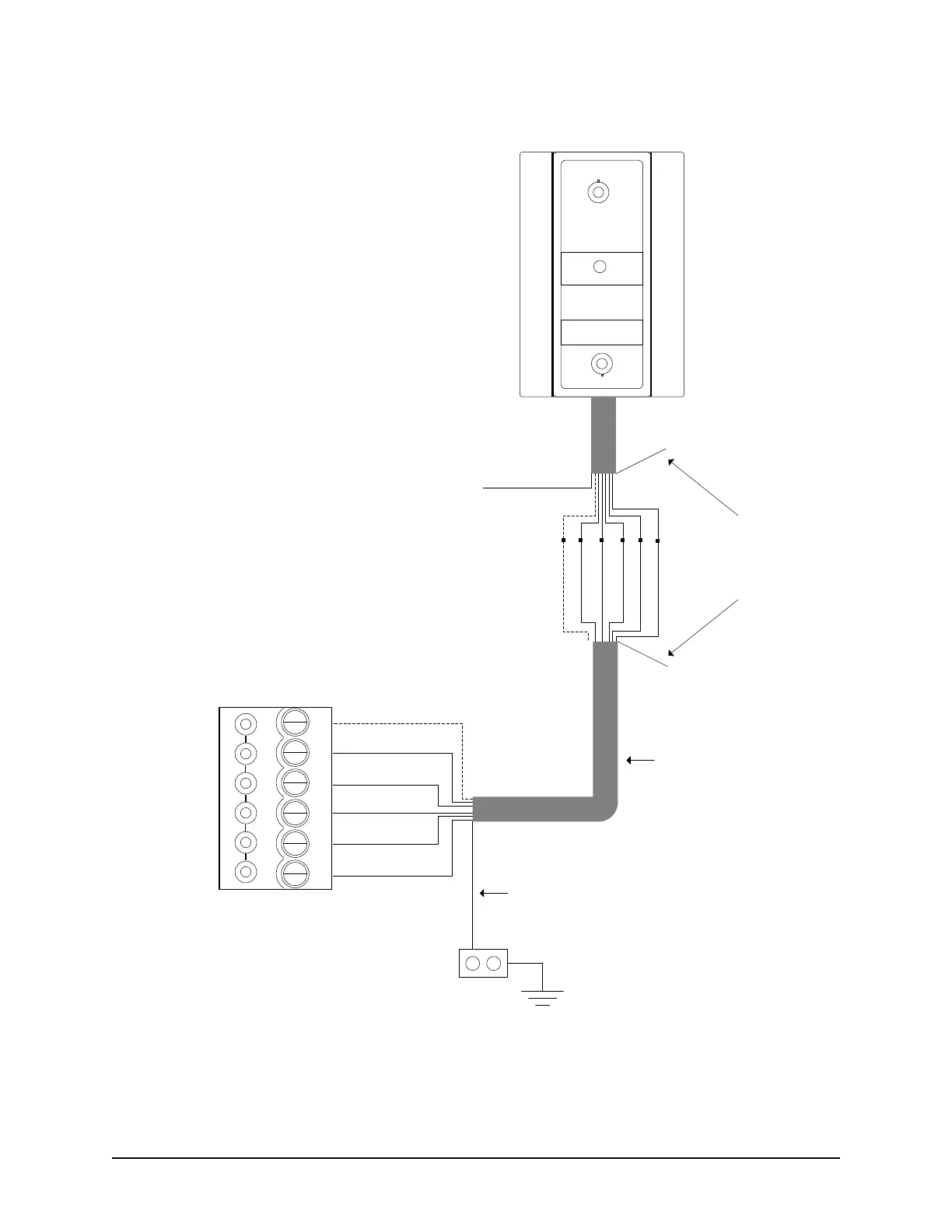

Figure 41 – Keyscan K-PROX2 (125 kHz)
LED (Brown) D1 (White) D0 (Green)
PWR (Red)
GND (Black)
Shields not
connected.
Isolate with
electrical tape.
6 conductors -
shielded 22 AWG
Maximum 500 ft
(152.4 m)
Shield
ACU
Ground
Lug
D1 (White)
D0 (Green)
PWR (Red)
GND (Black)
LED (Brown)
CA150 Reader Terminal
Blue used for pre-alert
otherwise isolate and tape back.
Orange not used.
Isolate and tape
back.
KEYSCAN
Pre-alert (Blue)
Pre-alert (Blue)
K-PROX2 with
ABS wall switch
plate.
LED
D1
WHT
D0
GRN
PWR
RED
GND
BLK
C1
(BEEP)
Orange
KI-00360E-07-13
