Keyscan CA150 User Manual

Keyscan Inc. A Member of the Kaba Group – CA150 Rev. B Installation Guide (07.15)
85

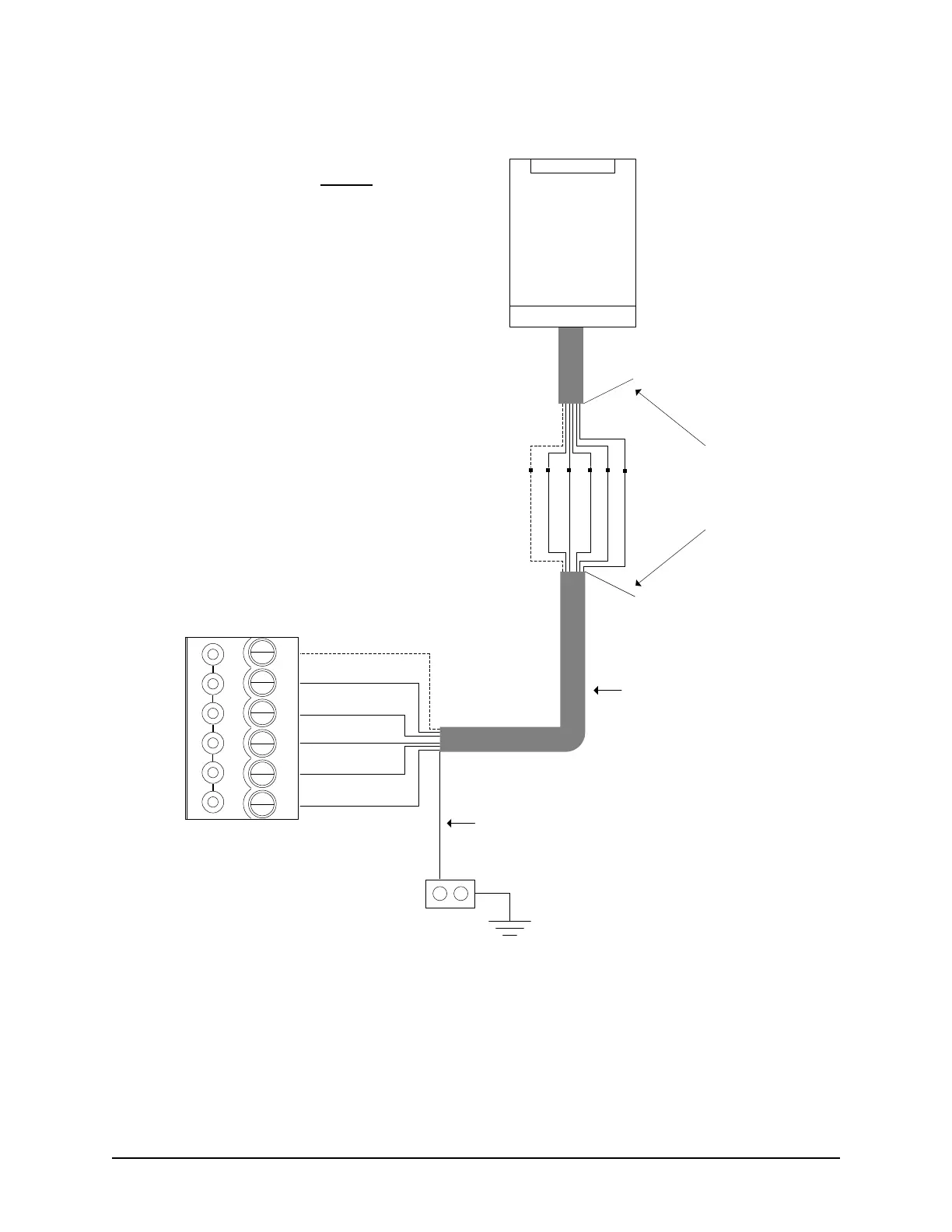

Figure 56 – HID iClass R40 Series
D1 (White) D0 (Green)
PWR (Red)
GND (Black)
Shields not
connected.
Isolate with
electrical tape.
Shield
ACU
Ground
Lug
D1 (White)
D0 (Green)
PWR (Red)
GND (Black)
LED (Orange)
CA150 Reader Terminal
Isolate and tape back any unused
wires.
Pre-alert (Yellow)
LED
D1
WHT
D0
GRN
PWR
RED
GND
BLK
C1
(BEEP)
LED (Orange)
Pre-alert (Yellow)
Yellow (Beeper) used for pre-alert
otherwise isolate and tape back.
6 conductors – shielded 22 AWG
Maximum 500 ft (152.4 m)
KI-00514E-11-13
Versions
- KR40L
- KR40SE
- KRP40L
- KRP40SE
- R40HGOV
- RP40HGOV
Note - If Pre-alert is connected,
SE multiclass reader may not
transmit HID 125 kHz-compatible
card during the pre-alert beep.
