Digital Up-Conversion 4
M8190A User’s Guide 141
4.3.2.2.2 Set Carrier Frequency With Known Phase
Used basic commands:
Carrier Frequency
Reset Phase
optional: [Amplitude]

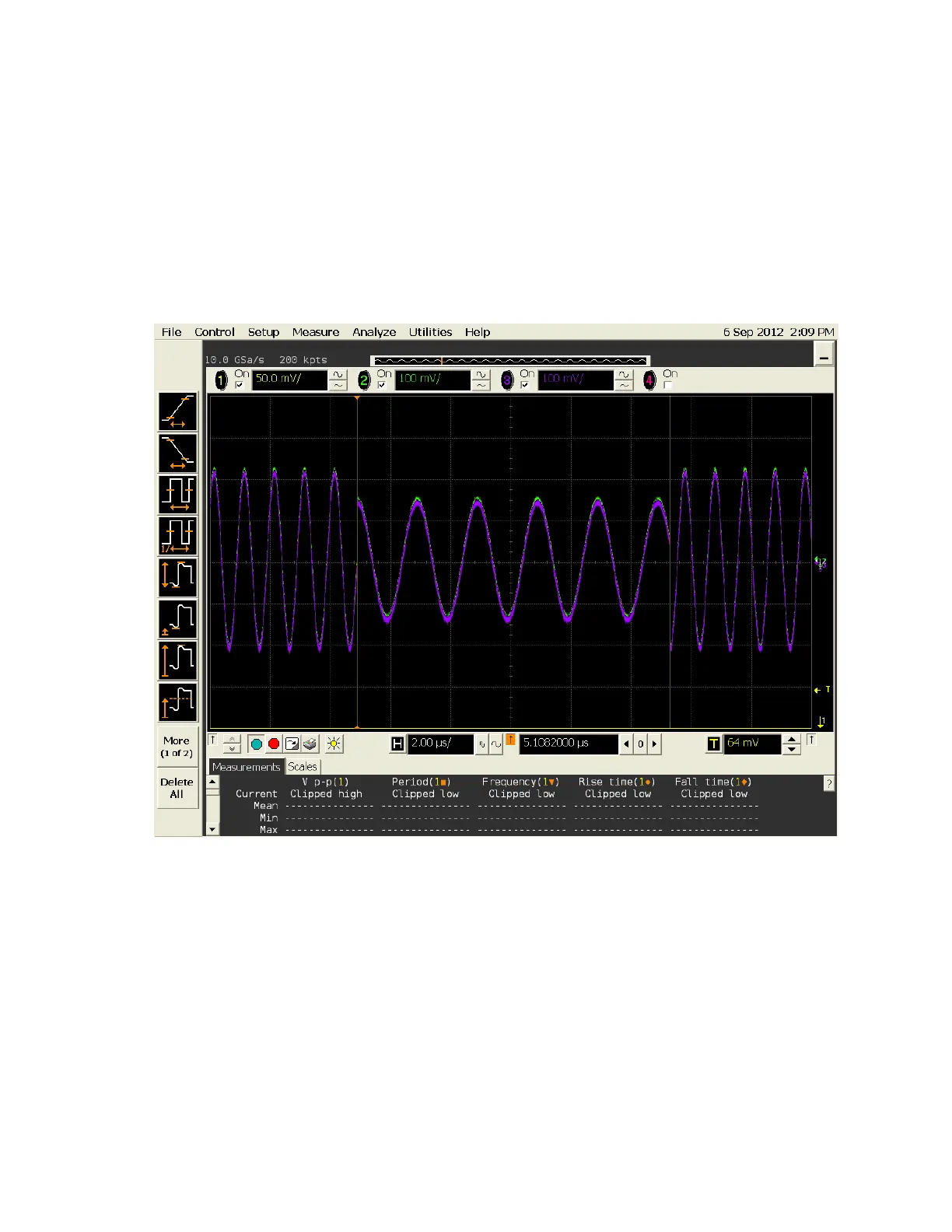

The following picture shows again a frequency and amplitude change. Additionally to
the previous one, the phase is also modified. The first change sets the phase to 0, the
second to 0.5 cycles.
Figure 4-8: Frequency and amplitude changes
