4 Digital Up-Conversion
142 M8190A User’s Guide
4.3.2.2.3 Start Frequency Sweep
Used basic commands:
Carrier Frequency
optional: [Sweep Rate]
optional: [Amplitude]
Sweep Run

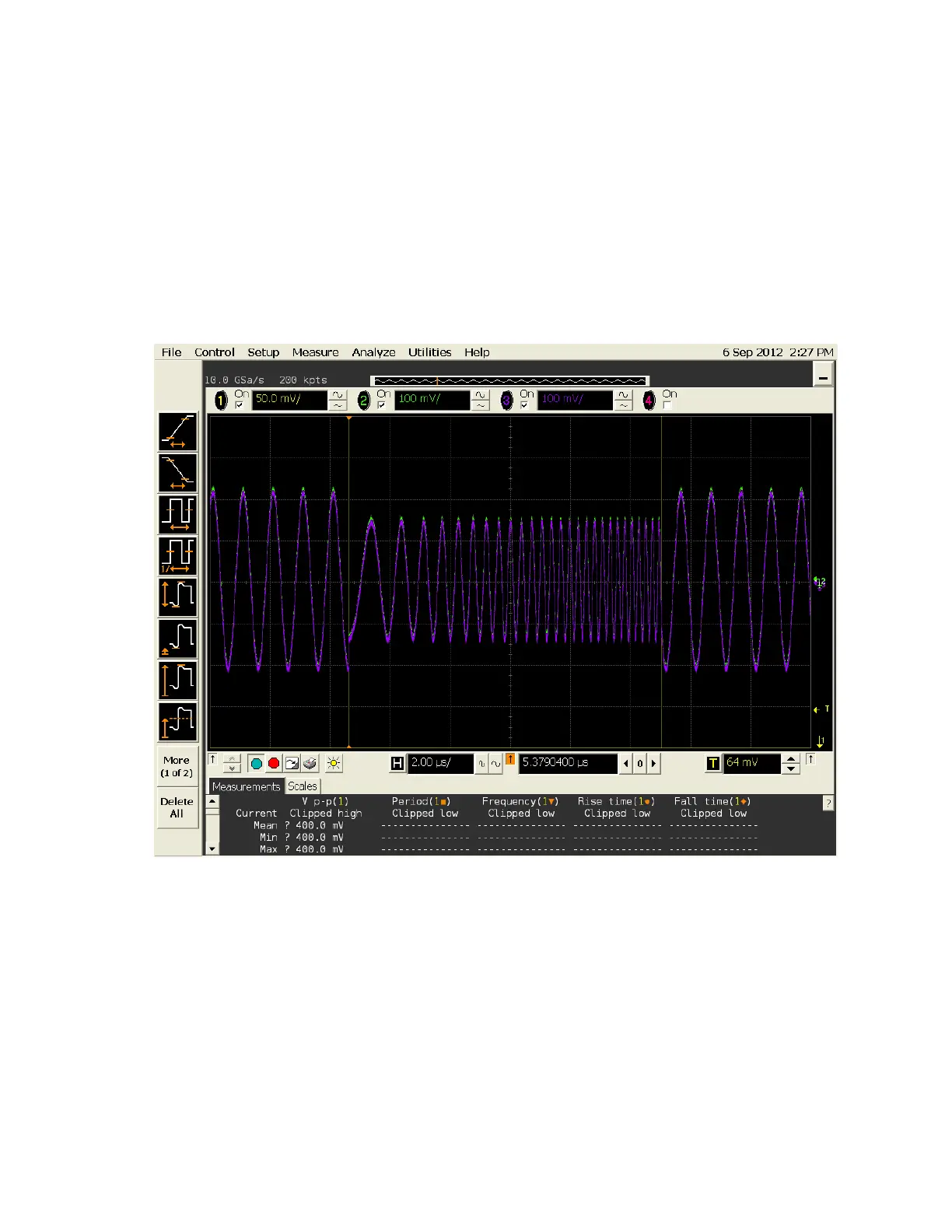

The following picture shows a start and stop of frequency sweep. Additionally, the
amplitude is changed, as well. Together with the stop, the frequency is set back to the
start value.
Figure 4-9: Start and stop of frequency sweep
