4.3.2.2.4 Start Frequency Sweep Known Phase
Used basic commands:
Carrier Frequency
optional: [Sweep Rate]
optional: [Amplitude]
Phase Reset
Sweep Run
In the following example, the sweep is started with a well-defined phase value of zero.

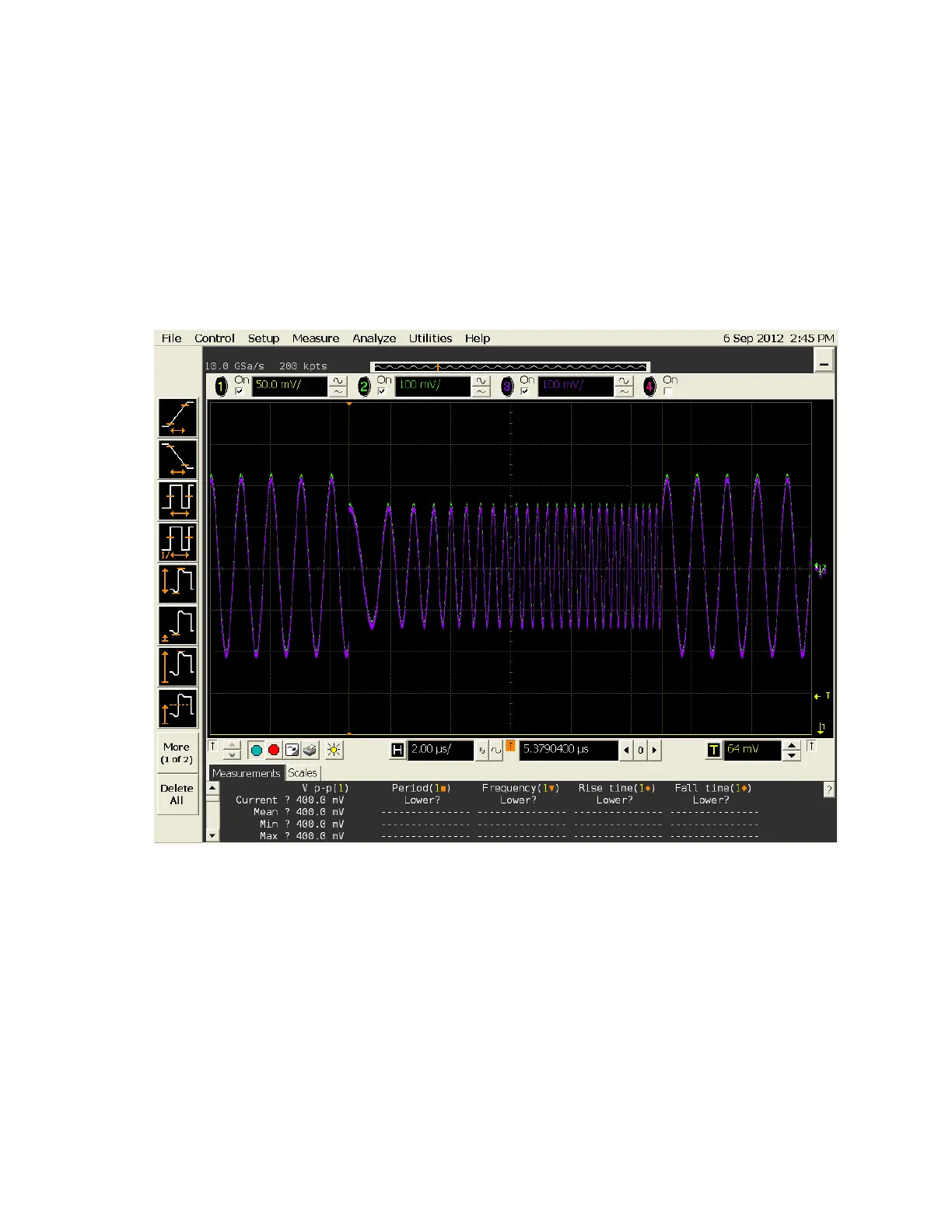

Figure 4-10: Frequency sweep
